€109.90 + taxes

€134.08 Tax included

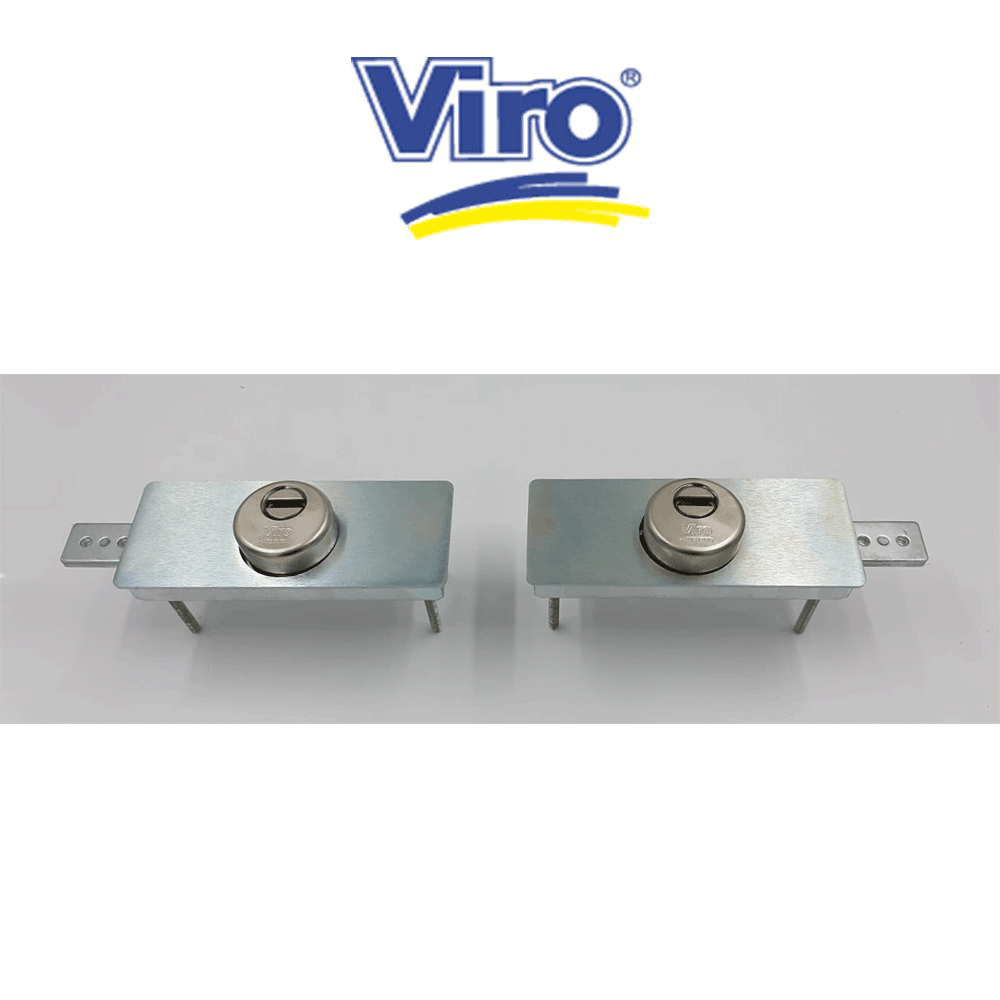

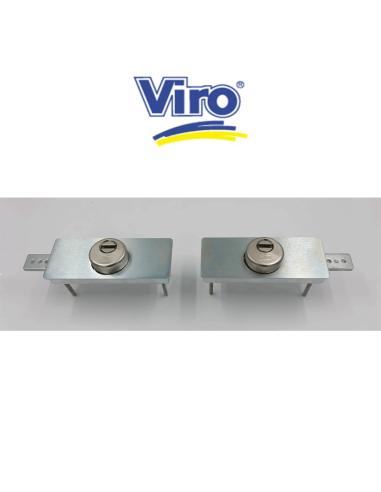

Armored side locks in pairs right and left for shutters with security rosette and predisposition for profile cylinder without cylinder.



Armored side locks in pairs for Viro shutters art. 8272/8273


Armored side locks in pairs right and left for shutters with security rosette and predisposition for profile cylinder without cylinder.


The lock is interchangeable with the most common roller shutter locks already installed by simply enlarging the cylinder hole to accommodate the security rosette. These locks, thanks to the reinforced case, the 7 mm thick deadbolt, the tear-proof shape of the rosette and the anti-drill rotating plate, represent the ideal solution to combine maximum anti-burglary resistance and great flexibility in the choice of cylinder.




Viro lock




Technical features:


Structure and internal components in galvanized steel, thickness increased by 2 mm compared to normal shutter locks.
Fixing hole spacing identical to the most common roller shutter locks on the market
External protection plate in 2.5 mm thick galvanized steel which, after applying the profile cylinder, joins firmly to the lock case and houses the security rosette, preventing it from being torn off.
Solid bolts made of galvanized steel sheets with an overall thickness of 7 mm with 2 throws and a total stroke of 24 mm
Security rosette in case-hardened, copper-plated and nickel-plated tempered steel with rotating anti-burglary and anti-drill plate in case-hardened, copper-plated and nickel-plated tempered steel, 7 mm thick
Central version with double bolt and lateral version with single bolt that can be installed on the right or left
Designed for double or half profile cylinder with DIN cam (excluding 45° right DIN cam) or universal and 30 mm rosette side (external)
Operation of the deadbolts by rotating the key in the cylinder
Spring of the locking sector in harmonic steel class D


Included:


Detached pins
Nickel-plated brass cover with aesthetic function for the safety rosette
Zinc-plated steel grub screw for fixing the cylinder on the support and relative Allen key
Fixing screws made of hardened and galvanized cemented steel (4 M6 × 35 mm screws for installation on roller shutters and 4 M5 × 70 mm screws for vertical installation on metal doors up to 40 mm thick)
Installation note with drilling template




Viro lock




1. The case is made of galvanized steel with an increased thickness of 2 mm.




Viro lock




2. The bolts are 7 mm thick to effectively counteract forced entry attempts.




Viro lock

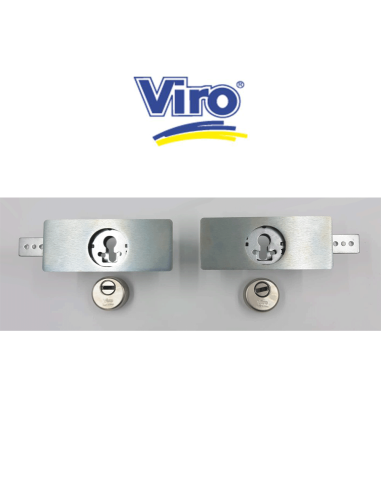

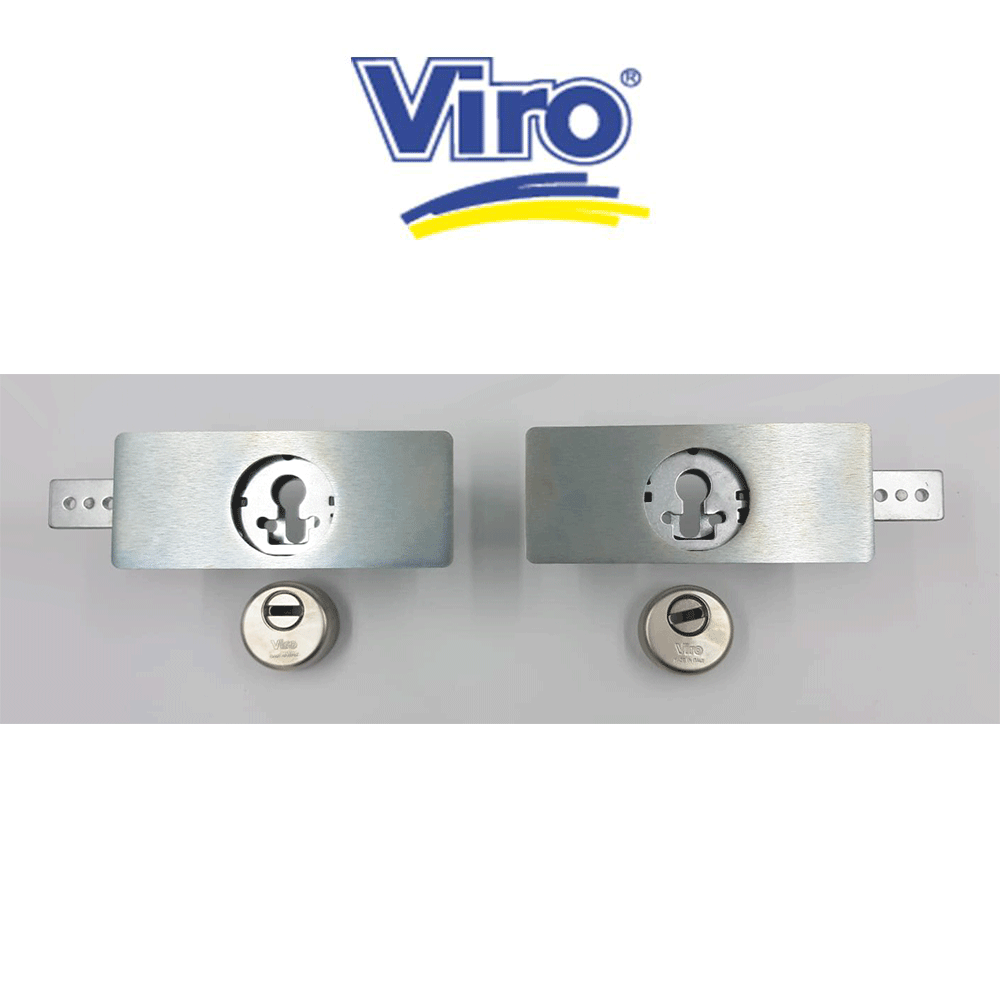

3. Detail of the safety rosette with rotating anti-drill plate that protects the cylinder.




Viro lock




4. The tear-proof rosette has a truncated conical shape so that it cannot be grabbed with pipes or other burglary tools.




Viro lock




5. The lock is complete with a protective plate. The shutter sheet metal is closed between the case and the protective plate to create an extremely resistant assembly.




Viro lock




6. The lock can fit any European profile cylinder or half cylinder, making any master keying possible (creation of master key systems with other existing cylinders).




Viro lock




7. The lock mounted on the outside where the protective plate, the safety rosette and the anti-drill plate are visible.

"
