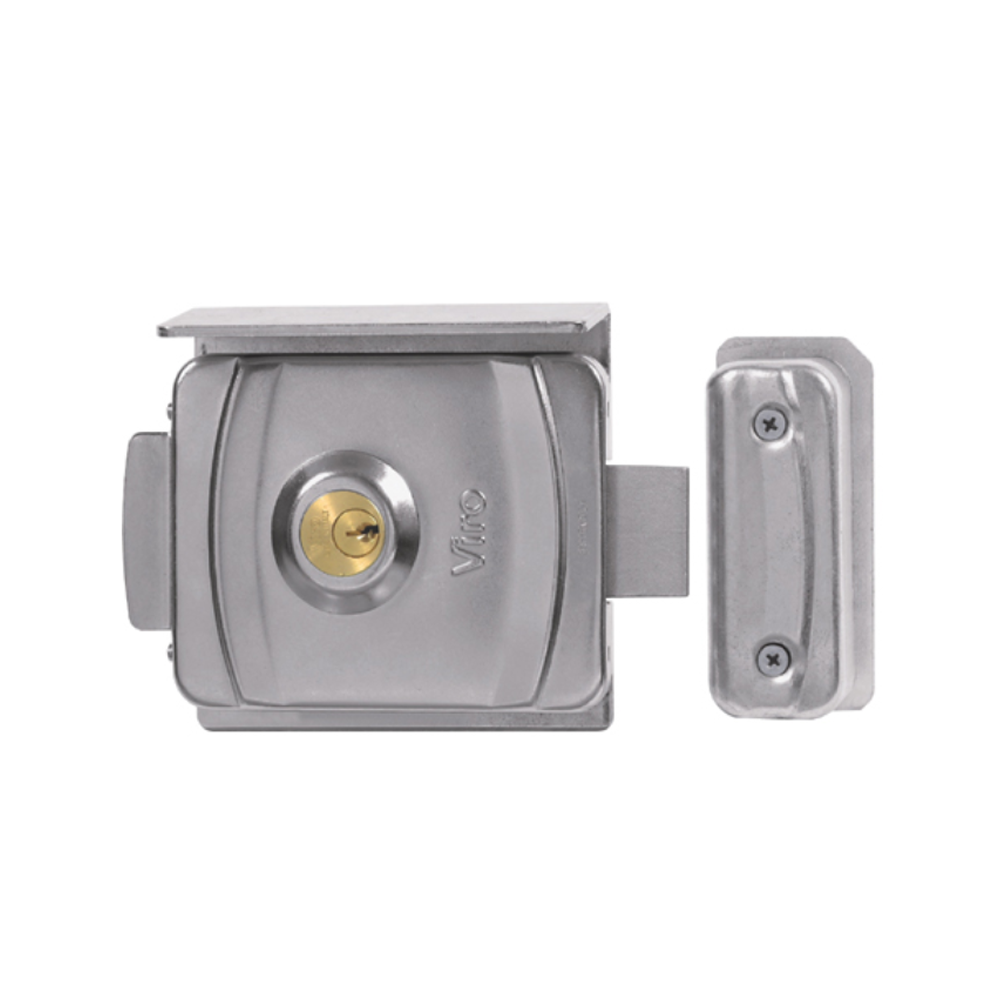

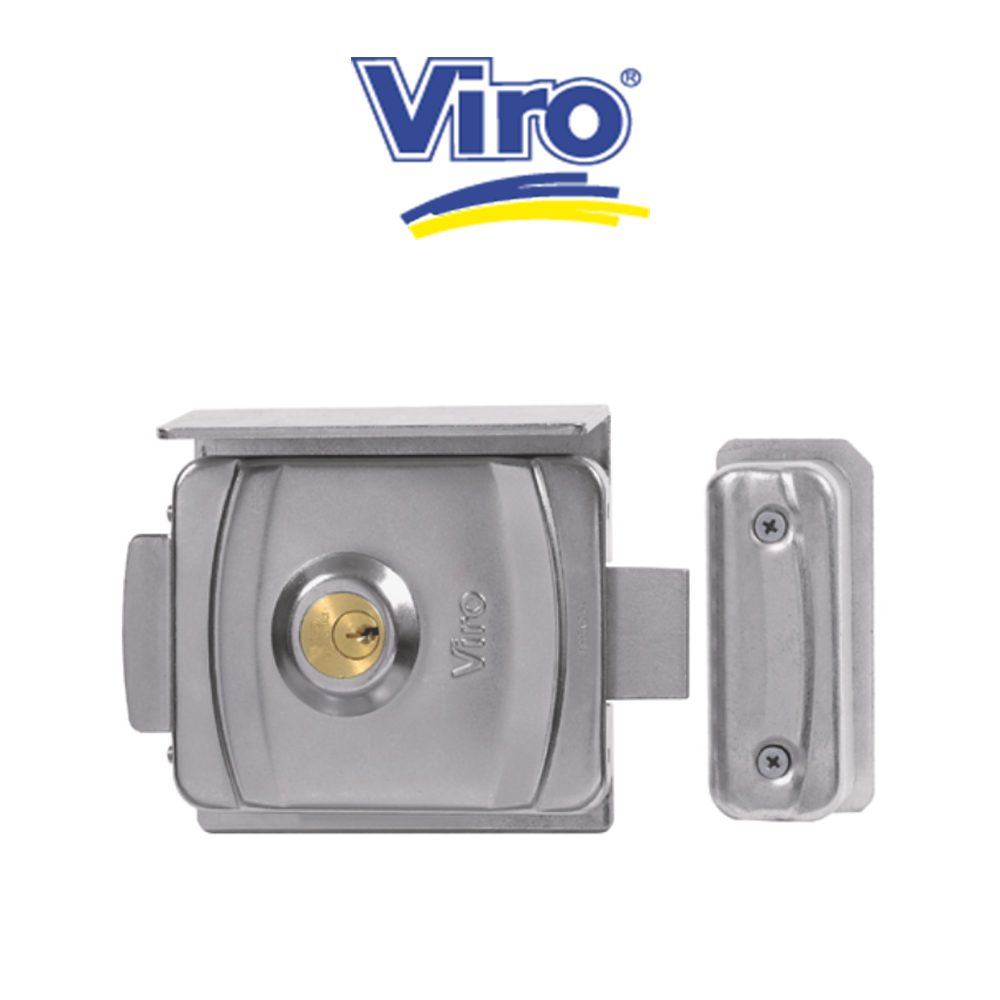

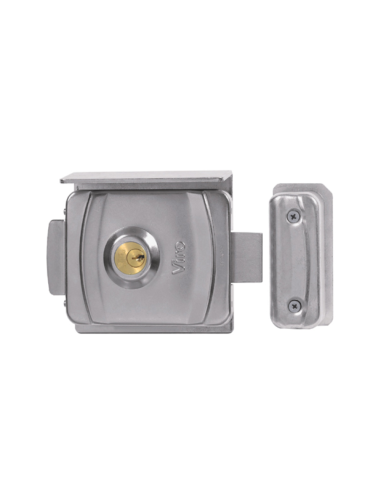

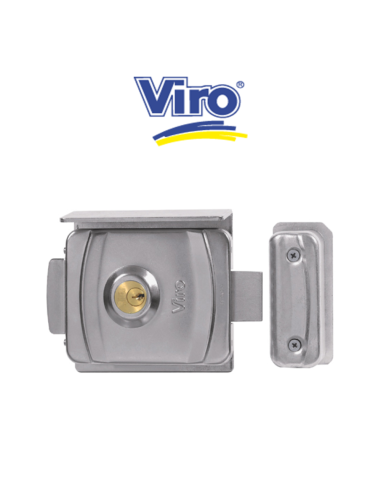

Electric lock for manual or automated driveway gates, adjustable entry from 50 to 80 mm with round cylinder with rotating bolt with service and safety functions.



Electric lock Viro V9083 entry 50-80 item 9083.794


Electric lock for manual or automated driveway gates, adjustable entry from 50 to 80 mm with round cylinder with rotating bolt with service and safety functions.


The lock can be applied to manual or automatic driveway doors and gates located outside and is interchangeable with the V90 and V83 electric locks. It is supplied as standard with a service function and can acquire a safety function by simply removing an internal part. Its features and finish make it ideal for installation even in environments subject to high temperature variations.




Viro lock




Technical features:


Vertical or horizontal installation
Adjustable entry 50 - 60 - 70 - 80 mm with a simple operation using the Allen key supplied
Service function (standard): with the electric impulse the lock prepares for opening and resets only after the door/gate has been opened and closed; it is therefore also suitable in the presence of door closers and/or automatic systems of any type
Safety function (selectable by manually removing an internal part): opening occurs only if manual or automatic pressure is applied to the gate at the same time as the electric impulse; therefore, its use is not recommended in the presence of door closers and/or unsuitable automatic devices
Double replaceable coil that distributes the load evenly and guarantees great reliability over time
Standard voltage 12V AC
Monobloc case in galvanized steel
Lid with grip handle in galvanized steel
Double-sealed, high-resistance rotating bolt in AISI 304 stainless steel
Version with solid brass round cylinder, fixed inside, fixed outside
Brass pistons
Mushroom shaped brass counterpins to prevent the action of the lock pick
Phosphor bronze piston springs
Galvanized steel strike plate that guarantees the lock's operation even in the event of vertical movements (caused by climatic variations) between the lock and the strike plate


Included:


3 nickel-plated brass keys
Counter-notch for horizontal installation in galvanized steel
Allen key for adjusting the entry
Fixing screws"
V9083
8005344057026
