€90.69 + taxes

€110.64 Tax included

Armored lock for garage doors up to 40 mm thick and roller shutters with security rosette and provision for profile cylinder without rods.

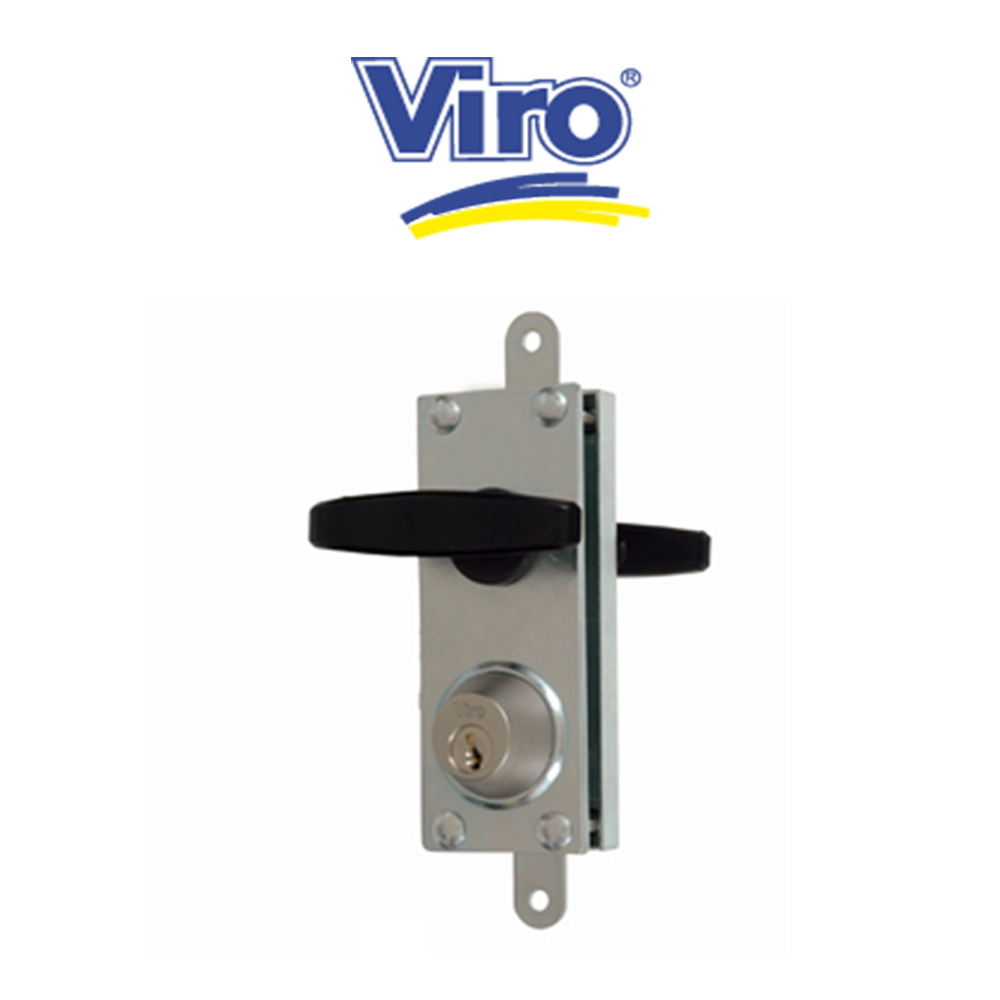

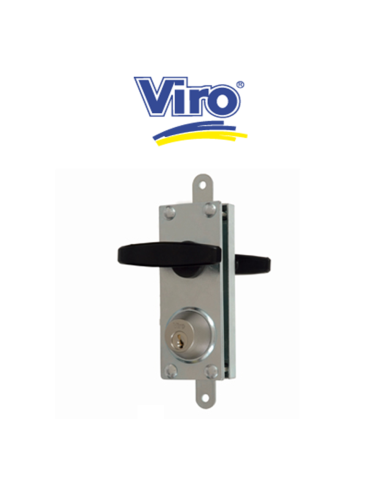

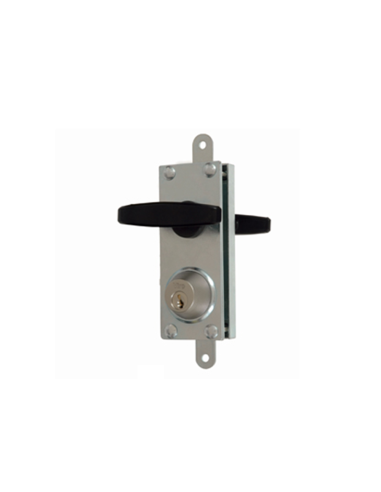

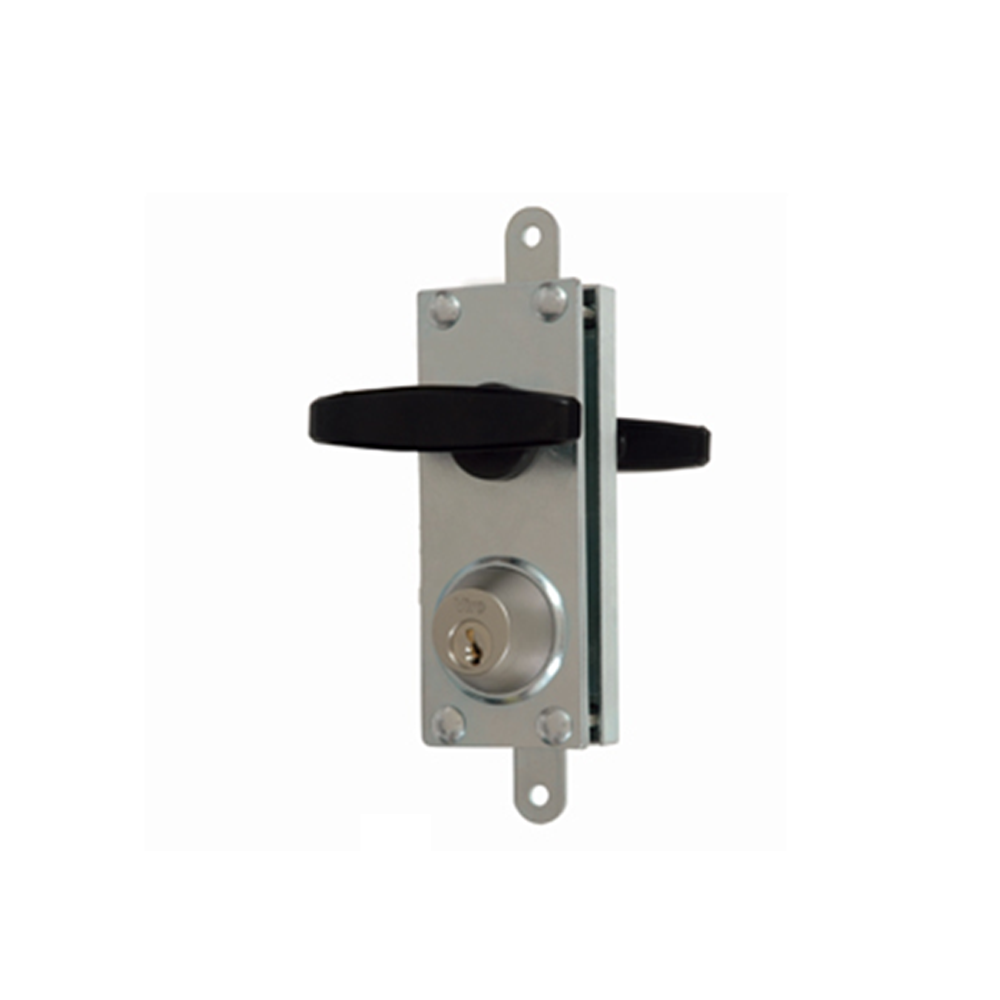

Armored lock for overhead doors Viro art. 8217.0010


Armored lock for garage doors up to 40 mm thick and roller shutters with security rosette and provision for profile cylinder without rods.


The lock is interchangeable with the most common locks for garage doors already installed with a simple modification of the pre-existing holes. The two locking points, the protection plates and the cylinder armor make this lock extremely safe.




Viro lock




Technical features:


Structure and internal components in galvanized steel
2 external protection plates in galvanized steel, overall thickness 5 mm
Steel bolts 3 mm thick, 25 mm stroke
Solid brass cylinder with 5 anti-tear and anti-drill pins in case-hardened, copper-plated and nickel-plated steel
3 Top Security nickel-plated brass keys
Wheelbase 70 mm
Cylinder connecting rod and fixing screws of increased length (can be sectioned as desired) to allow application also on garage doors with a thickness of up to 40 mm
NB : For this type of application, the double handle item 8217.0600 with a handle square of suitable length is required.
Deadbolt operation with internal and external handle
8mm handle square
Sintered steel handle frame latch
Opening from the inside using an excludable screw, practically impossible to hook from the outside with burglary tools
Brass pistons
Mushroom shaped brass counterpins to prevent the action of the lock pick
Phosphor bronze piston springs


Included:


Double handle grip for garage doors 8 mm square thickness up to 15 mm
Auctions not included "
8217.10
8005344016184
