€76.13 + taxes

€92.88 Tax included

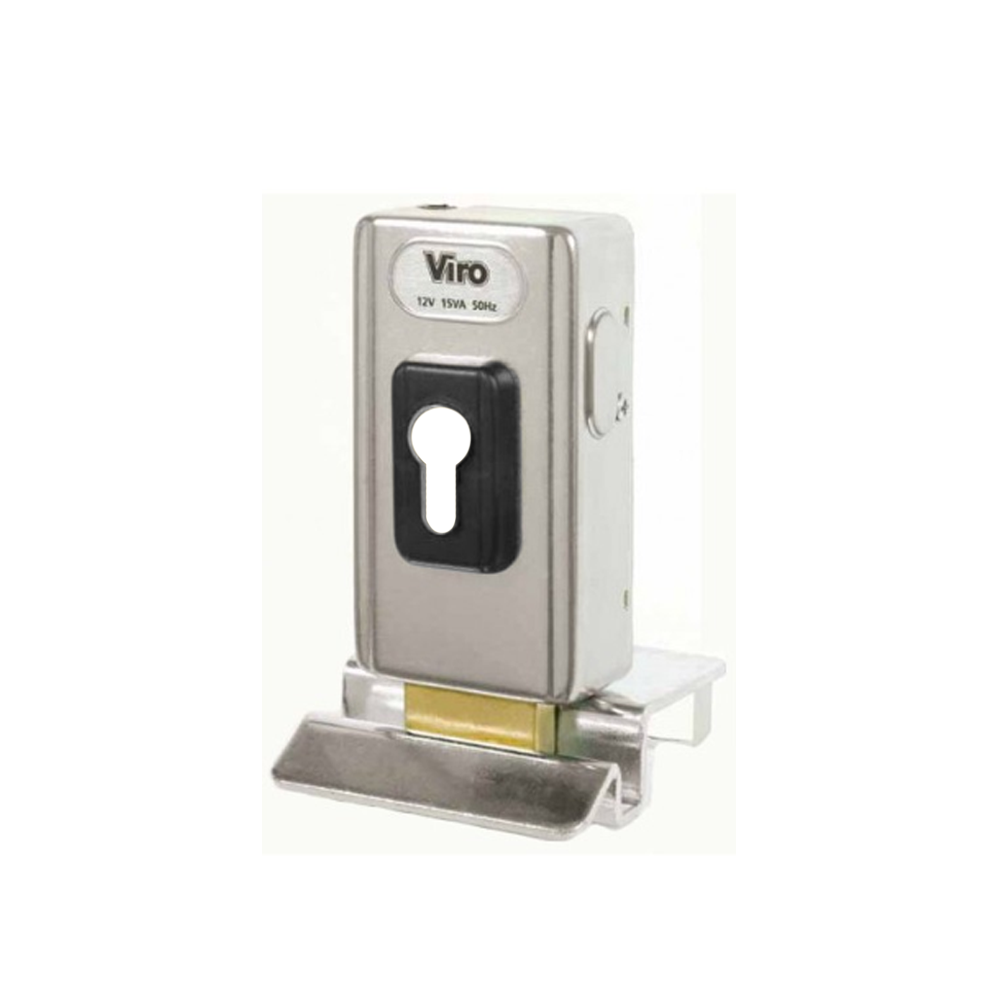

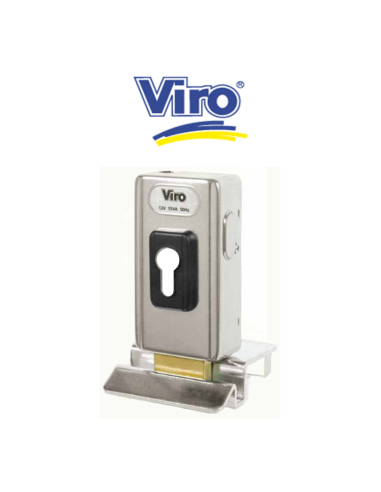

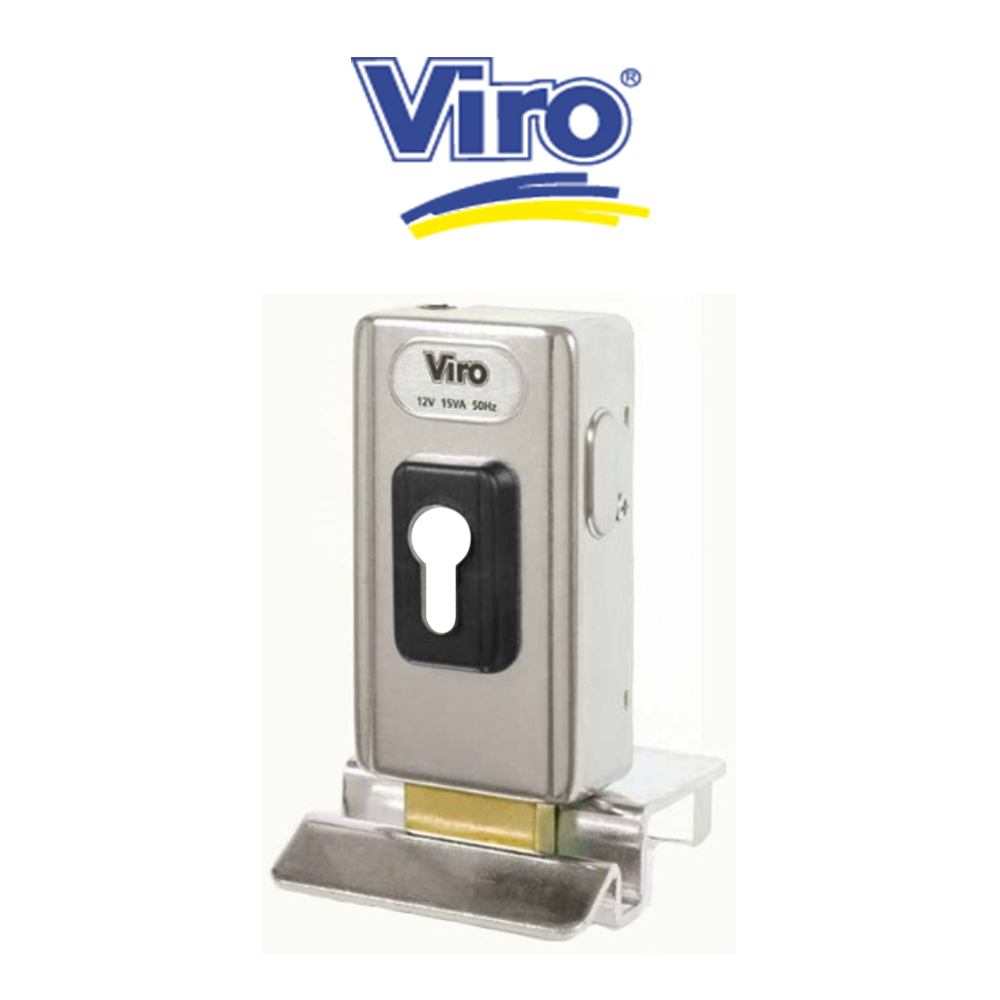

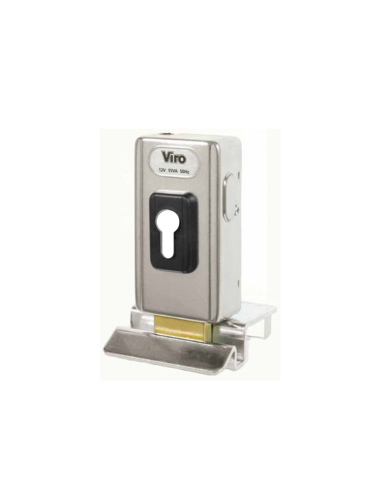

Electric lock for iron doors to be applied, entry 70 with ground strike and rotating bolt with service and safety functions.



Universal electric lock Viro V06 art. 1.7918


Electric lock for iron doors to be applied, entry 70 with ground strike and rotating bolt with service and safety functions.


The lock can be applied to manual or automated internal or external pedestrian or driveway doors and gates and is interchangeable with the V96 electric locks. It is supplied as standard with a service function and can acquire a safety function by simply removing an internal part. Its small size and the supplied ground striker make it ideal for vertical installations on narrow uprights. However, it can also be installed horizontally with an optional strike plate.




Viro lock




Technical features:


70mm entry
Vertical or horizontal installation
Service function (standard): with the electric impulse the lock prepares for opening and resets only after the door/gate has been opened and closed; it is therefore also suitable in the presence of door closers and/or automatic systems of any type
Safety function (selectable by manually removing an internal part): opening occurs only if manual or automatic pressure is applied to the gate at the same time as the electric impulse; therefore, its use is not recommended in the presence of door closers and/or unsuitable automatic devices
Double replaceable coil that distributes the load evenly and guarantees great reliability over time
Standard voltage 12V AC
Monobloc case in galvanized steel
Galvanized steel cover
Solid brass rotating bolt with nylon insert that makes the closing quieter
Prepared for double or half profile cylinder (not supplied)
Ground striker in galvanized steel to be cemented to the ground or welded to the lower frame of the gate


Included:


Ground contact item 9986 in galvanized steel
Nylon ring and cap
Passivated steel support for profile cylinder
Fixing screws"
7918
8005344068350
