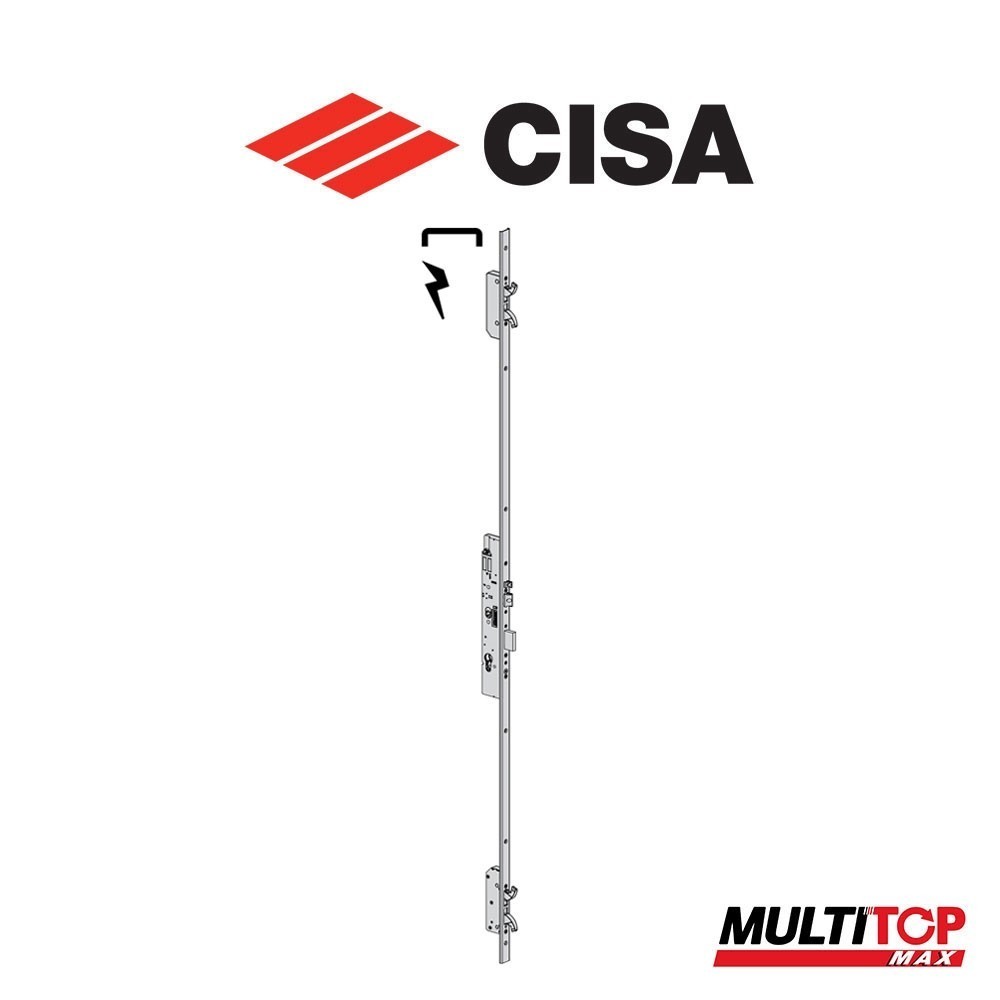

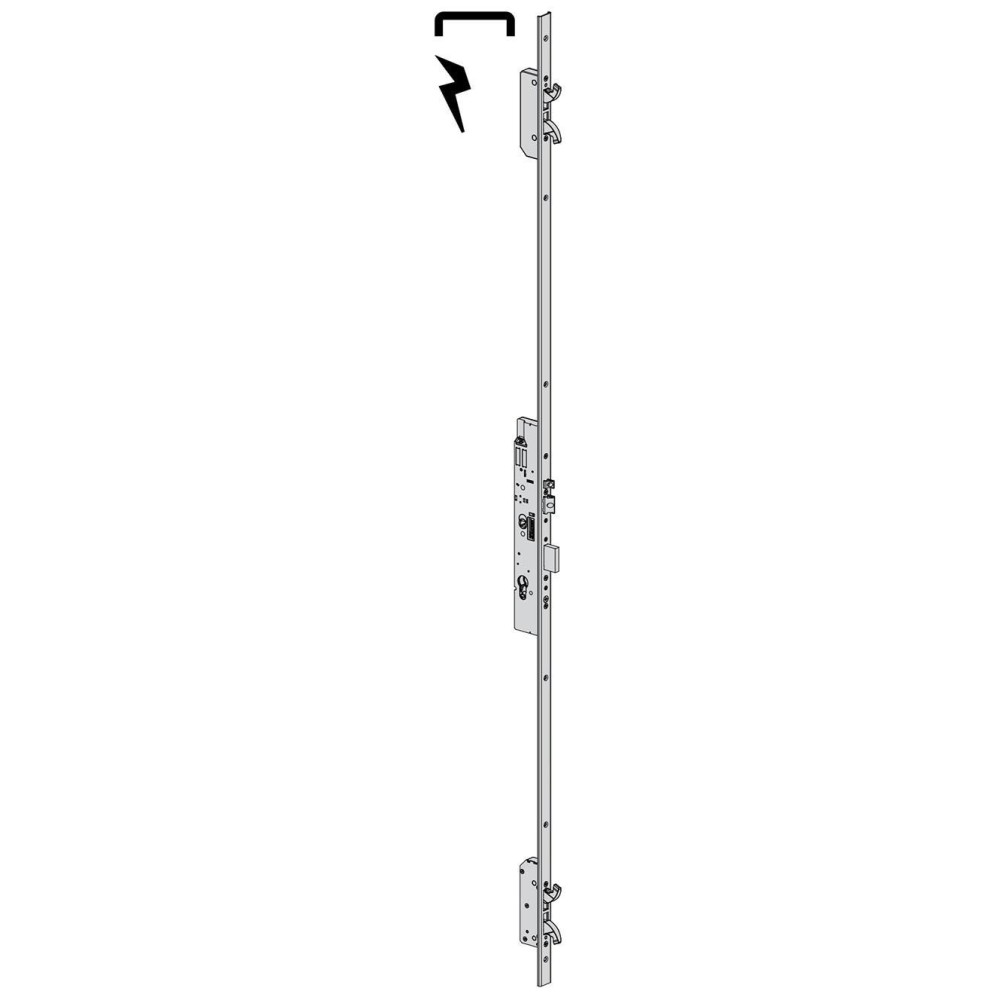

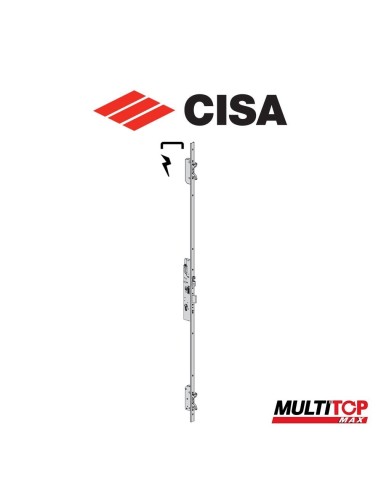

Cisa Multitop Max electric multipoint lock with entry 35 frontal U-shaped series 19656-35

How many times have you asked yourself how to improve the security level of your home? In this case, choosing the Cisa Multitop Max multipoint electric lock with 35 front U-shaped entry is the right solution. The mechanism of this product ensures that each of the 4 bolts supplied is independent from the others, allowing you to counteract any external attack.

U-shaped shaving front 24 × 5 mm in stainless steel h. 2300 mm

- upper shaving width 350 mm

- lower shaving 150 mm
Adjustable latch and piston from 10.5 to 16.5 mm self-locking

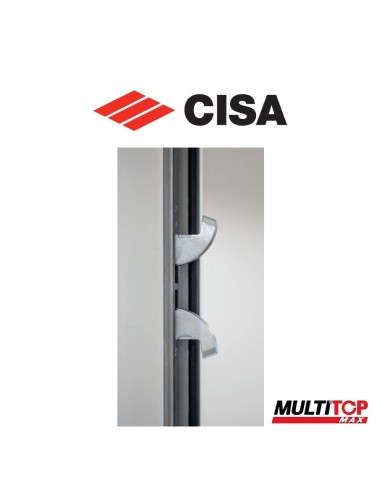

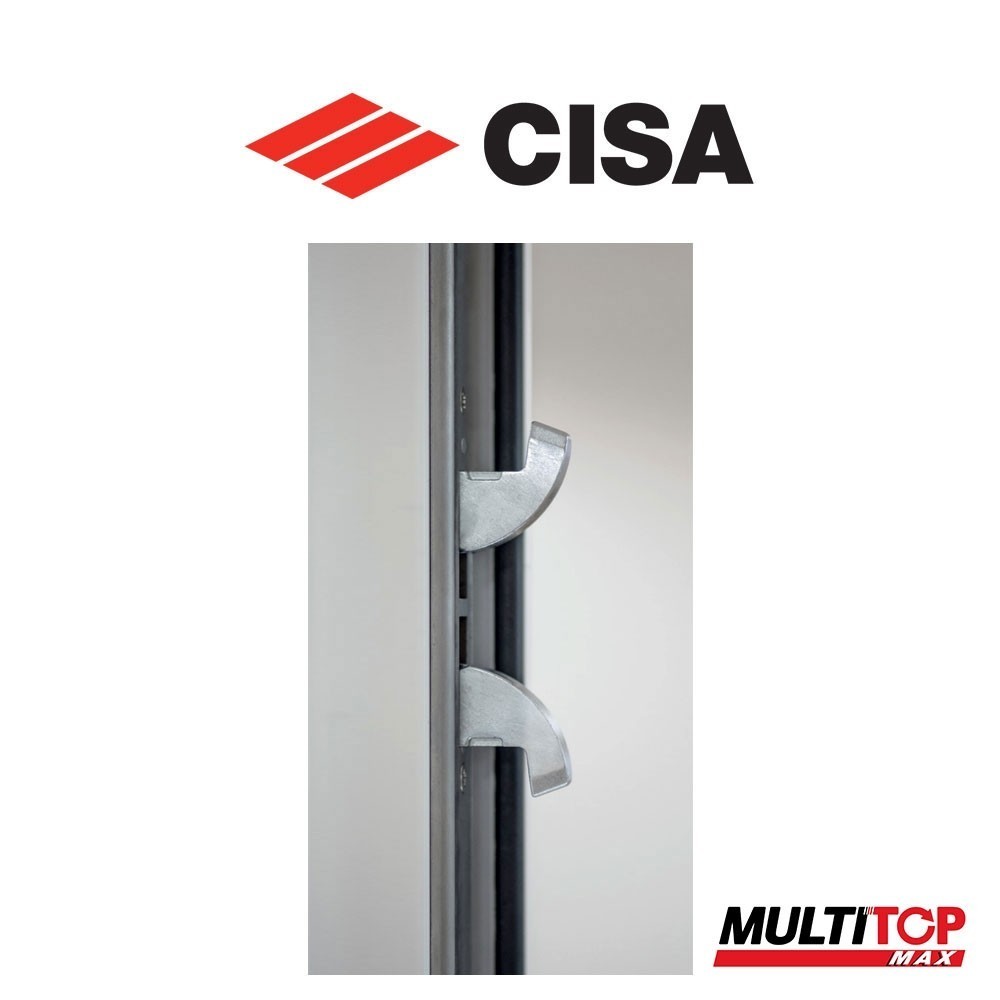

4 hooks with hardened steel inserts
Voltage 12 V AC CE
Current consumption 3 1 A

HIGH SECURITY

Locking system with 4 hooks independent from the central lock mechanism and independent from each other. Any forcing of the central bolt or one of the hooks does not compromise the hold of the other hooks. Patented Cisa system.

DOOR THERMAL DISTORTION RECOVERY

The rack mechanism that lightens the rotation of the key and the hooks with accentuated chamfer allow to recover from distortions of the door due to temperature changes.

AREAS OF USE

Entrance doors
Secondary entrance doors
Grilles and shutters to protect French windows
Sliding doors

---

ADVANTAGES

For the end user

High resistance to break-in (2,000 kg to lateral thrust and 1,000 kg to attempted break-in by widening the profile).
Energy saving and acoustic improvement.

For the installer

Reduction of maintenance time and costs.
Can be installed on various types of doors including grilles.

For the designer or architect

Certified according to European Standard pr EN15685 and is suitable for EN1627 certified doors up to resistance class WK/RC 4.
Operation with European profile cylinder that can be integrated into master key systems for access management.

---

SAFETY

Locking system with 4 hooks 10 mm thick protected with a 4 mm thick tempered steel plate. Cisa patent filed.

Benefits:

High resistance to break-in (2,000 kg to lateral thrust and 1,000 kg to attempted break-in by widening the profile).

CERTIFICATIONS

Grade 6 Security according to European standard pr EN15685.
Grade 7 Security according to European standard pr EN15685 using the protection plates for the lock and the 06436 series diverters.
Suitable for EN1627 certified doors up to resistance class WK/RC4.

---

INTERCHANGEABILITY

Perfectly interchangeable with all Multitop locks.
The counterplates for the central lock and for the diverters with hooks are the same as the Multitop Pro .

Benefits:

No additional work is required on the door to install the lock.
Maintaining the same current range of counterplates. For installation, it will only be necessary to adjust the position on the profile.

VERSATILE LATCH

Supplied as standard in the latch version. The other functions can be obtained:

- Changing from latch to roller directly from the front of the lock ( Cisa patent registered).

- Inserting the latch backwards for the deadbolt only version.

Benefits:

Stock reduction.
More flexible adjustments.
Replacing the roller on an already installed lock.
Deadbolt only function without the use of additional accessories.

ELECTRIC VERSION

Electric version with 15.5 mm box thickness and with anti-burglary device on the latch.

Benefits:

Reduction of holes on the profile and guarantee of correct installation on thermal break and European chamber profiles.
Increased security for doors closed only with the latch.

---

Dimensions
AND	35

"
