€142.86 + taxes

€174.29 Tax included

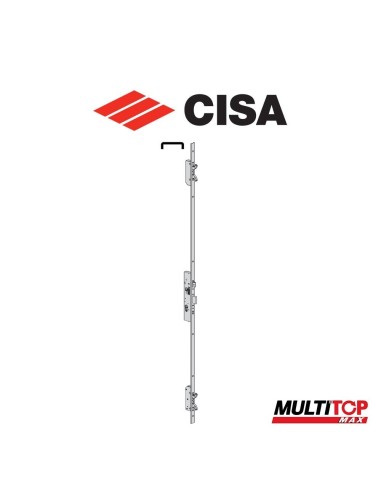

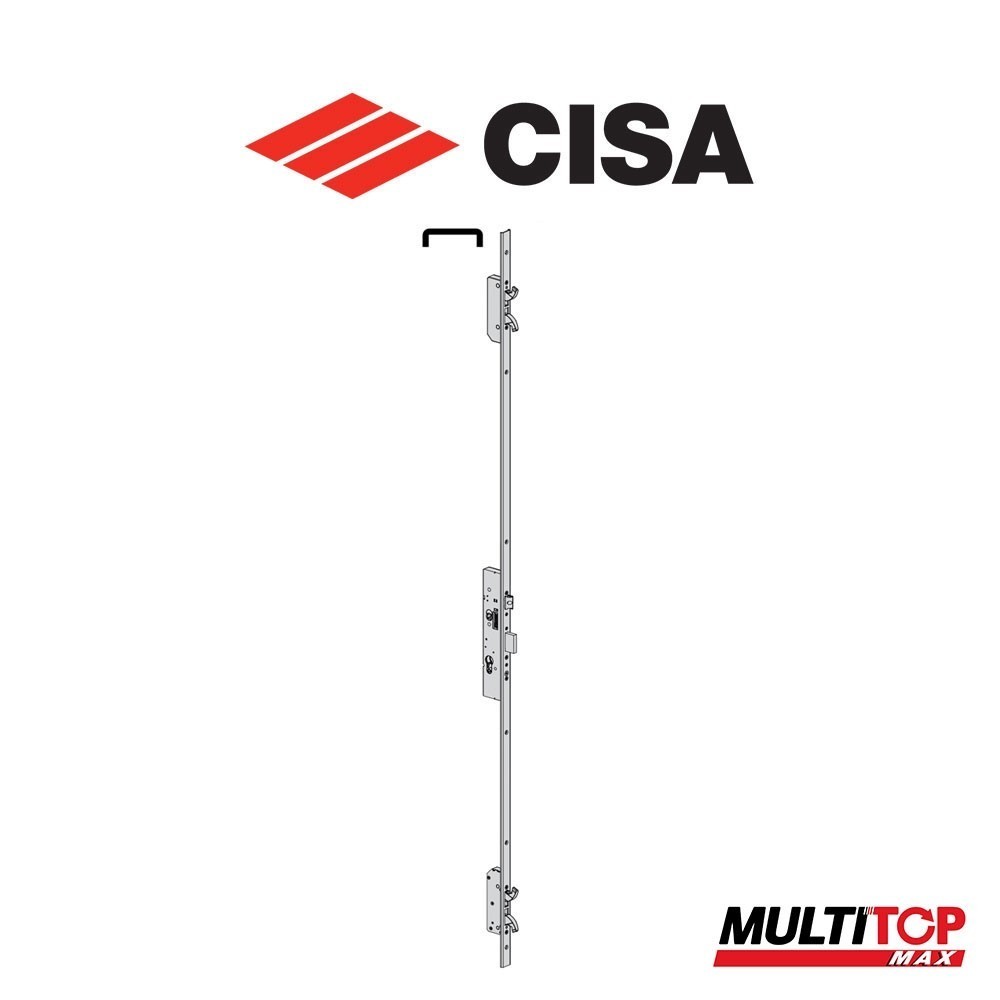

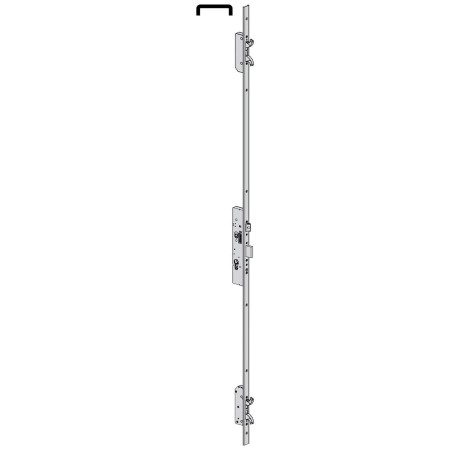

Lock art. 4965635 Multitop Max multi-point mechanical lock with 4 hook bolts, entry 35, 3 locking points, 2 throws, 85 mm centre distance, 24 mm U-shaped front.

BROCHURE

ASSEMBLY INSTRUCTIONS
"



Cisa Multitop Max multi-point mechanical lock with entry 35 frontal U-shaped series 49656-35


Cisa is an Italian company that has been offering perfect solutions for improving the security of your home for several years. With the Cisa Multitop Max multipoint mechanical lock with 35 front U-shaped entry you can guarantee the right protection for your spaces: this product boasts 4 deadbolts that resist any break-in.


U-shaped shaving front 24 × 5 mm in stainless steel h. 2300 mm

- upper shaving width 350 mm

- lower shaving 150 mm
Adjustable latch from 11 to 17 mm

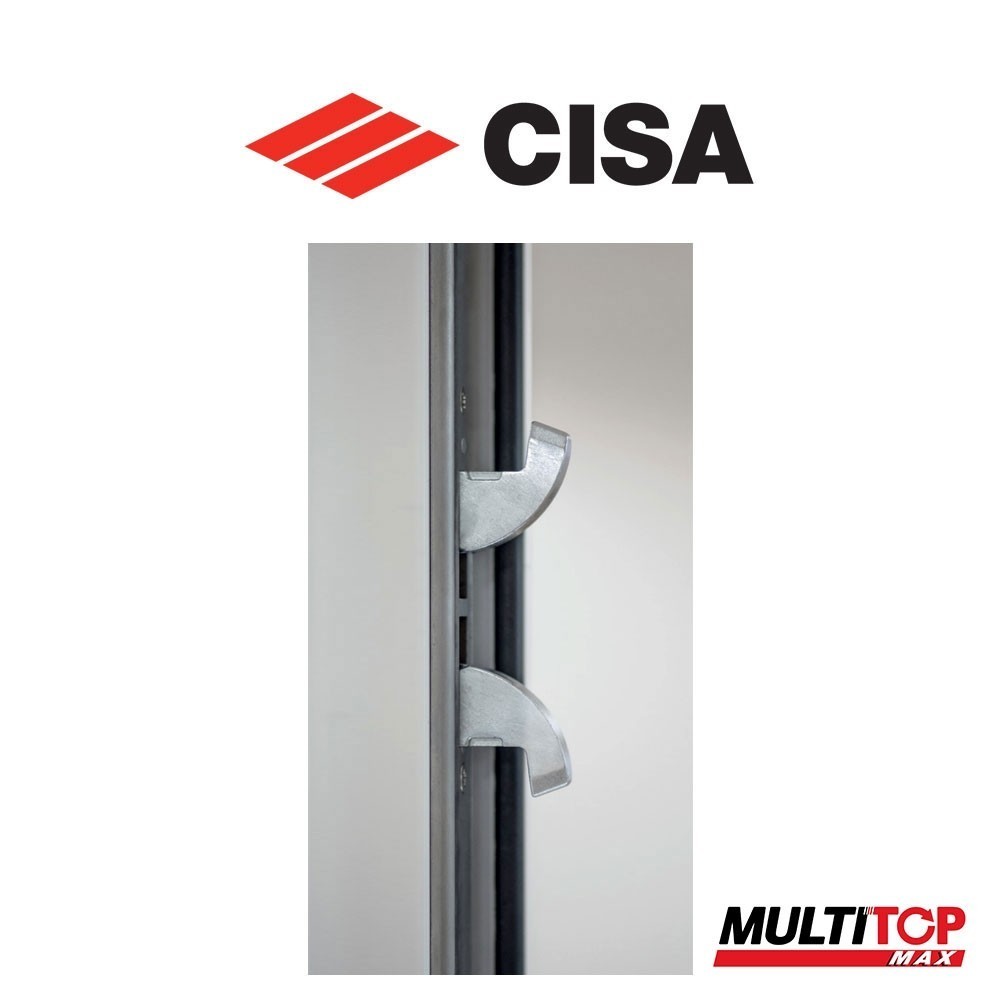

4 hooks with hardened steel inserts




HIGH SECURITY


Locking system with 4 hooks independent from the central lock mechanism and independent from each other. Any forcing of the central bolt or one of the hooks does not compromise the hold of the other hooks. Patented Cisa system.




DOOR THERMAL DISTORTION RECOVERY


The rack mechanism that lightens the rotation of the key and the hooks with accentuated chamfer allow to recover from distortions of the door due to temperature changes.




Cisa lock




AREAS OF USE


Entrance doors
Secondary entrance doors
Grilles and shutters to protect French windows
Sliding doors



ADVANTAGES


Cisa lock


For the end user


High resistance to break-in (2,000 kg to lateral thrust and 1,000 kg to attempted break-in by widening the profile).
Energy saving and acoustic improvement.


Cisa lock


For the installer


Reduction of maintenance time and costs.
Can be installed on various types of doors including grilles.


Cisa lock


For the designer or architect


Certified according to European Standard pr EN15685 and is suitable for EN1627 certified doors up to resistance class WK/RC 4.
Operation with European profile cylinder that can be integrated into master key systems for access management.



Cisa lock


SAFETY


Locking system with 4 hooks 10 mm thick protected with a 4 mm thick tempered steel plate. Cisa patent filed.


Benefits:


High resistance to break-in (2,000 kg to lateral thrust and 1,000 kg to attempted break-in by widening the profile).




CERTIFICATIONS


Grade 6 Security according to European standard pr EN15685.
Grade 7 Security according to European standard pr EN15685 using the protection plates for the lock and the 06436 series diverters.
Suitable for EN1627 certified doors up to resistance class WK/RC4.



Cisa lock


INTERCHANGEABILITY


Perfectly interchangeable with all Multitop locks.
The counterplates for the central lock and for the diverters with hooks are the same as the Multitop Pro .


Benefits:


No additional work is required on the door to install the lock.
Maintaining the same current range of counterplates. For installation, it will only be necessary to adjust the position on the profile.




Cisa lock


VERSATILE LATCH


Supplied as standard in the latch version. The other functions can be obtained:

- Changing from latch to roller directly from the front of the lock ( Cisa patent registered).

- Inserting the latch backwards for the deadbolt only version.


Benefits:


Stock reduction.
More flexible adjustments.
Replacing the roller on an already installed lock.
Deadbolt only function without the use of additional accessories.





Cisa lock




Cisa lock




Dimensions
AND 35


"
4965635
8015346073368
