€1,564.44 + taxes

€1,908.62 Tax included

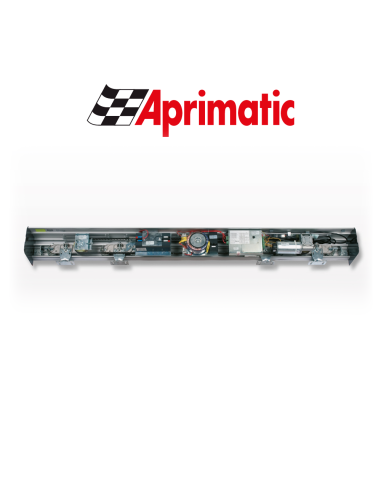

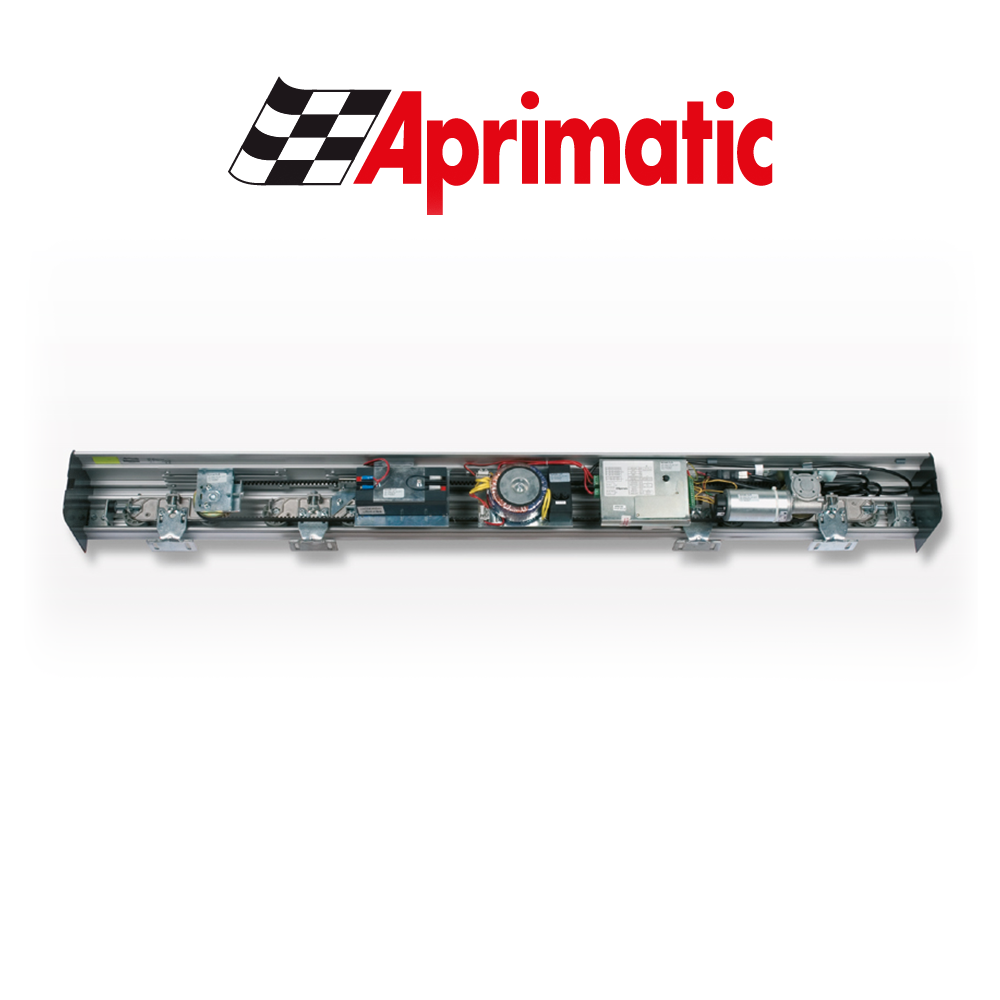

Aprimatic single motor automation for sliding doors of shops, supermarkets and offices with large flows and medium-heavy loads



Automation for sliding doors Aprimatic art. WING NK

Smooth movement precise silent

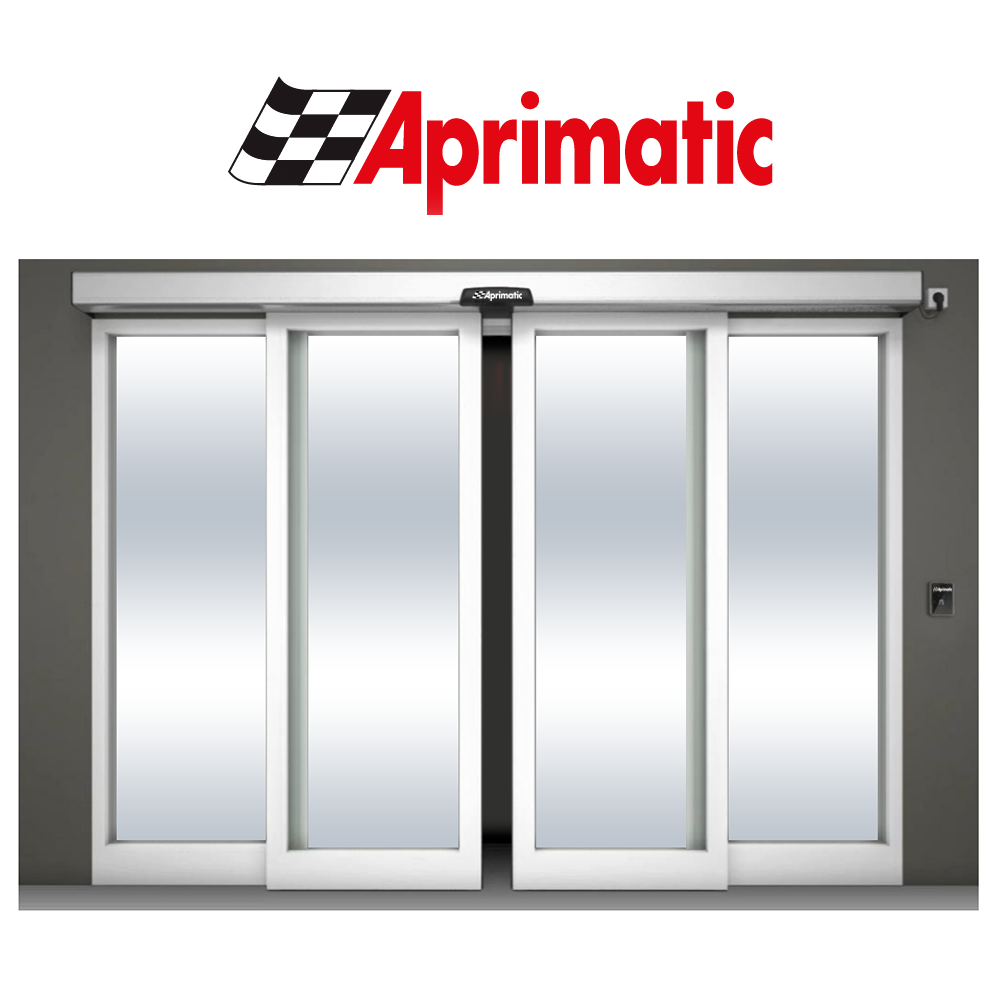

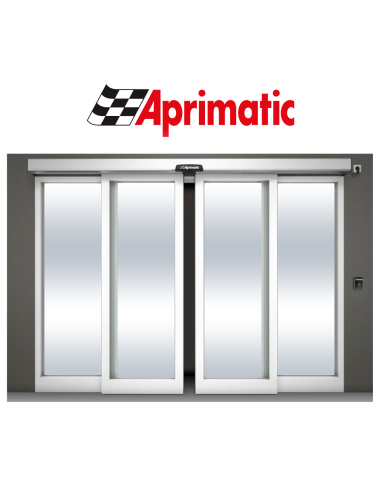

Sliding doors are essential in those commercial or private contexts where there is a large influx of people. Using the right automation allows for immediate opening and closing so that the passage is not hindered: for this reason Aprimatic has designed this single-motor product for medium-heavy load panels.




Aprimatic sliding door automation




General characteristics
Automation power supply -
Motor power supplies -
Power supply accessories 24V DC / AC
Operating temperature from -20 to +60 °C
Installed power (max) 300W




Dimensions

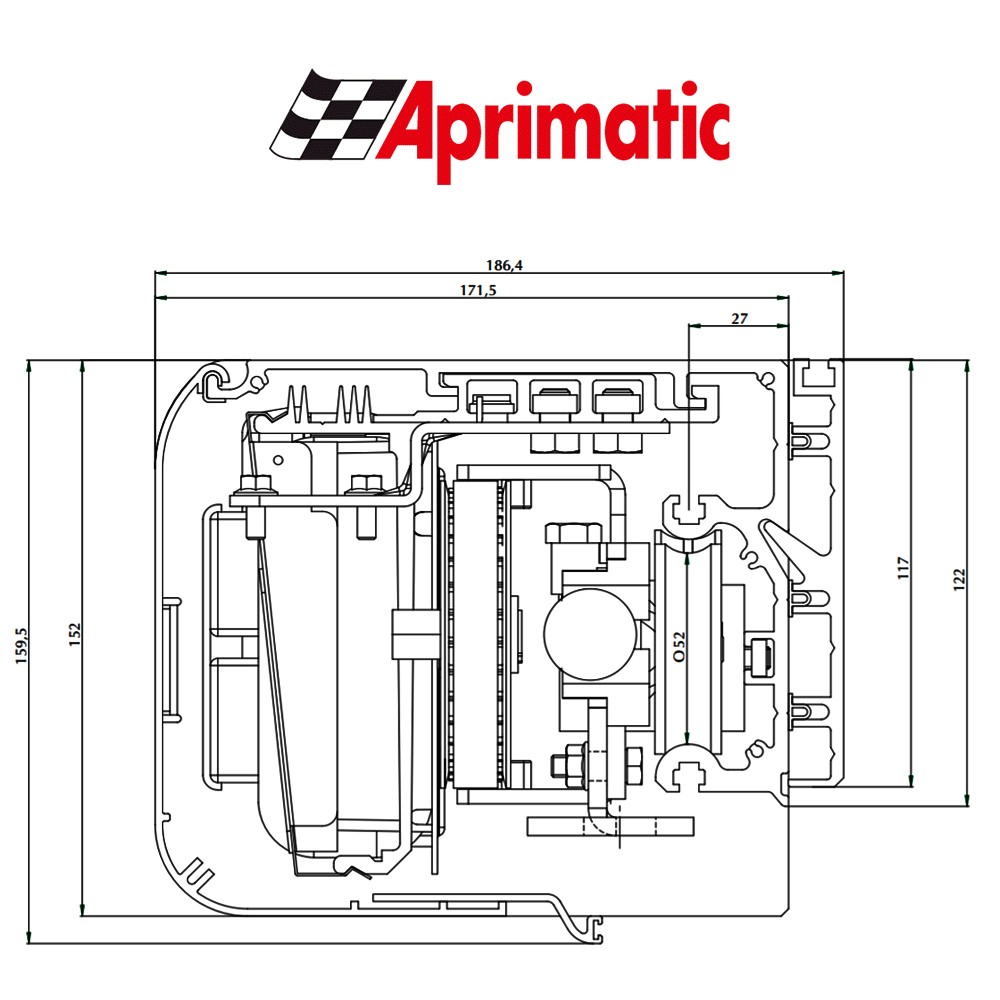

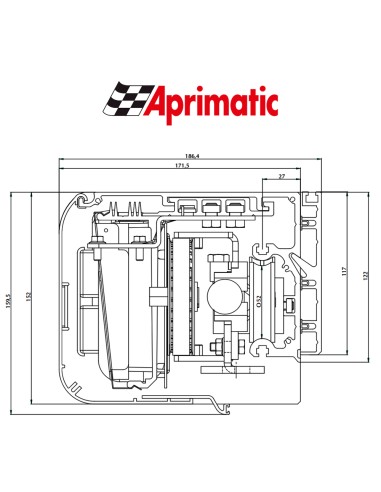

Overall dimensions (height x depth) 152 × 172 mm
Beam length (min / max) 1810 - 6010 mm
Passage space (min / max) 850 - 2950 mm




Door load capacity in Kg
Max. capacity 100 Kg × 1 door - 100 Kg × 2 doors




Speed in cm/s
Opening speed min/max 11-75 × 1 door - 22-150 × 2 doors
Min/max closing speed 11-75 × 1 door - 22-150 × 2 doors
Approach speed 6




Transmission of motion
Transmission HPPD timing belt
Type of trolleys 2 modular trolleys with 3 wheels for each door
Rolling type On reinforced nylon wheels




Self-learning function (at power on or reset)
Opening stroke length Yes
Closing stroke length Yes
Mass before Yes
Braking distances (adaptive) Yes
Opening speed Yes
Closing speed Yes




Standard functions (selectable by key switch and/or keyboard)
Night block Yes
Automatic bidirectional Yes
Automatic exit only Yes
Automatic entry only Yes
All open Yes
Automatic in partial opening Yes
Manual opening -
Pharmacy opening -
Reset Yes




Emergency functions
Emergency button input Yes
Electric panic with battery Yes
Emergency maneuver with battery Yes
Stop entrance Yes




Security features
Input for safety photocell Yes
Obstacle detection (adaptive) Yes




Adjustable parameters
Opening speed Yes
Closing speed 65% opening speed (via dipswitch)
Winding speed Yes
Open parking time Yes
Push force Yes
Electric lock intervention delay Yes
Partial opening percentage Yes




Diagnostics
Identifying various types of alarms and warnings Yes




Additional features (optional)
Bistable electrolock with self-diagnosis Yes
Integrated anti-panic system with break-in Yes
Interlock function Yes
Manual unlocking Yes

"
