€93.58 + taxes

€114.17 Tax included

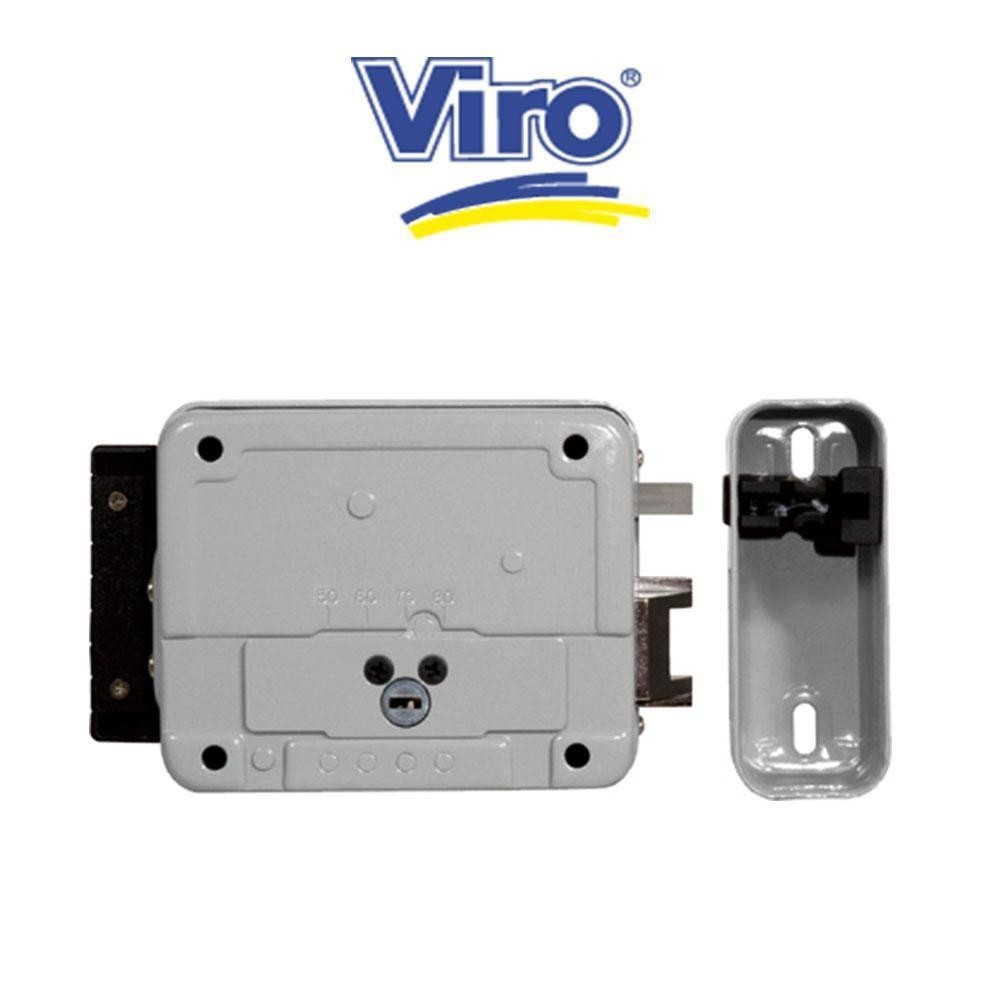

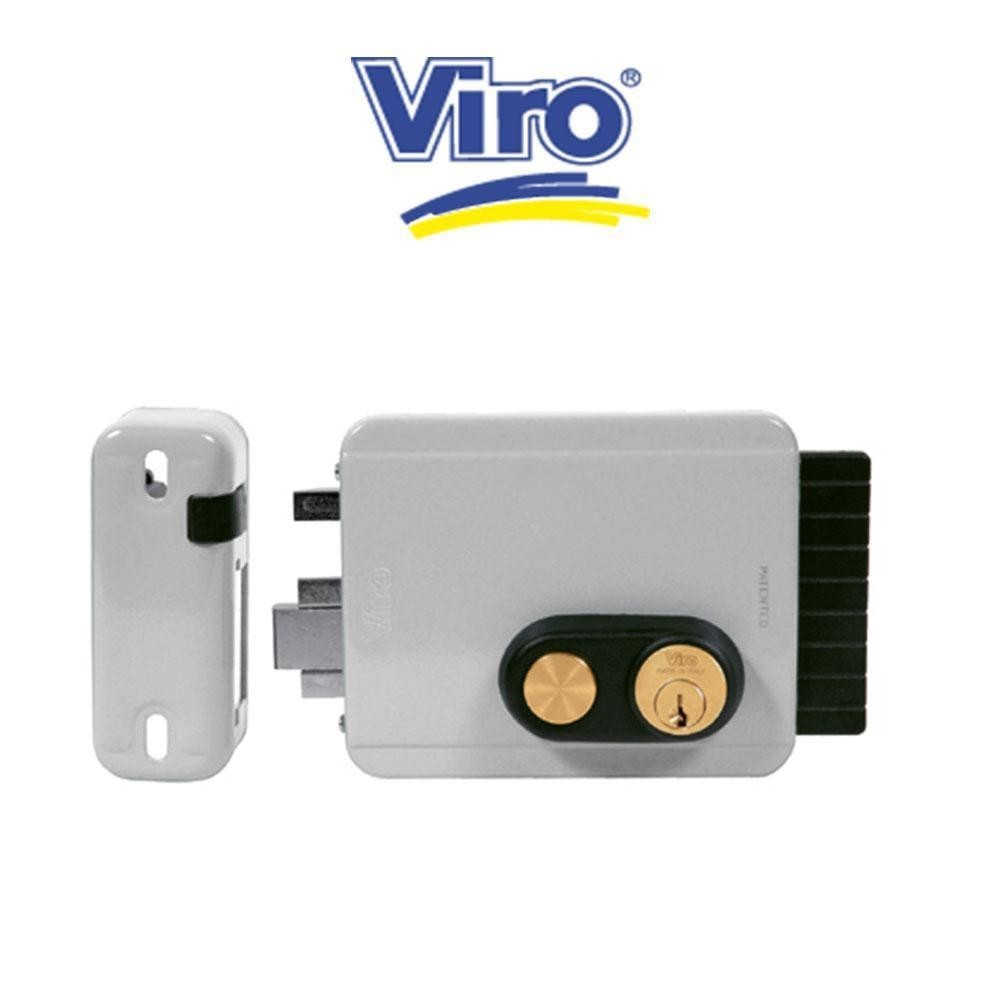

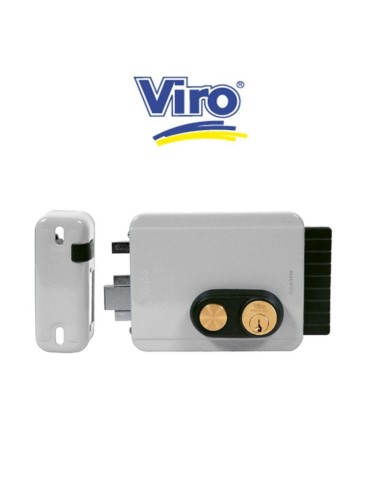

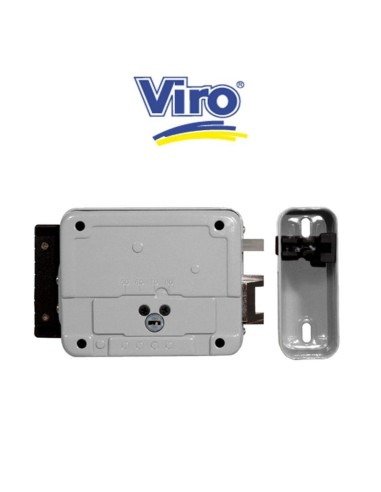

Electric lock with button for wooden or metal pedestrian doors and gates, adjustable entry from 50 to 80 mm, interchangeable with the V97 lock.



Electric lock with Viro Block-Out button, entry 50-80 Left, item 8977.794.2


Electric lock with button for wooden or metal pedestrian doors and gates, adjustable entry from 50 to 80 mm, interchangeable with the V97 lock.


The lock is applicable on doors, gates and pedestrian gates located inside or outside and is interchangeable with the V97 maintaining the previous strike plate and with the most common electric locks already installed. The manually operated deadbolt ensures the lock closes independently of the electric impulse. Its characteristics and finish make it ideal for wooden or metal doors and gates even in environments subject to high temperature variations.




Viro lock




Technical features:


Horizontal installation
Adjustable entry from 50 to 80 mm with a simple operation using the Allen key supplied
Dimensions 127 5 × 103 5 mm
Double replaceable coil that distributes the load evenly and guarantees great reliability over time
Standard voltage 12V AC
Monobloc case in galvanized and painted steel
Cover in galvanized and painted steel
Nylon grip handle as the cylinder/button ring
Solid brass latch self-locking when locked closed
Single-throw solid nickel-plated brass deadbolt with 20 mm stroke located in the centre of the latch
Nickel-plated steel ejector separate from the latch to ensure the lock functions even in the event of vertical movements (caused by climatic variations) between the lock and the strike plate
Brass button
Solid brass cylinder internal fixed external fixed
When the deadbolt is inserted, the lock can only be unlocked with the key
Brass pistons
Mushroom shaped brass counterpins to prevent the action of the lock pick
Phosphor bronze piston springs
Height-adjustable steel strike plate to recover any vertical movements between the lock and the strike plate
Self-lubricating nylon insert at the contact with the ejector


Included:


3 nickel-plated brass keys
Counter-notch in galvanized and painted steel
Oval brass escutcheon
Allen key for adjusting the entry
Fixing screws"
8977.2
8005344053509
