€152.60 + taxes

€186.17 Tax included

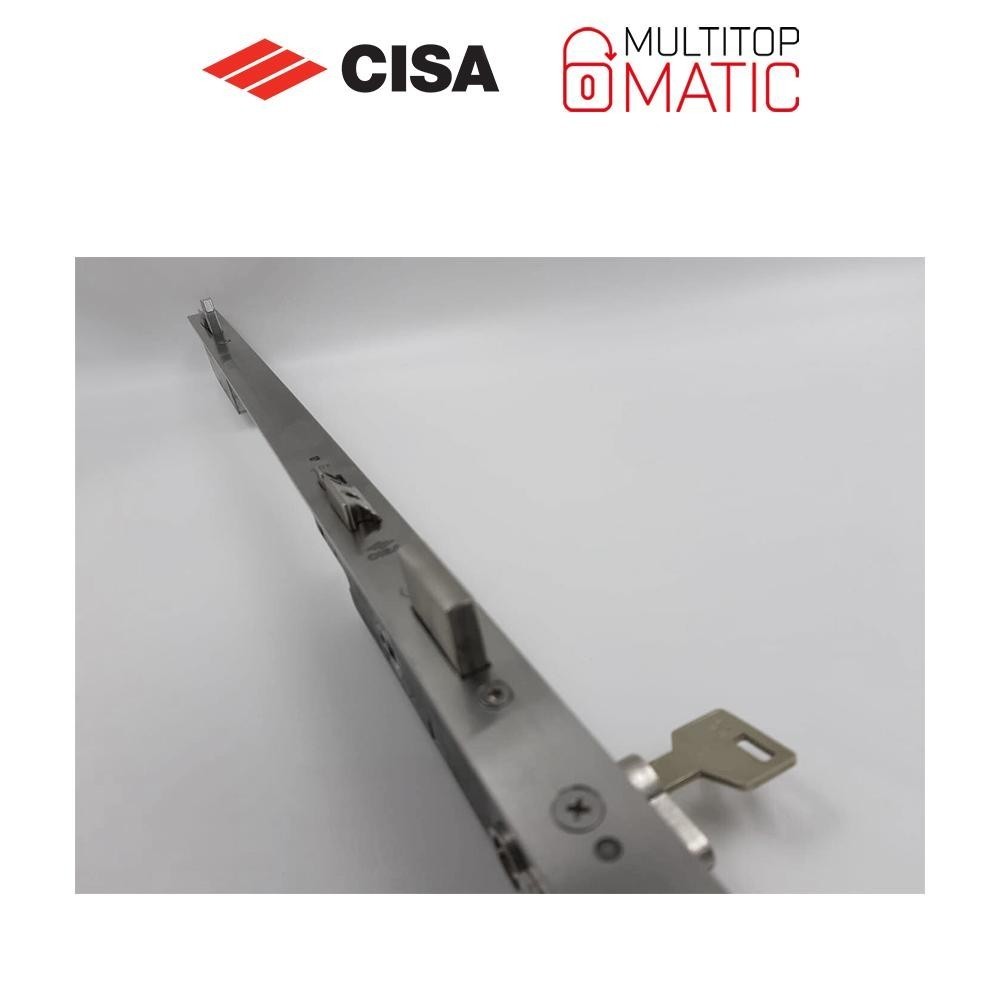

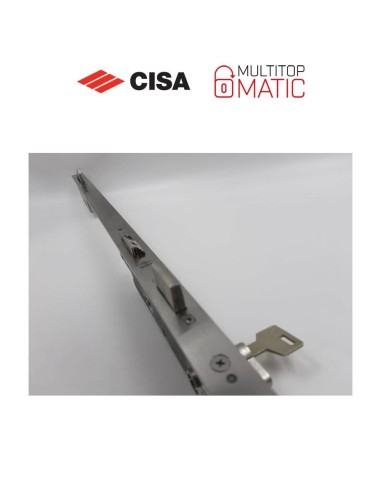

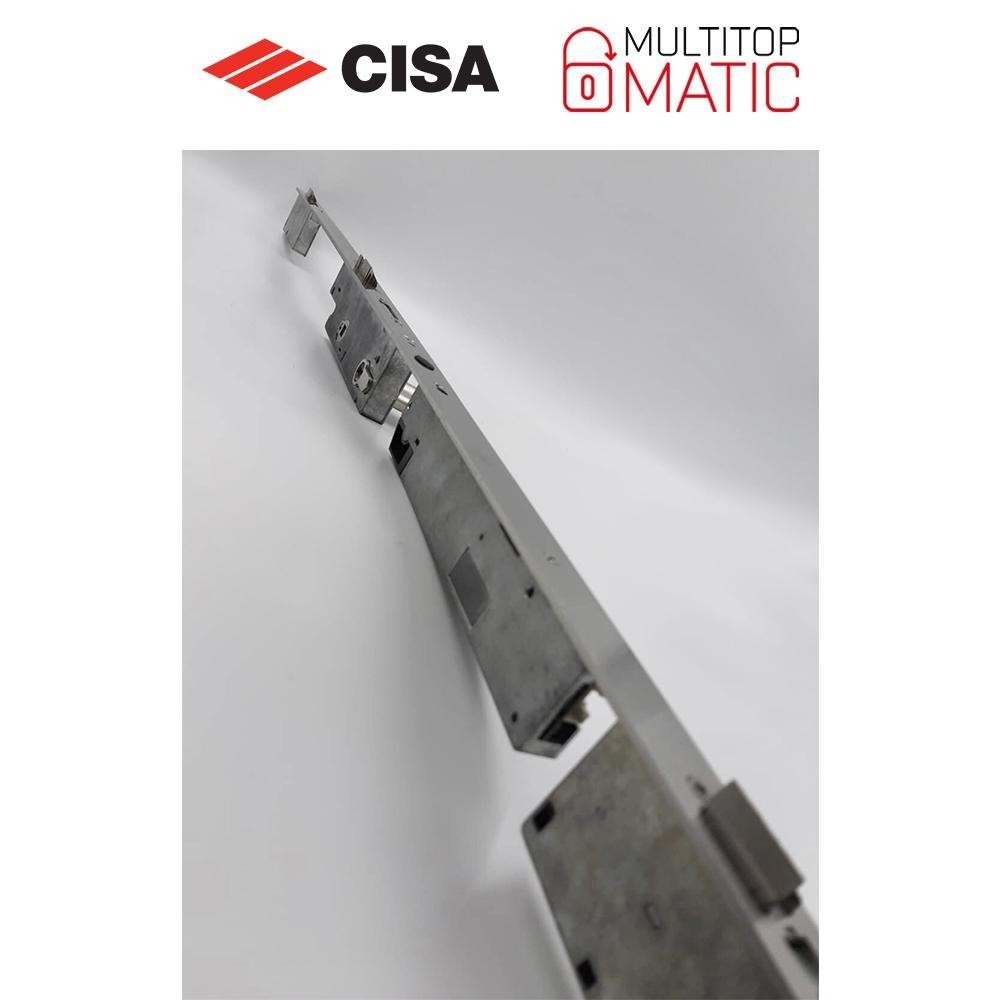

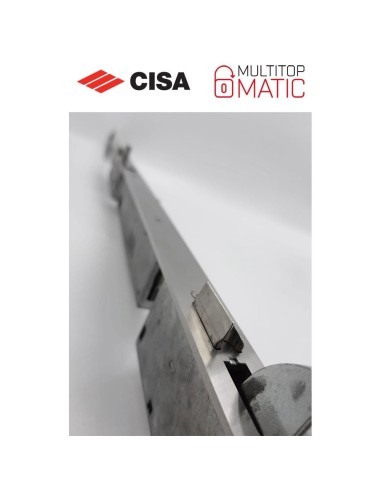

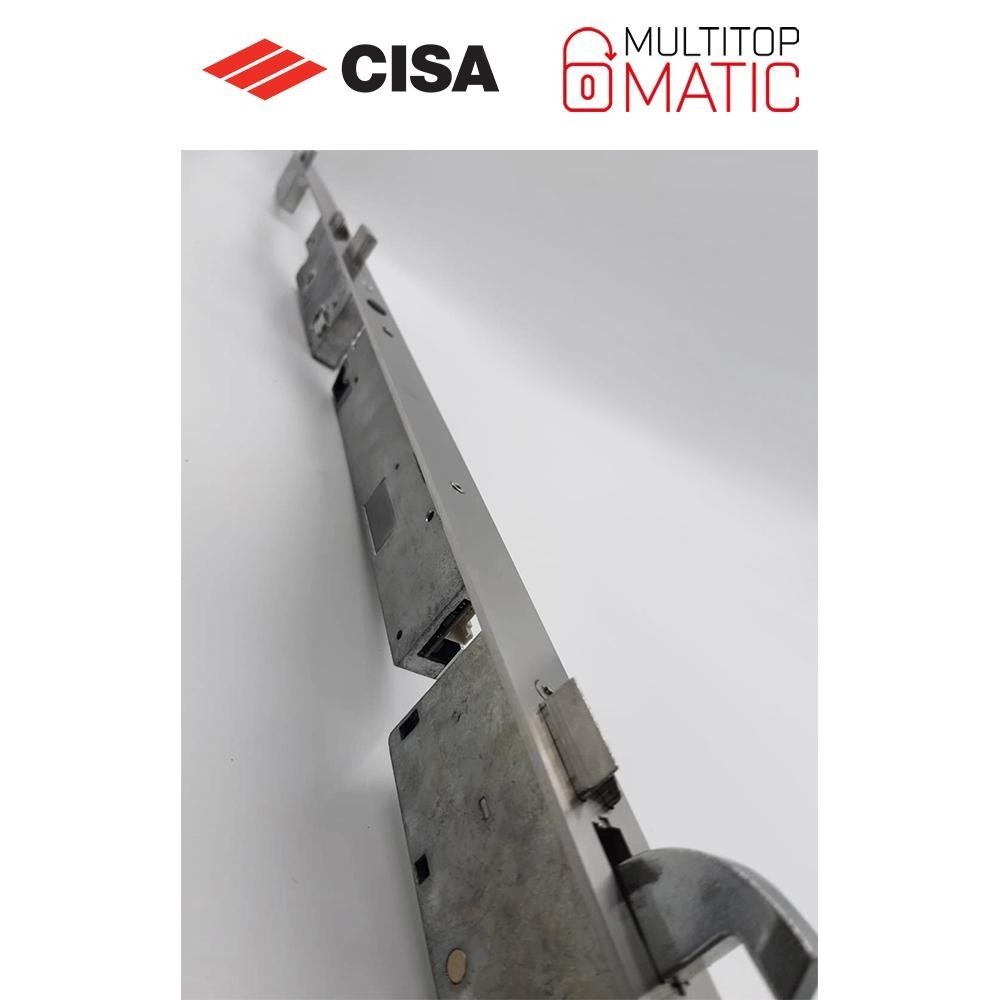

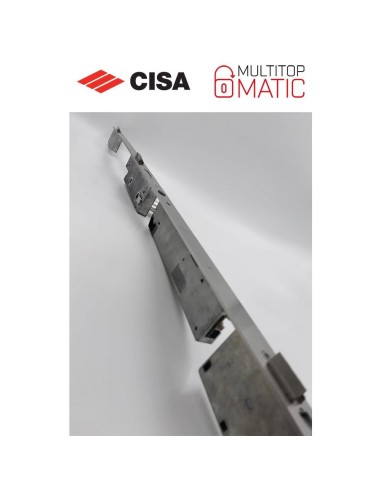

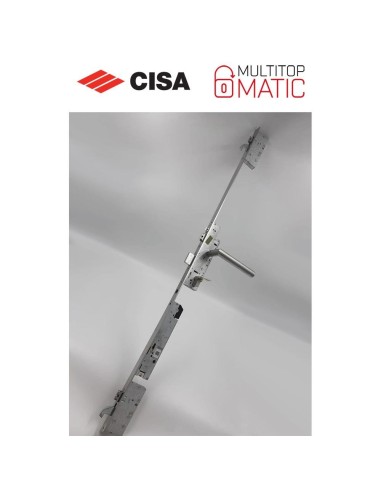

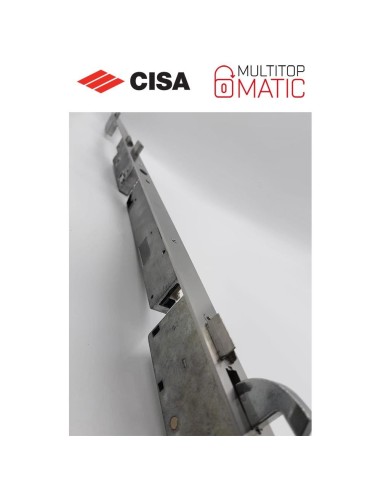

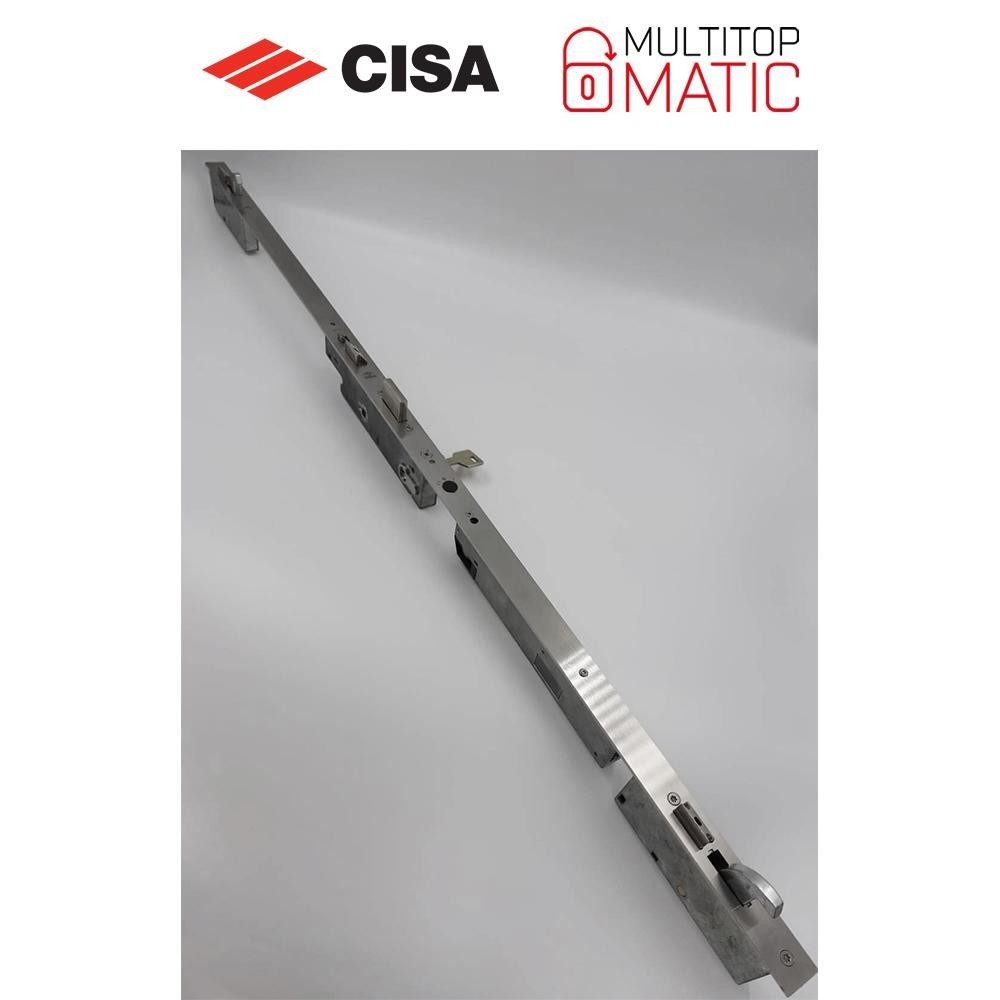

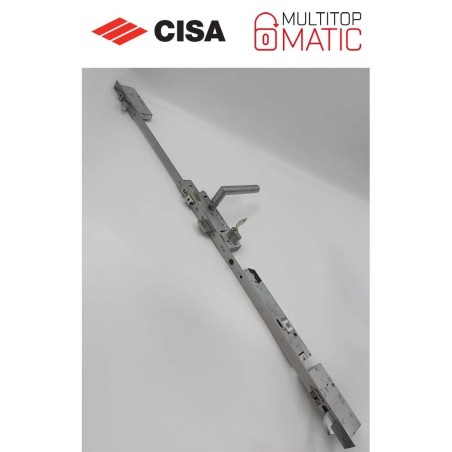

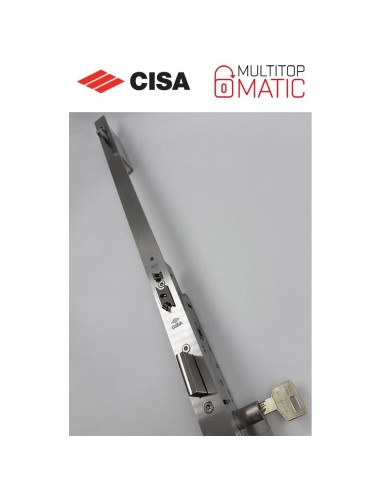

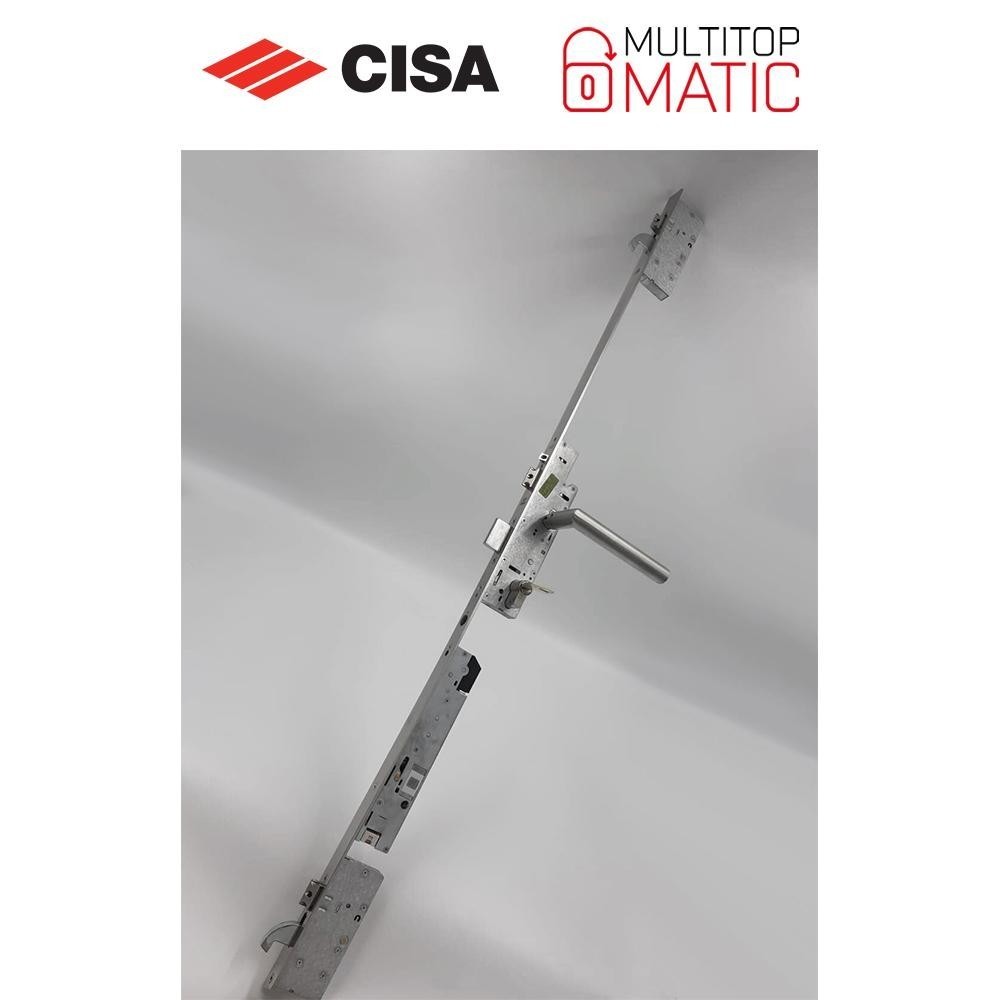

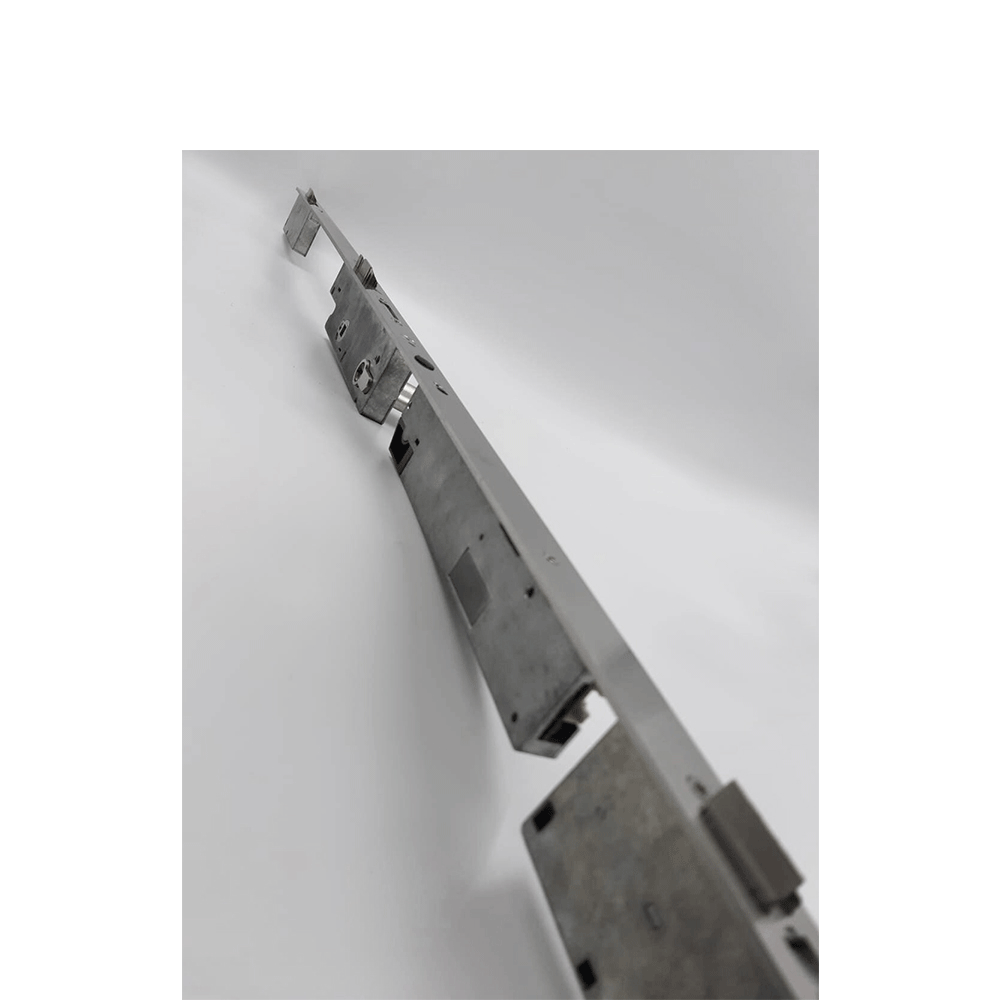

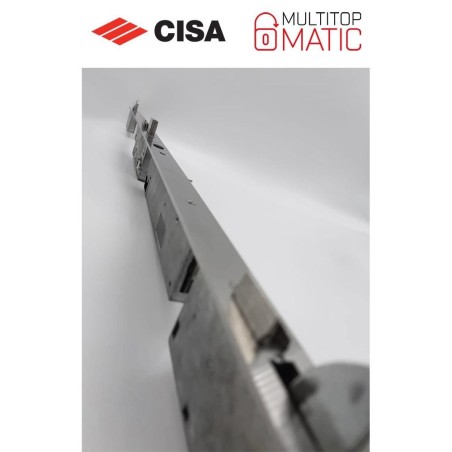

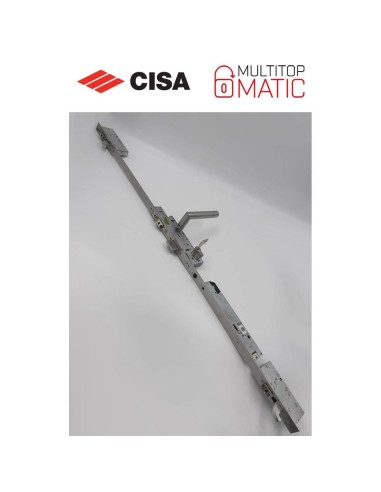

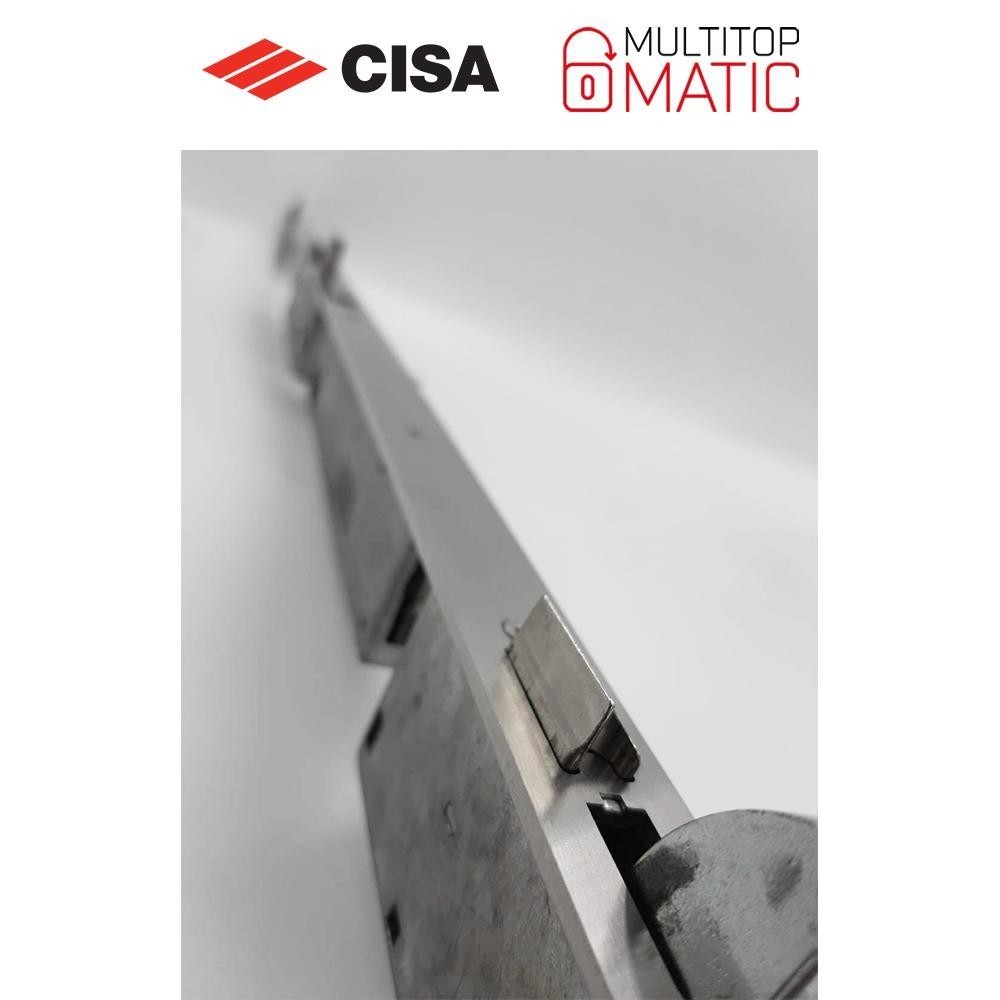

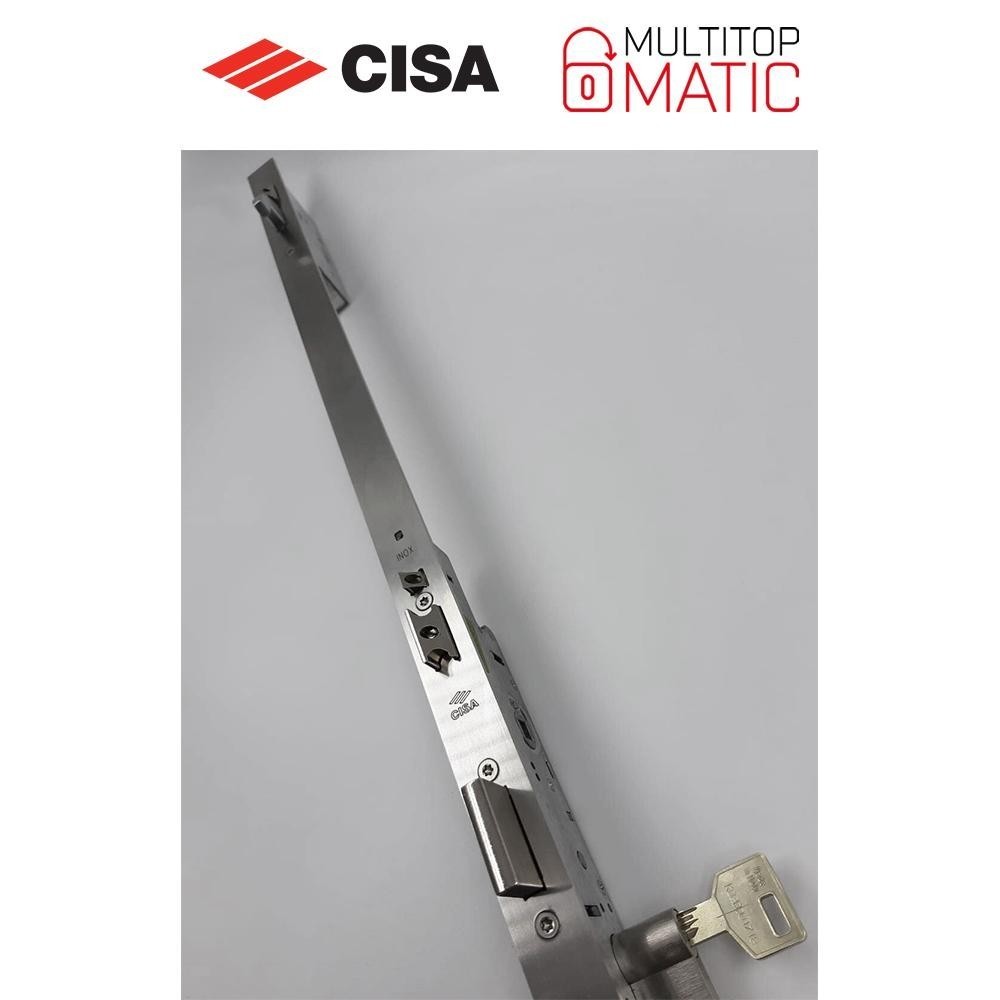

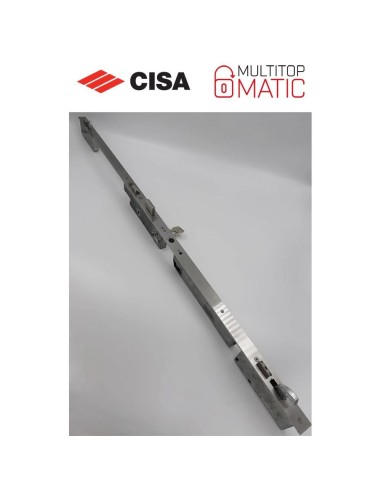

Lock art. 4A10035 mechanical multi-point Multitop Matic for automatic doors with keyless locking entry 35 6 locking points 1 throw 85 mm centre distance 24 mm U-shaped front.

BROCHURE

ASSEMBLY INSTRUCTIONS

VIDEO

"



Cisa Multitop Matic multi-point mechanical lock with entry 35 front U-shaped series 4A100-35


If you are looking for an automatic product that can guarantee excellent operation, do not miss the opportunity to purchase the Cisa Multitop Matic multi-point mechanical lock with 35 front U-shaped entry: thanks to its mechanism, this product ensures total locking in every situation, even remotely!


U-shaped shaving front 24 × 5 mm in stainless steel h. 2300 mm

- upper shaving width 350 mm

- lower shaving 150 mm
Central lock latch adjustable from 10 to 16 mm and self-locking
2 adjustable side locking points snaps from 9 to 15 mm
Automatic reset sensor adjustable from 9 to 15 mm

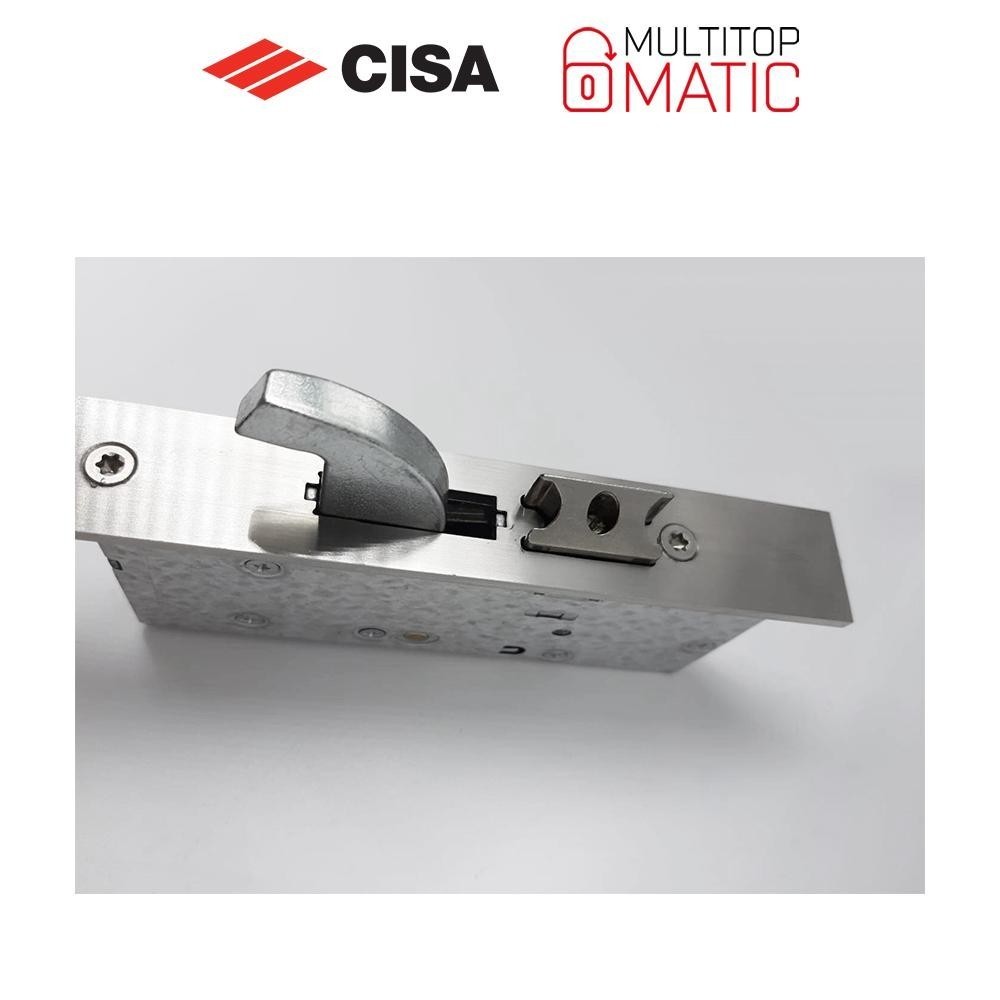

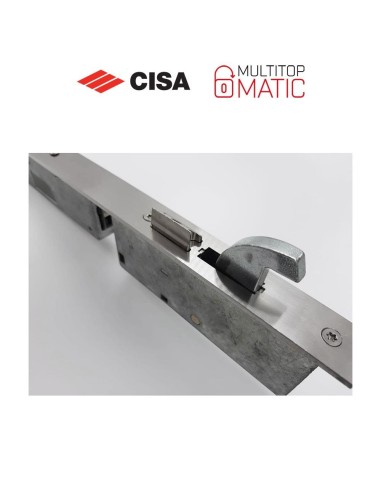

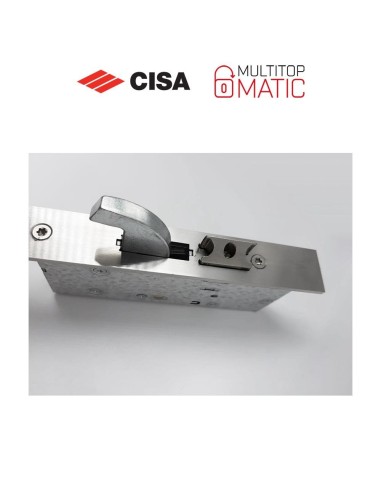

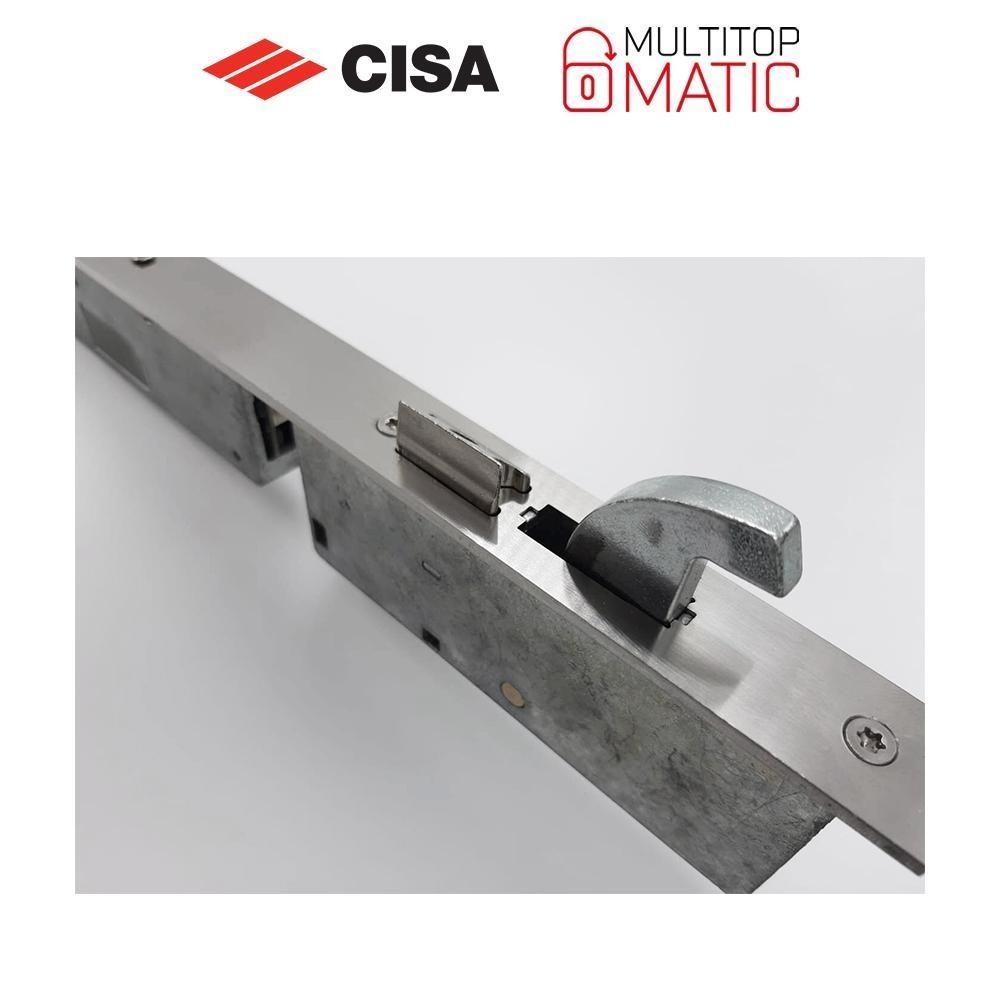

2 hardened steel hooks



Cisa Multitop Matic Lock




Tranquility lives here.

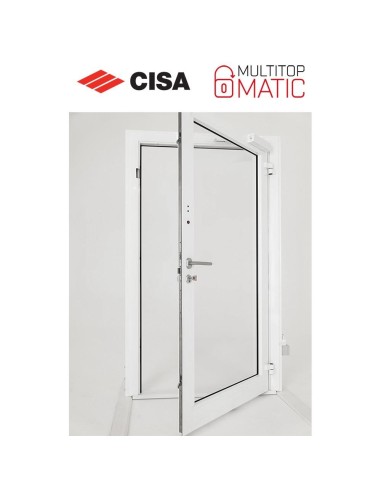

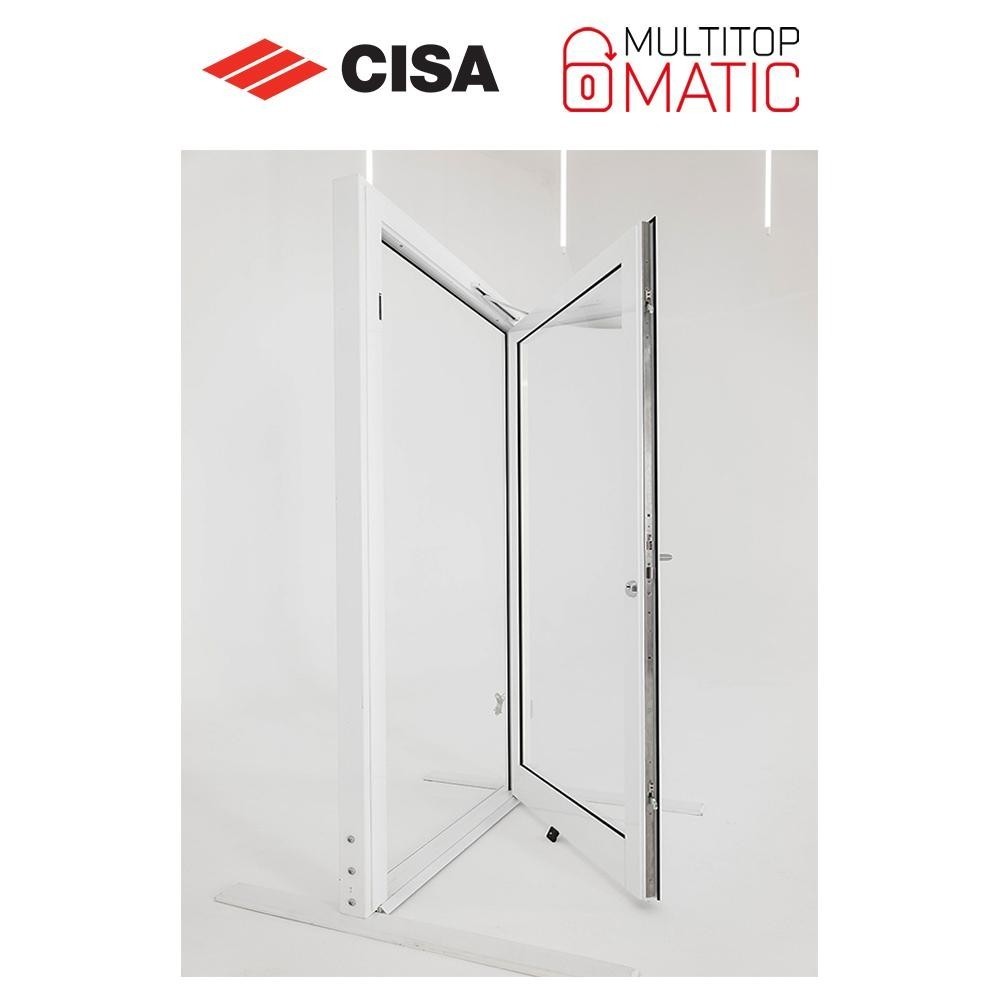

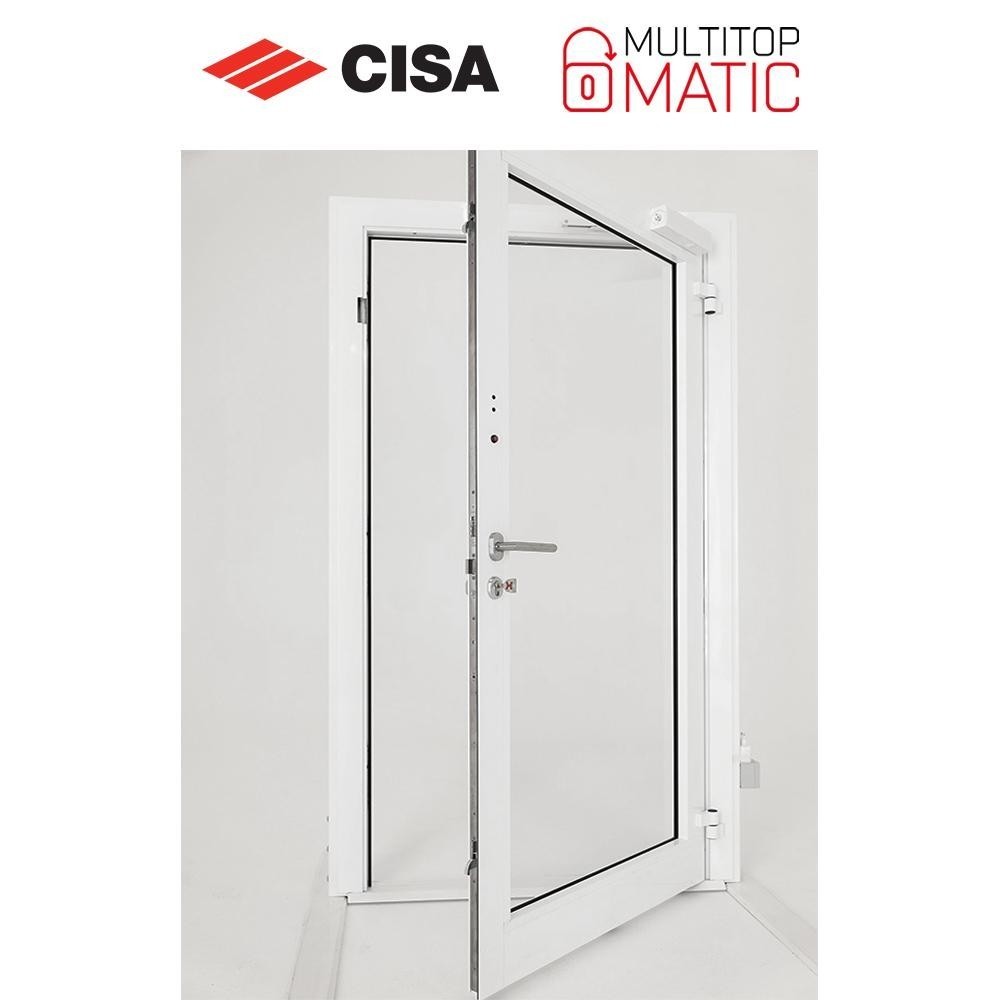

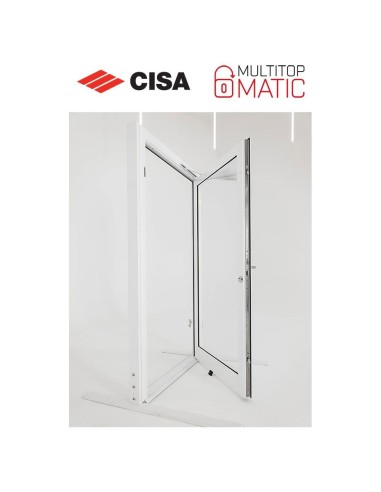

The new locking system for aluminum and iron doors.


Without using the key, the door is safely closed thanks to the automatic release of the bolts.
From the inside, the door opens immediately by simply lowering the handle.
With the integration of the Cisa Motor it is possible to open the door remotely even from a distance.


The Multitop Matic system with integrated Cisa motor is ideal for:


entrance doors of public or commercial residential buildings
secondary entrance doors
sliding doors



All the strengths to your advantage.


Cisa Multitop Matic Lock


AUTOMATIC CLOSING ALWAYS IN SAFETY


By placing the door leaf close to the door leaf, the 3 latches and 3 hook bolts automatically close.


Cisa Multitop Matic Lock Safely lock the door without using the key


Cisa Multitop Matic Lock Door always closed in 6 points


Cisa Multitop Matic Lock Comfort and safety




Cisa Multitop Matic Lock


3 CRACKS ALWAYS IN GRIP


They guarantee a hermetic closure of the door and the free sliding of the hooks thanks to a greater thickness of the latches.


Cisa Multitop Matic Lock Energy saving and acoustic improvement (door always aligned)


Cisa Multitop Matic Lock Guaranteed hook release: once the 3 latches have entered the counterplates, the hooks are free to move without jamming both when exiting and when returning




Cisa Multitop Matic Lock


INTERCHANGEABILITY OF THE WORKING SLOTS ON THE PROFILE


It allows you to keep the current machining slots of all locks belonging to the Multitop family (Pro and Max) on the profile, except for the profiles where additional machining is required in the glass stop area. It also allows you to keep the counterplates already in use for all locks of the Multitop family.


Cisa Multitop Matic Lock Unique setting of the machining slots for all locks of the Multitop family


Cisa Multitop Matic Lock It is possible to choose the lock even after machining the grooves on the profile


Cisa Multitop Matic Lock Reduction of warehouse stock




Cisa Multitop Matic Lock


HANDLE LOCK FUNCTION


The door can be opened immediately from the inside by simply lowering the handle because the 3 latches and 3 bolts retract simultaneously. This function can be excluded by turning the key in the closing direction of the lock.


Cisa Multitop Matic Lock Handle lock preventing unwanted opening of the door from the inside


Cisa Multitop Matic Lock Deactivation of the Cisa Motor if the accessory has been installed


Cisa Multitop Matic Lock Greater security against break-in attempts from outside




Cisa Multitop Matic Lock


CISA ENGINE


It allows you to open the lock remotely. It is an accessory that can be installed on request and is unique for the entire range of Multitop Matic locks.





Cisa Multitop Matic Lock


Cisa Multitop Matic Lock


By adding the Cisa Motor accessory to the Multitop Matic, it is possible to open the door electrically from a distance.




Cisa Multitop Matic Lock


REMOTE OPENING


It allows you to open the lock remotely even when the door is safely closed with 6 locking points. The opening can be controlled by any credential including those indicated below.


Cisa Multitop Matic Lock




Cisa Multitop Matic Lock


EASY TO ASSEMBLE ACCESSORY


It can motorize all the locks in the Multitop Matic range and can be installed directly on the front very quickly and easily.




Cisa Multitop Matic Lock


ELECTRIC DAYTIME STOP


It is possible to activate the day hold function in which the door will always remain open during pre-set periods during the day.




Cisa Multitop Matic Lock


AUDIBLE/VISUAL SIGNALS


It has an acoustic and visual signal to indicate opening and closing.





Cisa Multitop Matic Lock





Cisa Multitop Matic Lock




Cisa Multitop Matic Lock

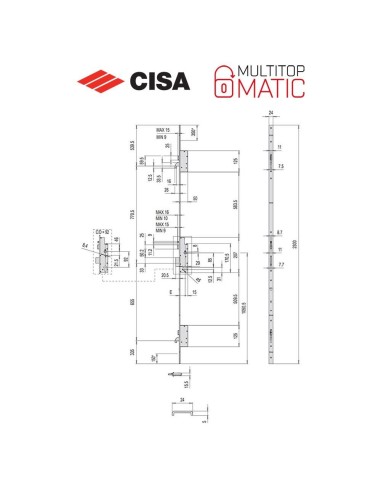

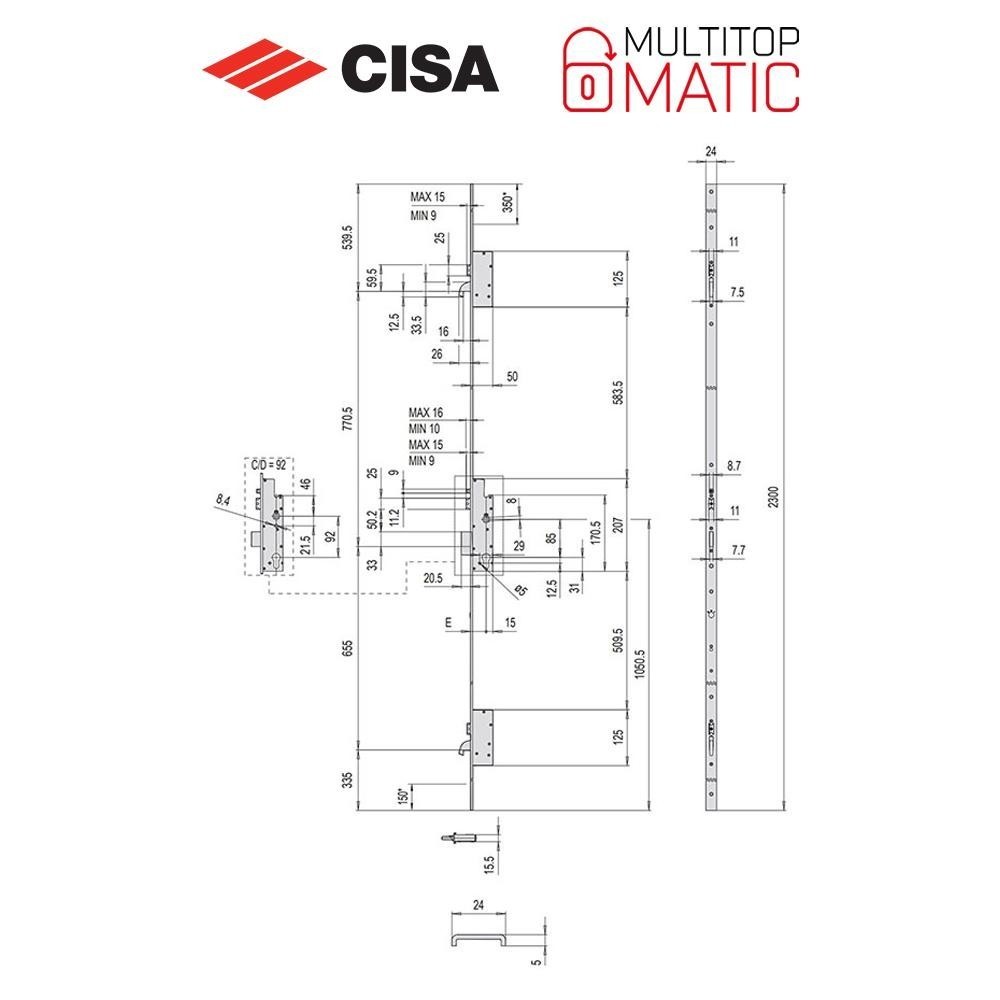

Dimensions
AND 35


"
4A10035
8015346104017
