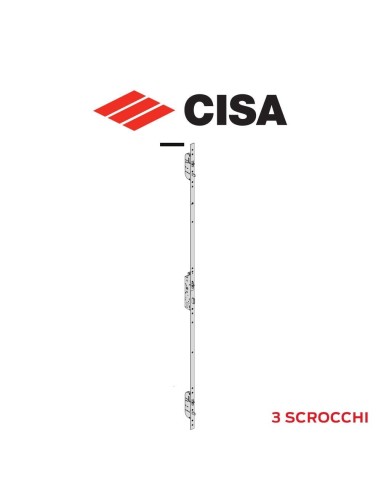

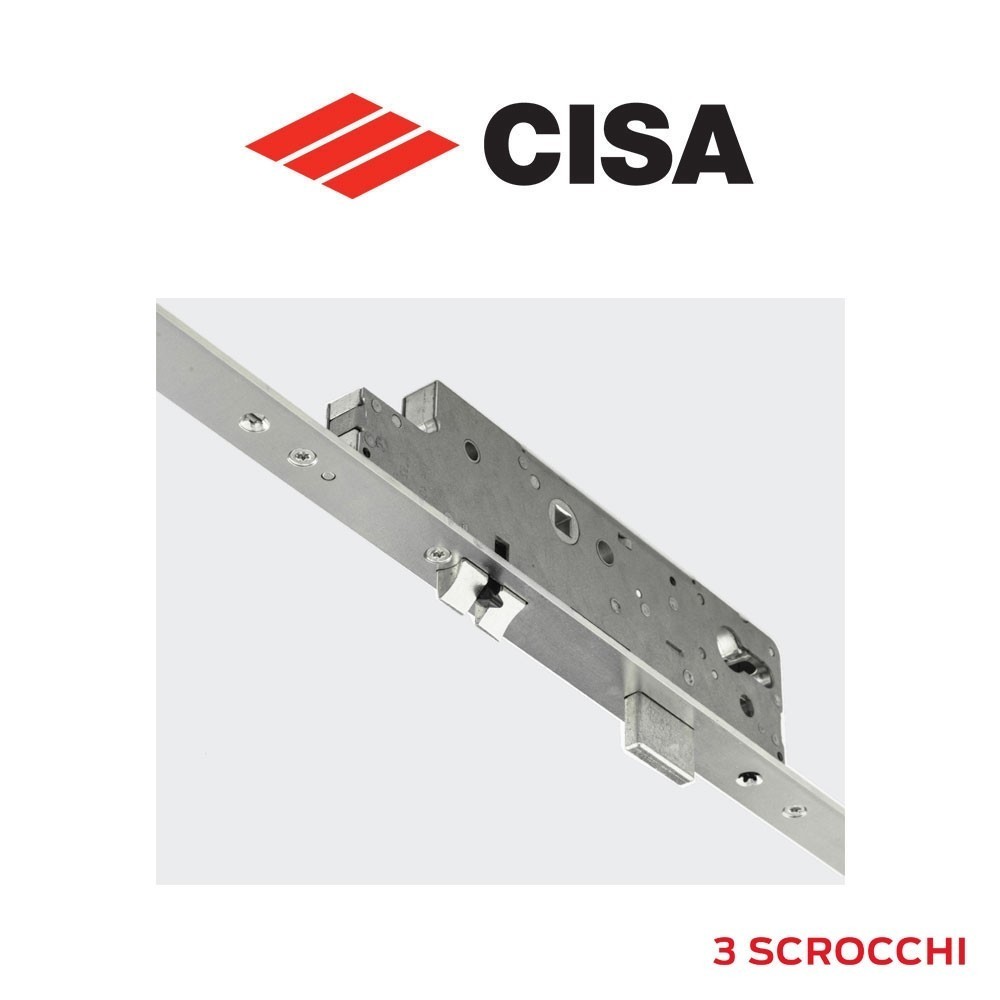

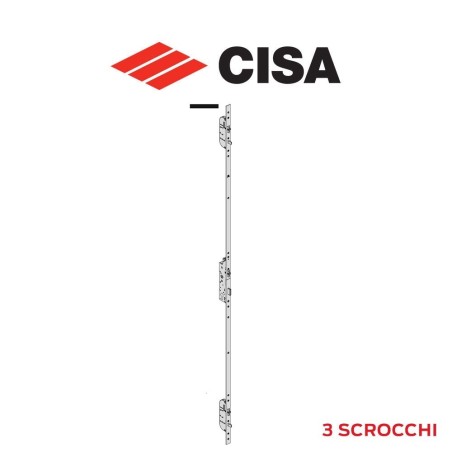

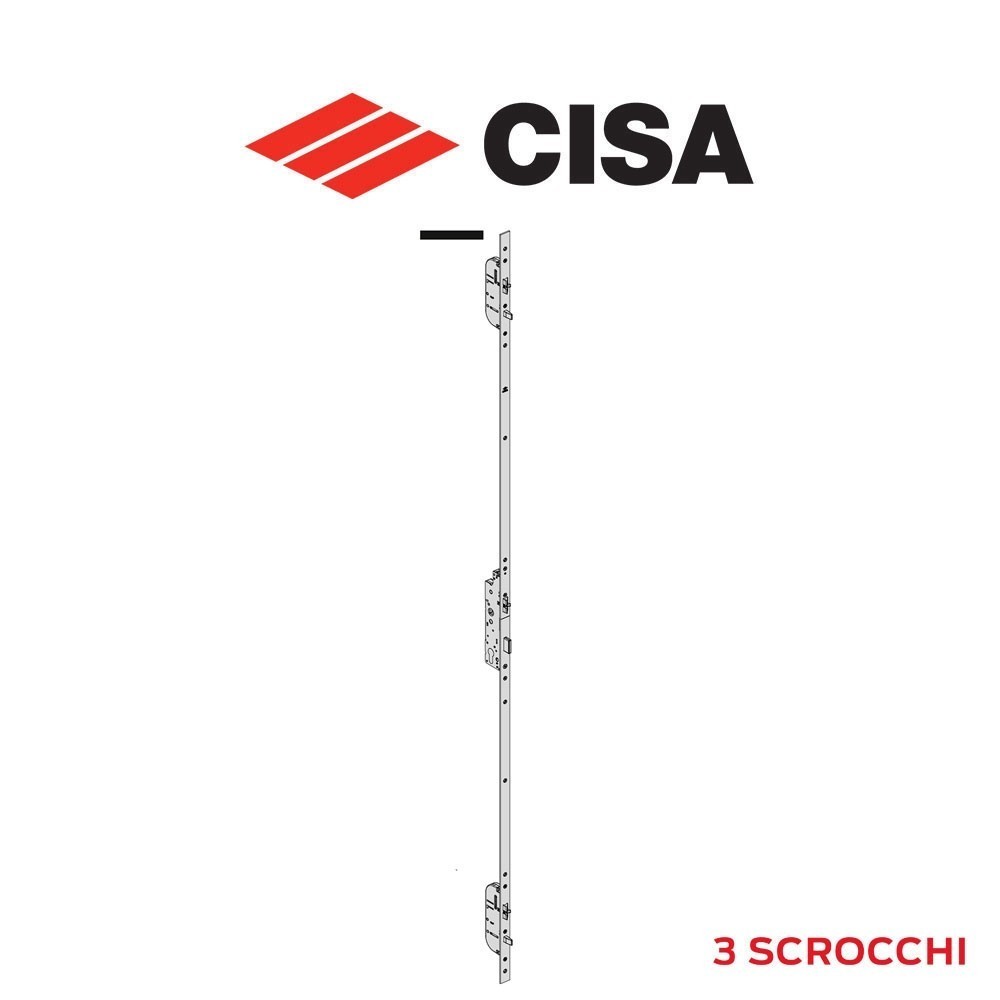

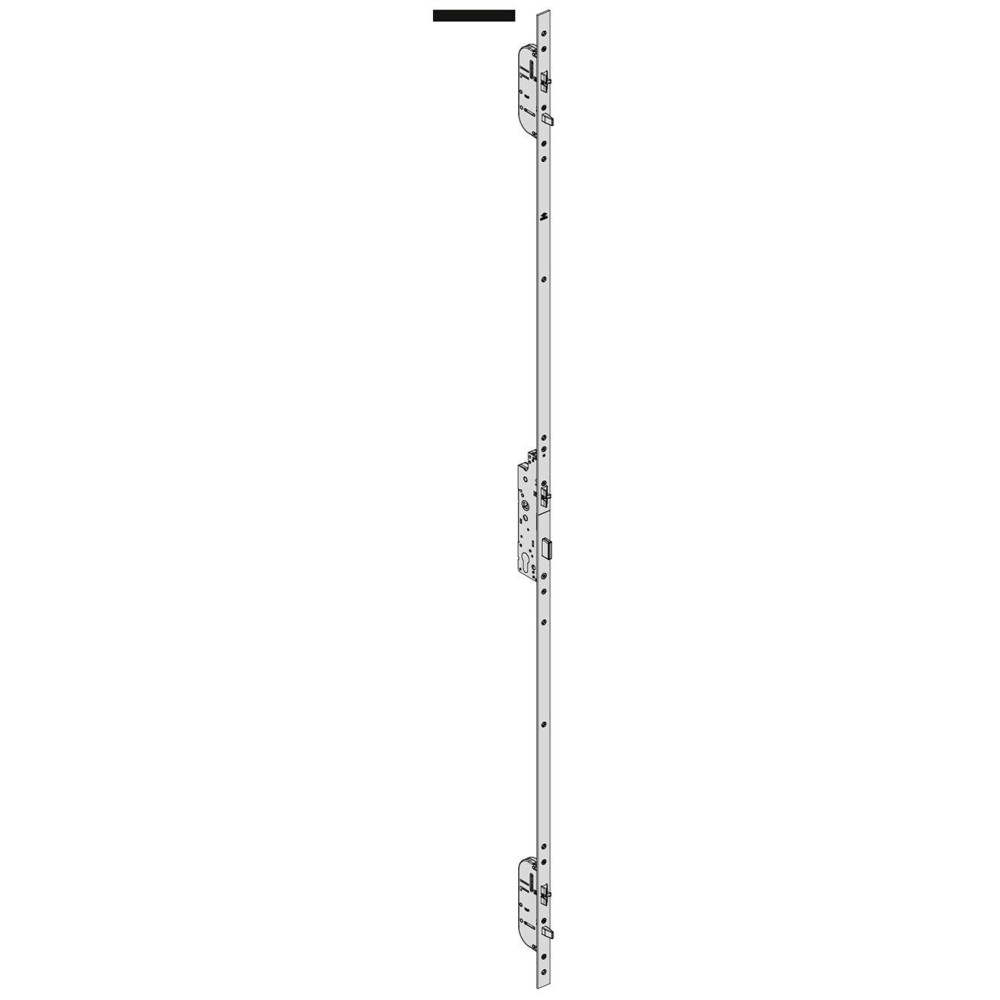

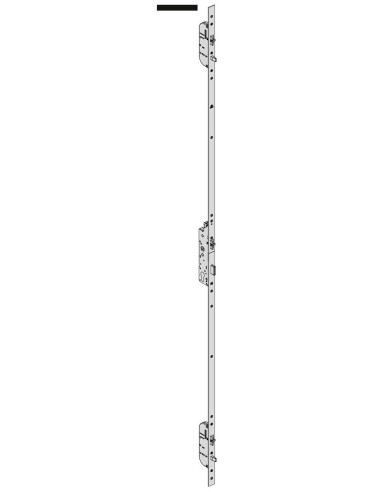

Cisa multipoint mechanical lock 3 latches entry 35 flat front series 48916-35

The Cisa 3 latch multipoint mechanical lock with 35 entry flat front is perfect if you want a 100% secure device even without a key. This product can also work without a key by locking each entry in a simple gesture.

U-shaped trimmable front 24 × 3 mm in galvanized steel h. 2300 mm

- upper shaving width 350 mm

- lower shaving 150 mm
3 side bolts
3 latches 11 mm thick

SAFETY EVEN WITHOUT USING THE KEY

When closing the door, the 3 latches come out automatically without using the key.
The combination of 3 latches and 3 deadbolts guarantees high security against burglary.

DOOR THERMAL DISTORTION RECOVERY

The rack mechanism that lightens the rotation of the key and the 3-latch locking system allow you to recover from door distortions due to temperature changes.

AREAS OF USE

Entrance doors
Secondary entrance doors

---

ADVANTAGES

For the end user

3-point locking without using the key.
Energy saving and acoustic improvement.

For the installer

Reduction of maintenance time and costs.
Perfect door alignment.

For the designer or architect

Designed in accordance with European Standard pr EN15685.
Operation with European profile cylinder that can be integrated into master key systems for access management.

---

OPERATION

From inside and outside: the 3 latches come out automatically when you close the door without having to use the key and therefore the door is always closed in 3 points.

From the inside: the 3 latches can be opened with the key or by simply operating the handle. The 3 deadbolts can only be closed and opened with the key. Closing the deadbolts puts the handle in neutral and the latches cannot be recalled.
From the outside: the 3 latches can only be opened with the key. The 3 deadbolts can only be opened and closed with the key.

Benefits:

Ease of use of the 3 latches of the lock as it is not necessary to use the key to close.

CERTIFICATIONS

Security Grade 3 according to European standard EN15685. Grade 3 makes the lock suitable for EN1627 certified doors up to resistance class WK/RC2.
The lock can be CE certified by German institutes (Rosenheim) because it is always closed in 3 points without having to close with the deadbolts.

---

INTERCHANGEABILITY

Perfectly interchangeable with Multitop Pro central lock.
Non-interchangeable diverters (180 mm slot).

SILENT CRACKING

The 3 latches of the lock have a device (anti-friction) that makes the closing silent and soft.

Benefits:

Noise reduction.

CLOSED BOX THICKNESS 15.5 MM

The lock and switch boxes are closed and have a thickness of 15.5 mm.

Benefits:

Residues and dirt cannot enter.
No tampering is possible during the assembly phase.
Reduction of holes on the profile and guarantee of correct installation on thermal break and European chamber profiles.

COUNTERPLATES

Transverse adjustment for correct door installation.
With nylon box for aesthetic protection of the bolt hole.

Kit composition:

1 counterplate for central lock
2 counterplates for additional locking points

Counterplate kit for the following profiles:

Reversible European Chamber
Type R (overlapping) R and L
Right and left door (NC65 STH door type)
Right and left iron profiles

---

Dimensions
AND	35

"
