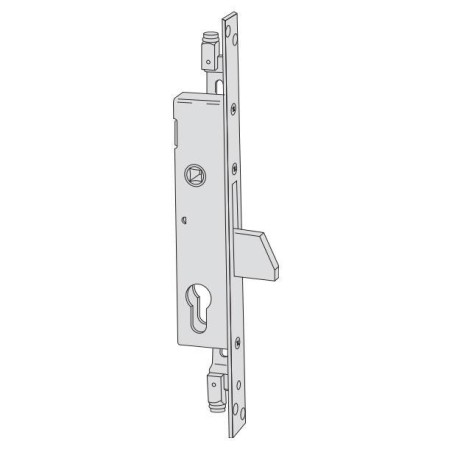

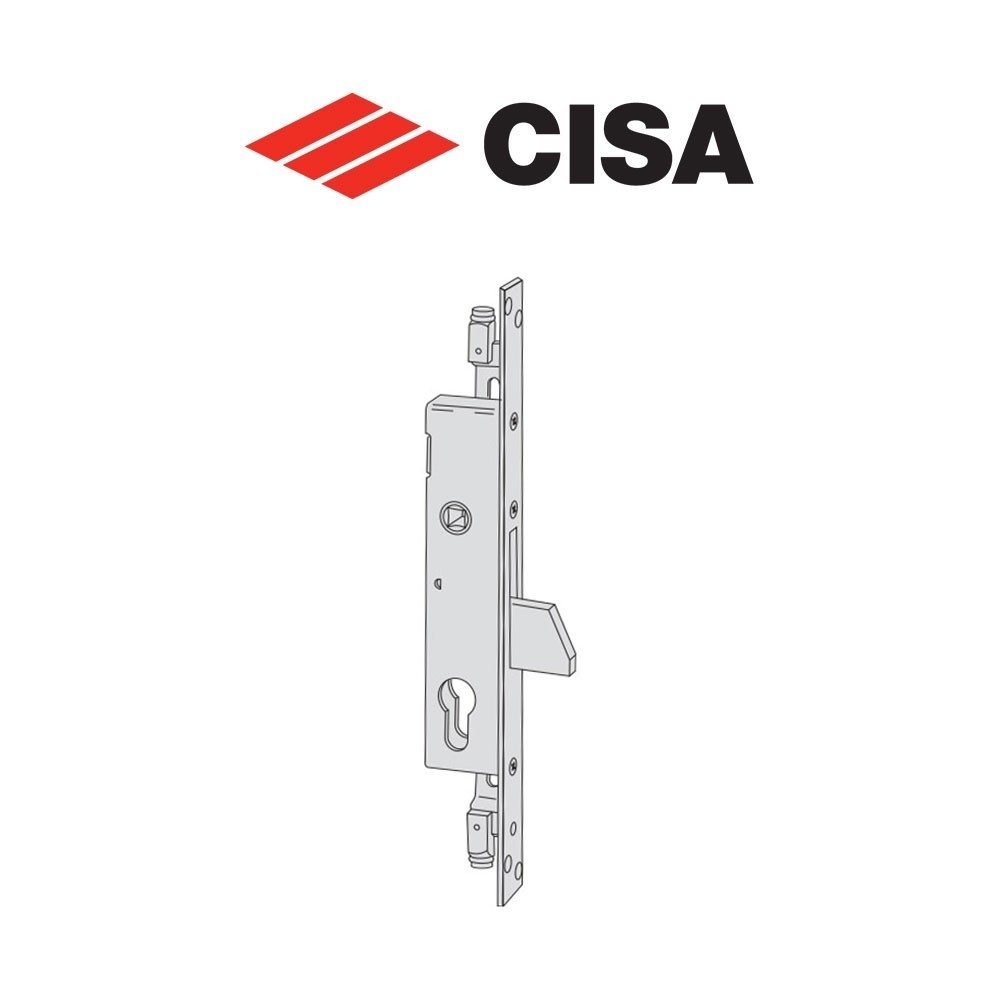

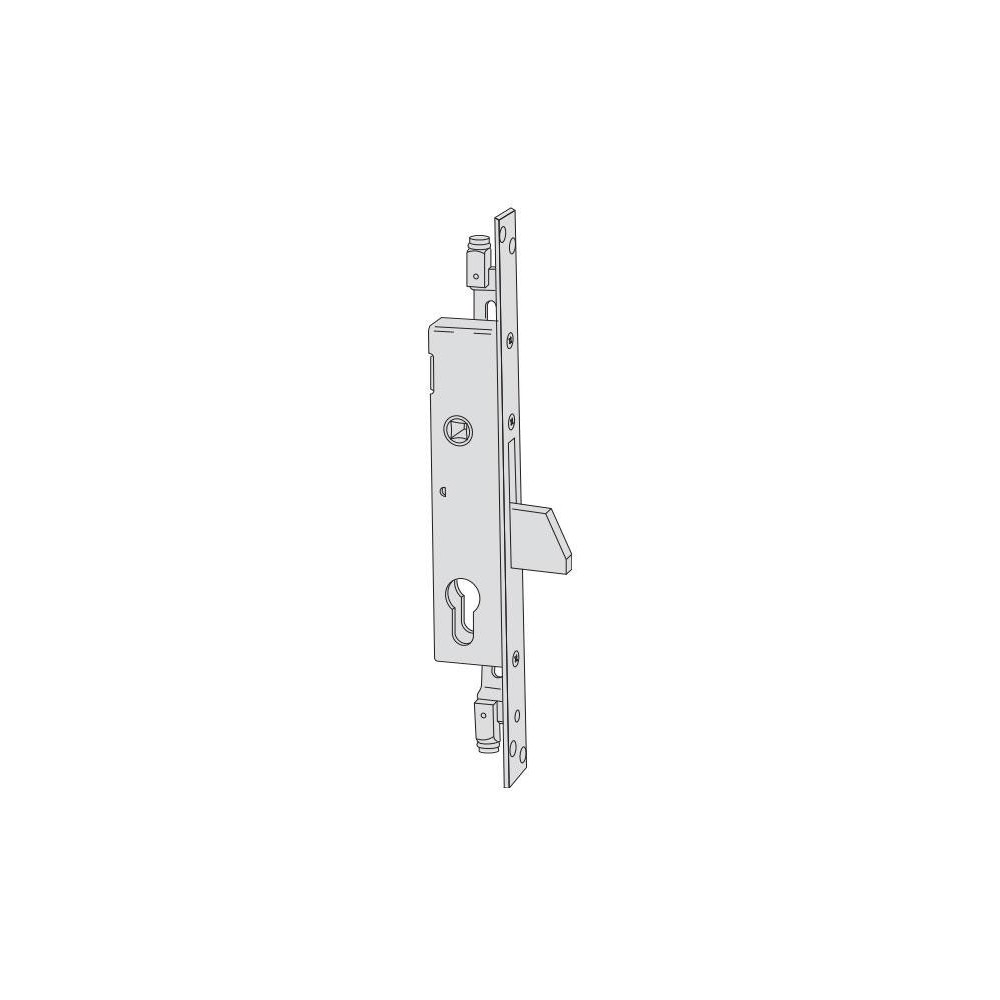

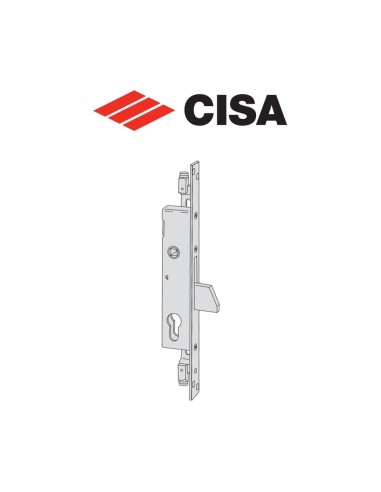

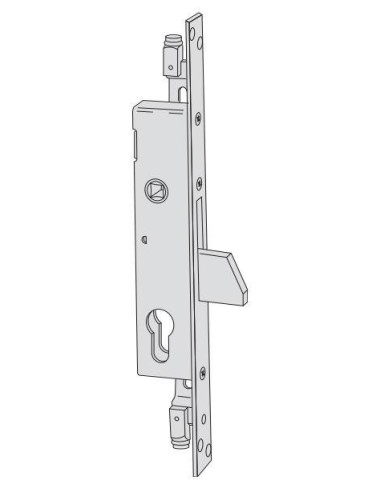

Mechanical cylinder lock for shutters Cisa entry 30 series 46800-30
Mechanical cylinder lock for shutters Cisa entry 30 series 46800-30
Mechanical cylinder lock for shutters Cisa entry 30 series 46800-30
Mechanical cylinder lock for shutters Cisa entry 30 series 46800-30
Mechanical cylinder lock for shutters Cisa entry 30 series 46800-30
Mechanical cylinder lock for shutters Cisa entry 30 series 46800-30
Mechanical cylinder lock for shutters Cisa entry 30 series 46800-30
Mechanical cylinder lock for shutters Cisa entry 30 series 46800-30

Mechanical cylinder lock for shutters Cisa entry 30 series 46800-30

€32.33 + taxes

€39.44 Tax included

Lock art. 4680030 mechanical with ambidextrous cylinder to be inserted, entry 25 for shutters, single throw, centre distance 85 mm, front 25 mm without cylinder.



Mechanical cylinder lock for shutters Cisa entry 30 series 46800-30


Lock art. 4680030 mechanical cylinder ambidextrous to be inserted, entry 30 for shutters, single throw, centre distance 85 mm, front 25 mm without cylinder.


Nickel-plated bolt
Internal steel stud
Provision for additional closures with M8 threaded bushings


Technical features:


25mm travel of the transmissions
Steel box with zinc coating
Stainless steel front
8mm handle square
Beveled metal bolt to aid closing
Nickel-plated bolt
Internal steel stud art. 0609200
Provision for additional closures with M8 threaded bushings


Drive:


The handle activates the lock by bringing the swing bolt and the rods into the closed position; the key blocks the handle


Included:


Cylinder fixing screw
Instruction sheet


Certified according to European standard EN 12209:03
Security: grade 3 (500 kg lateral push and 400 kg bottom push)
Suitable for doors certified to EN 1627:2011 up to resistance class WK/RC 2


Cisa lock




Cisa lock




Dimensions
AND 30
"
4680030
8015346033850
