€72.15 + taxes

€88.02 Tax included

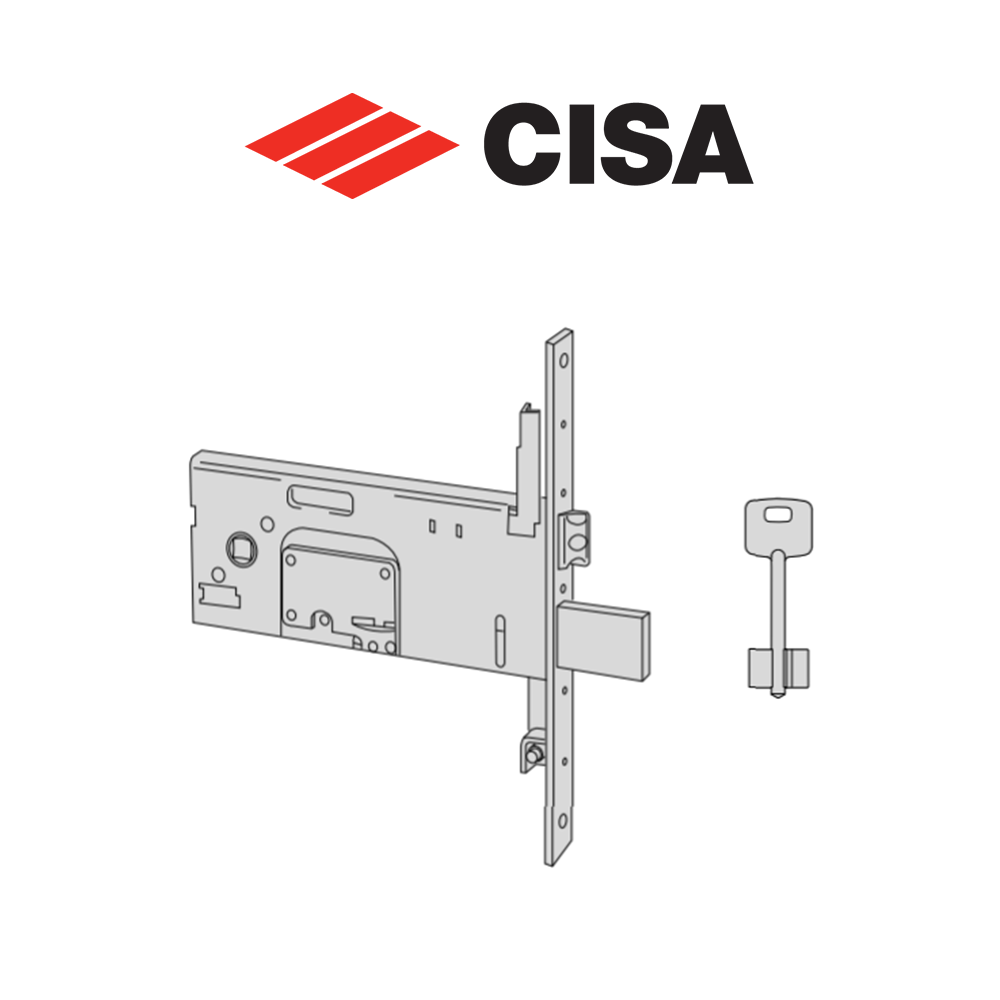

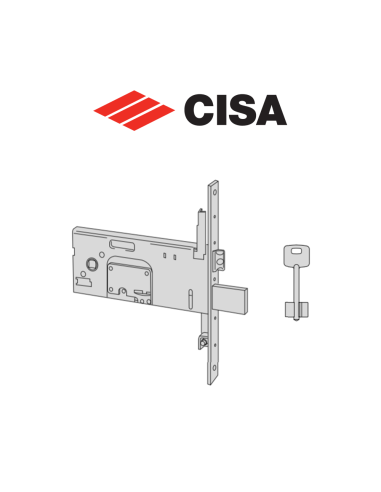

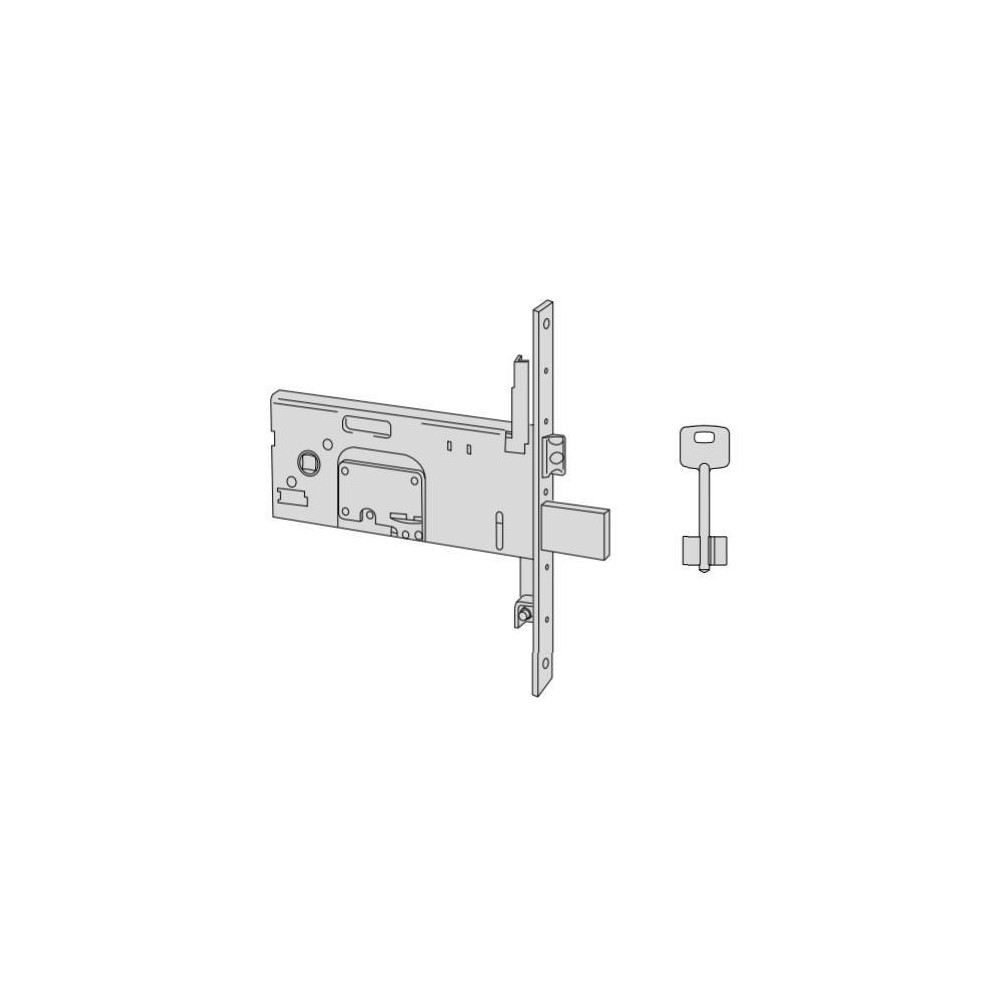

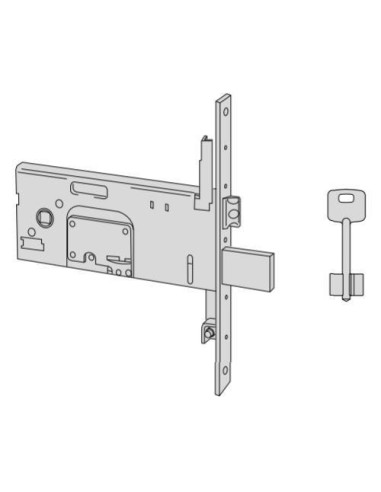

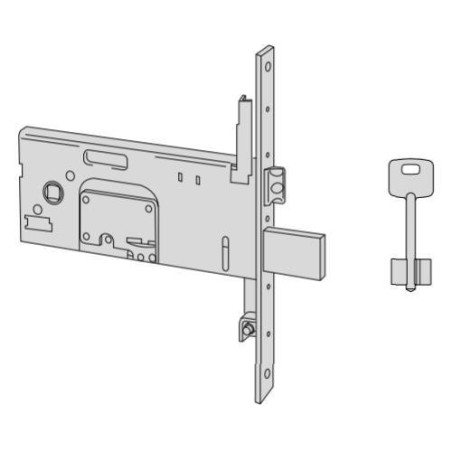

Lock art. 5735790 mechanical double-bit mortise lock, 90° entry for bands, 4 turns, 67 mm centre distance, 22 mm front.



Cisa double bit mechanical lock entry 90 series 57357-90


Lock art. 5735790 mechanical double-bit mortise lock, 90° entry for bands, 4 turns, 67 mm centre distance, 22 mm front.


Box height 78 mm
Deadbolt and latch
Adjustable latch from 11 mm to 17 mm
Provision for additional closures
Threaded pins for fixing extensions

Included:


3 keys art. 0010000 or art. 0010200
Pair of nylon key guide studs item 0612303
Pair of stud fixing screws:

- length 60 mm for the version with key art. 0010000

- length 75 mm for the version with key art. 0010200
Pair of nylon under-front spacers item 0614165
Threaded pins for fixing the closing extensions to the return springs
Lock fixing screws


Cisa lock




Cisa lock




Dimensions
AND 90
"
5735790
8015345101994
