€99.12 + taxes

€120.93 Tax included

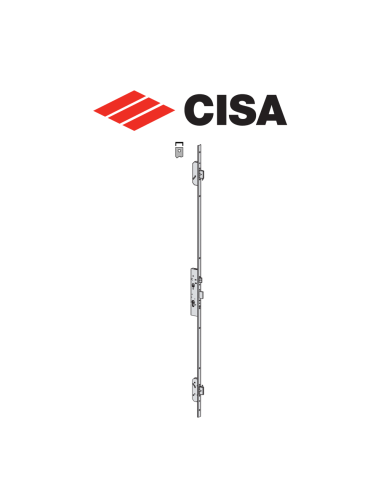

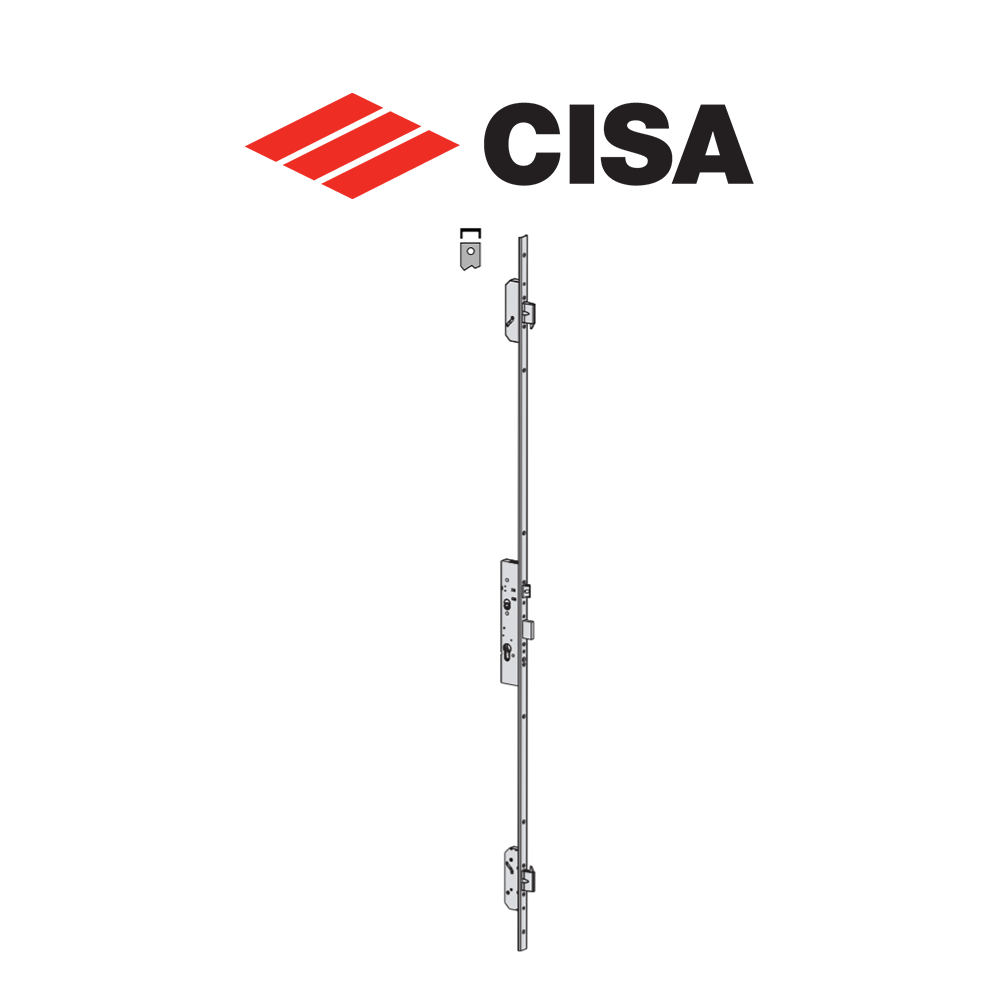

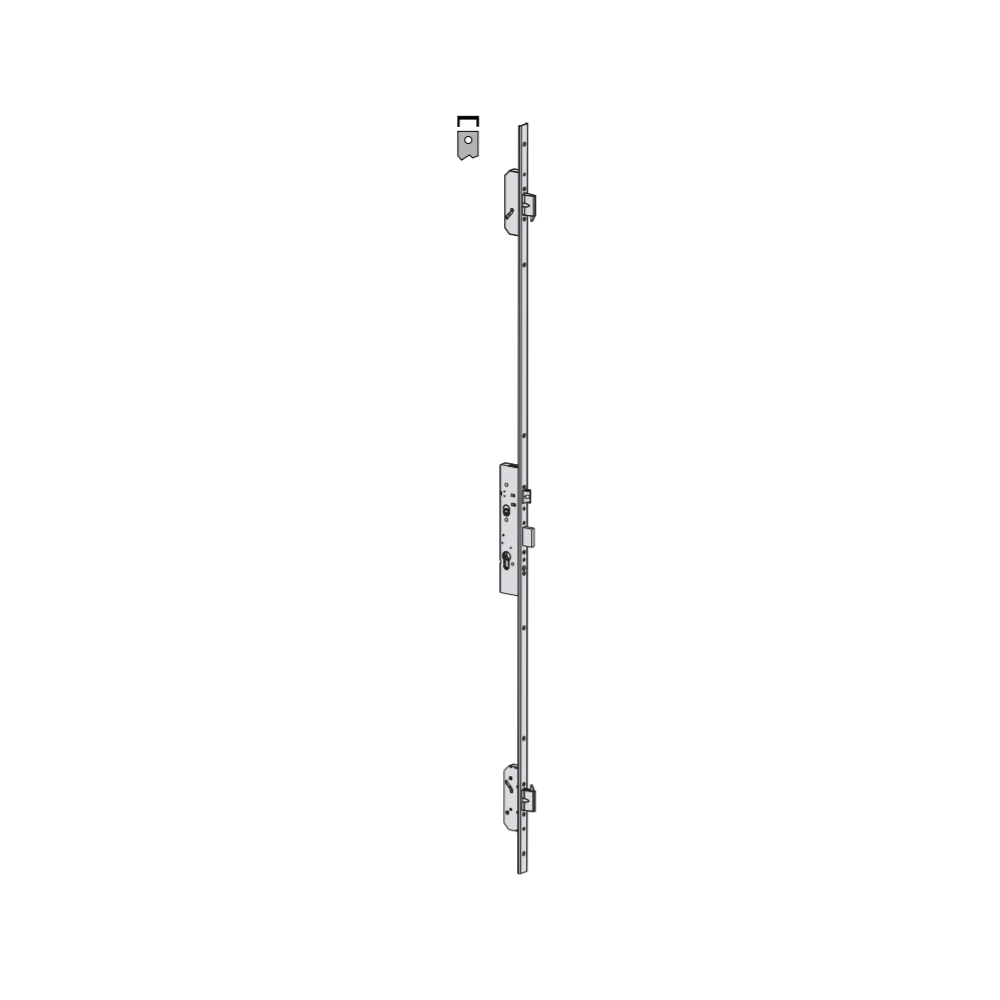

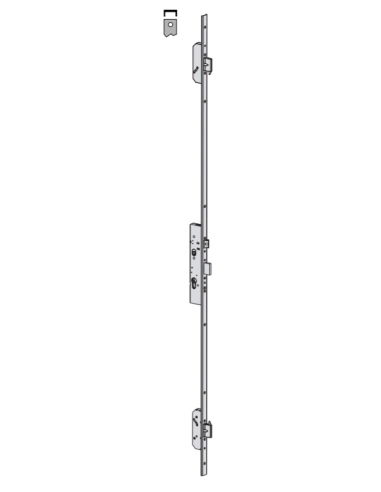

Lock art. 4942625 mechanical multi-point Multitop Pro with mortise cylinder, entry 25, centre distance 85 mm, U-shaped front 24 mm.



Cisa Multitop Pro multi-point mechanical lock with entry 25 frontal U series. 49426-25


Reliable and resistant, the Cisa Multitop Pro multipoint mechanical lock can be implemented on all door models and will help you improve the security of your home in just a few steps thanks to the ease of assembly and the presence of top-quality materials.




Technical features:


Two mandates
3 locking points
U-shaped trimmable front 24 × 7 mm in black painted steel h. 2300 mm

- upper shaving width 350 mm

- lower shaving 150 mm
Adjustable latch and piston from 11 mm to 17 mm
3 side bolts
Nylon head cover caps
Drive device via gear system
Box thickness 15 5 mm
Anti-phasing system
Die-cast metal box with zinc coating
Steel lid with zinc coating
Interchangeable latch with nickel-plated roller and bolt
Provision for 4th and 5th locking point


Included:


Pair of nylon studs art. 0601201
Lock and cylinder fixing screws


Regulations:


Certified according to European standard EN 15685:14
Security: grade 6 (1000 kg lateral push and 600 kg frontal push)
Security: grade 7 (using the 06436 series anti-drill plate)
Suitable for doors certified to EN1627:2011 up to resistance class WK/RC 4 (grade 6) WK/RC (grade 7)


Cisa lock




Cisa lock




Dimensions
T 7mm
AND 25
"
4942625
8015345996101
