€83.71 + taxes

€102.13 Tax included

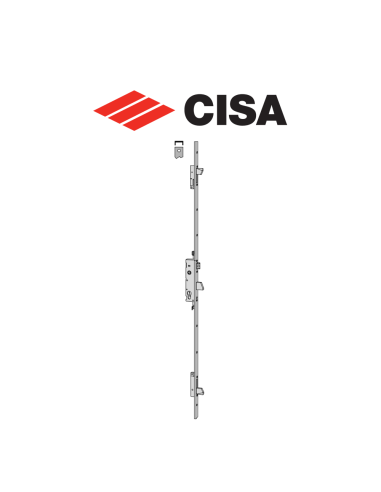

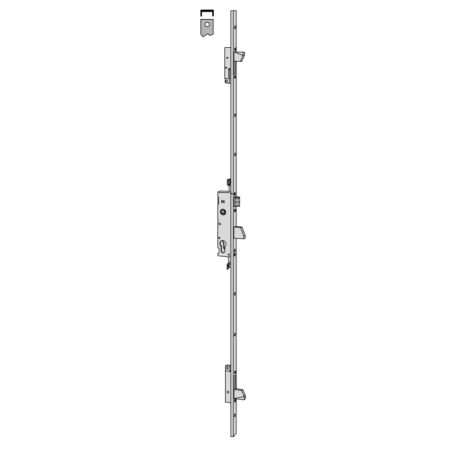

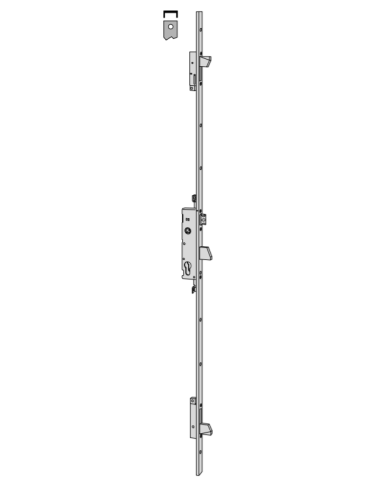

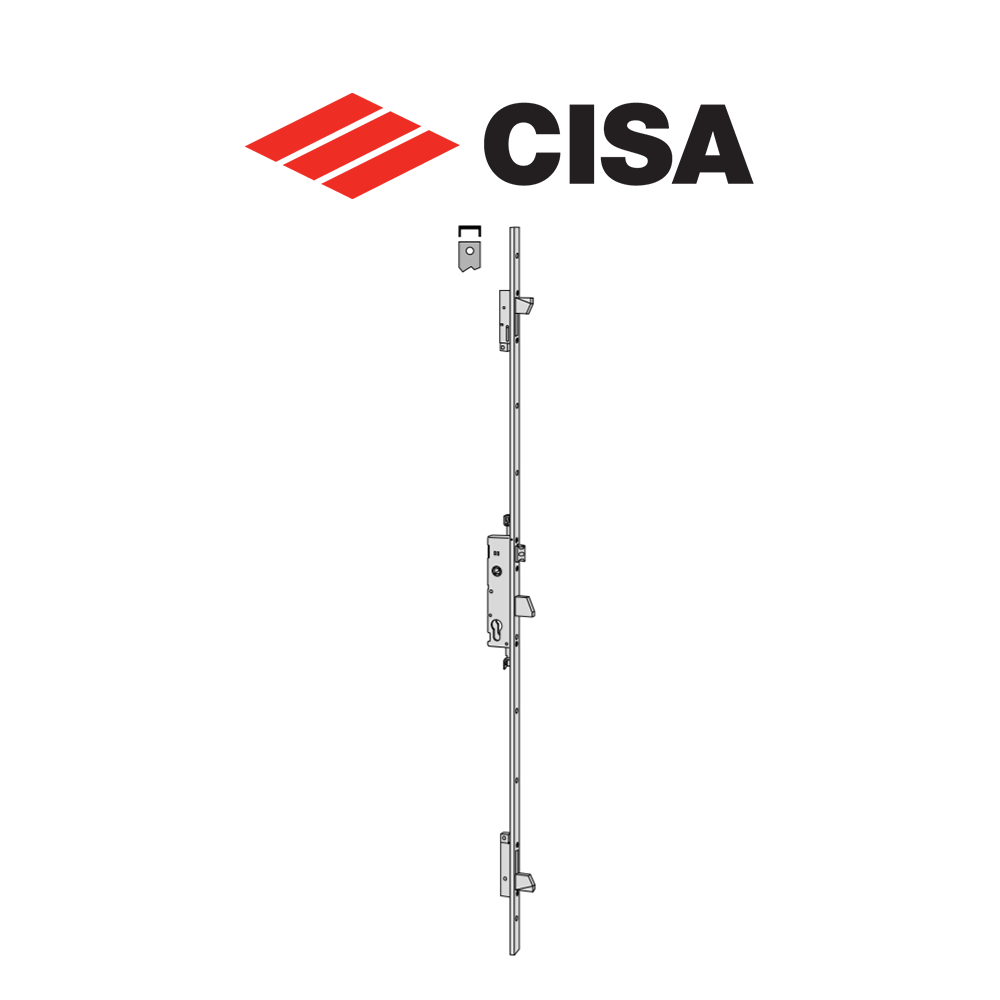

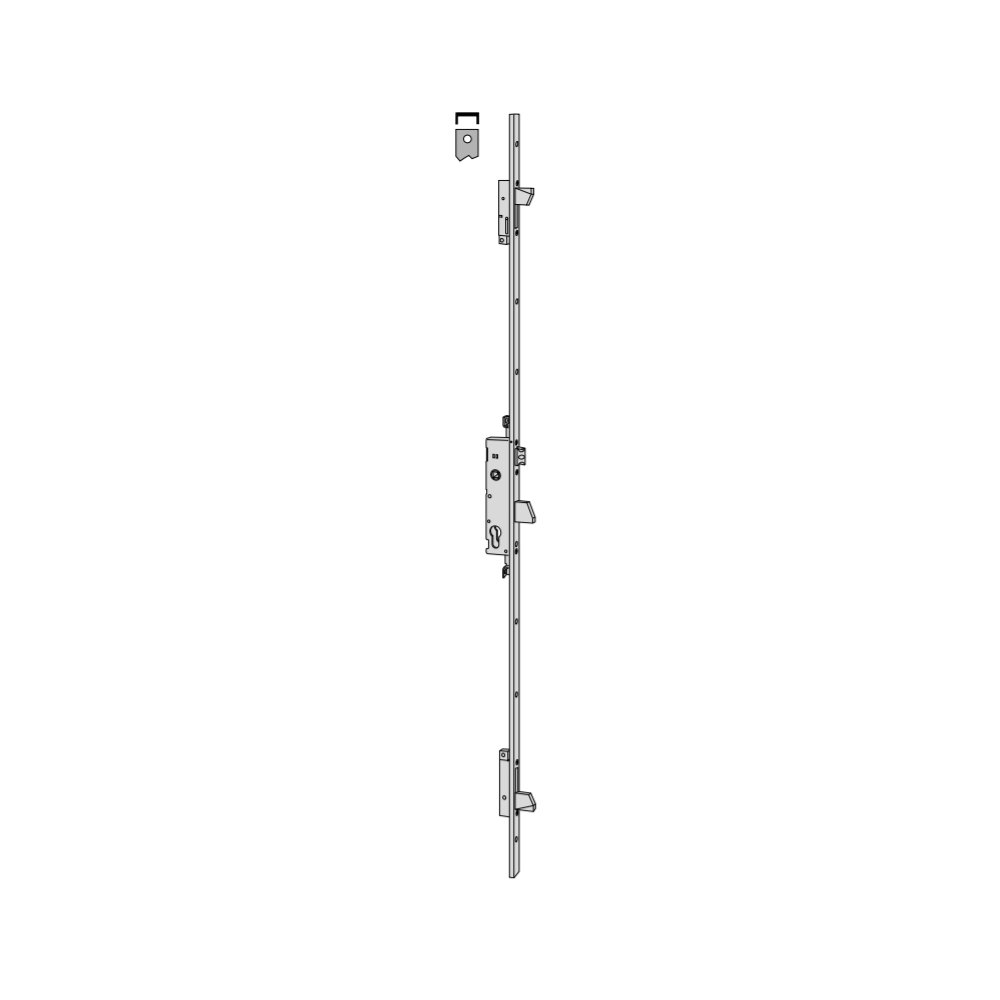

Lock art. 4642530 mechanical multi-point mortise cylinder entry 30 mm centre distance 85 mm U-shaped front 24 mm.



Cisa multi-point mechanical lock entry 30 front U-shaped series 46425-30


The features of the Cisa multi-point mechanical lock make it very easy to manage and customize. The front is trimmable and it is also possible to adjust the latch and piston. Furthermore, thanks to the 3 locking points, this product will ensure maximum security at all times.




Technical features:


A mandate
3 locking points
U-shaped trimmable front 24 × 7 mm in black painted steel h. 2600 mm

- upper shaving width 650 mm

- lower shaving 150 mm
Adjustable latch and piston from 11 mm to 17 mm
3 side bolts
Nylon front cover caps
Steel box with zinc coating
Nickel-plated roller latch and bolt
Latch or reversible latch/piston (where provided)


Included:


Pair of nylon studs art. 0601201
Lock and cylinder fixing screws


Regulations:


Certified according to European standard EN 15685:14
Security: grade 4 (700 kg lateral push and 500 kg bottom push)
Suitable for doors certified to EN1627:2011 up to resistance class WK/RC 3


Cisa lock




Cisa lock




Dimensions
THE 2600 mm
T 7mm
B 650 mm
AND 30
"
4642530
8015345086710
