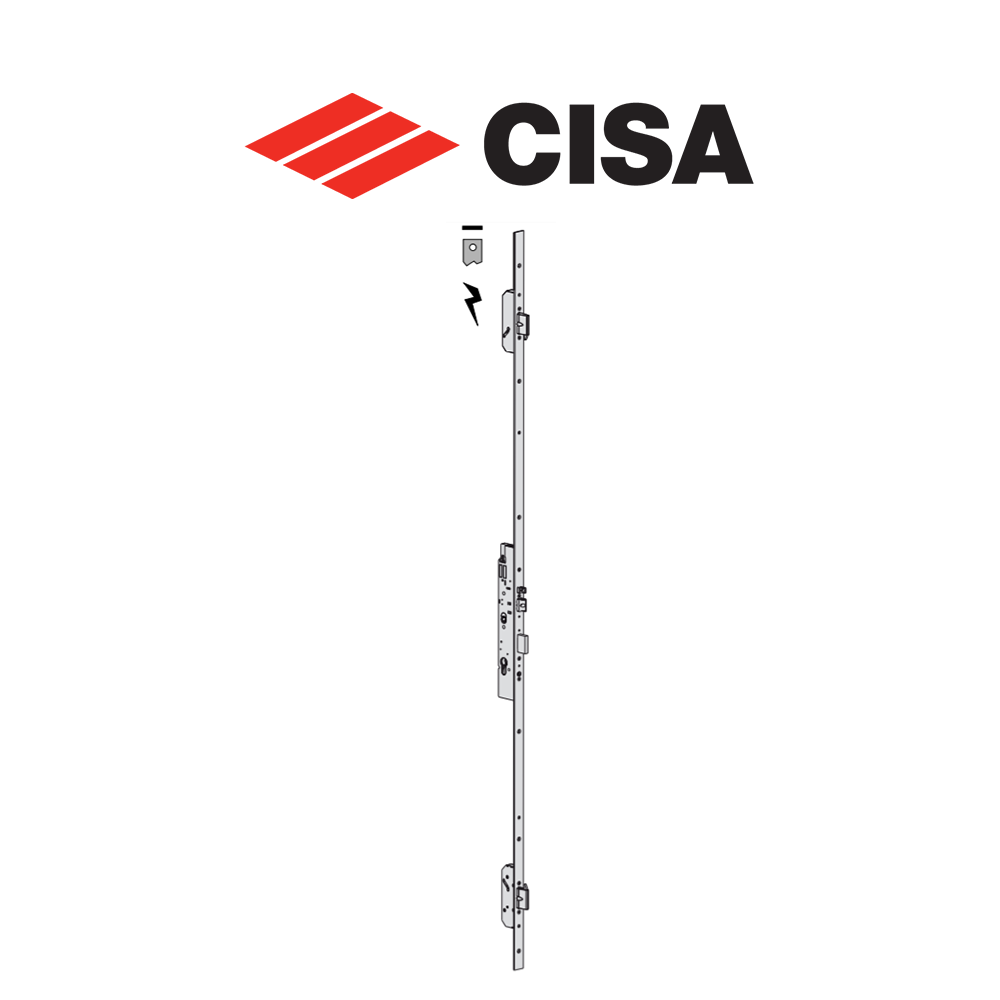

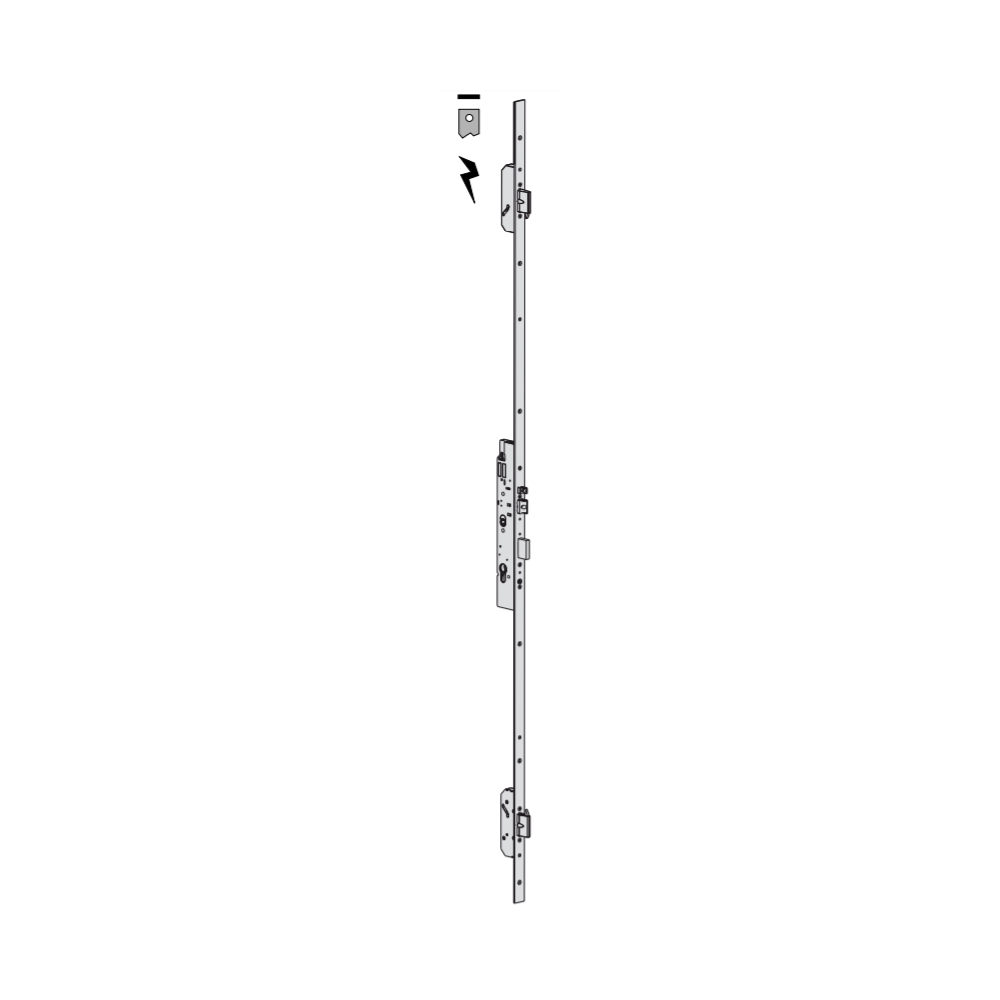

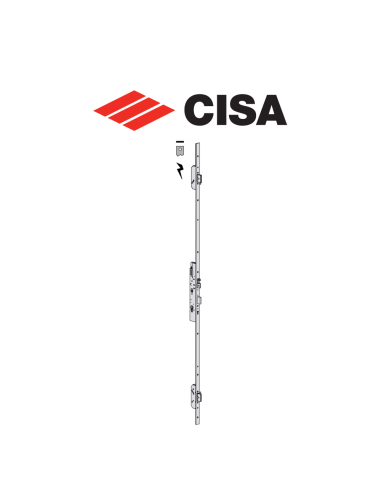

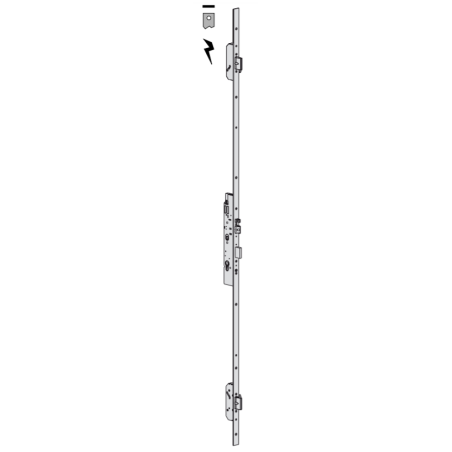

Cisa Multitop Pro multipoint electric lock entry 30 flat front series 19526-30

Cisa Multitop Pro multipoint electric lock entry 30 flat front series 19526-30

Name: Cisa Multitop Pro multipoint electric lock entry 30 flat front series 19526-30
Brand: Cisa
SKU: 1952630
Price: 180.61 EUR
Availability: InStock

€180.61 + taxes

€220.34 Tax included

Electric lock art. 1952630 Multitop Pro multi-point cylinder to be inserted, entry 30, centre distance 85 mm, flat front 24 mm.

Description
Product Details

Cisa Multitop Pro multipoint electric lock entry 30 flat front series 19526-30

The Cisa Multitop Pro multi-point electric lock boasts precise and innovative operation that can be improved with the addition of 2 additional locking points and an anti-drill plate, making this product practically unassailable.

Technical features:

Two mandates
3 locking points
Flat trimmable front 24 × 3 mm in black painted steel h. 2300 mm

- upper shaving width 350 mm

- lower shaving 150 mm
Adjustable latch and piston from 10.5 mm to 16.5 mm
3 side bolts
Nylon head cover caps
Voltage 12V AC CE
Current consumption 3 1 A
Drive device via gear system
Box thickness 15 5 mm
Anti-phasing system
Die-cast metal box with zinc coating
Steel lid with zinc coating
Interchangeable latch with nickel-plated roller and bolt
Provision for 4th and 5th locking point

Included:

Pair of nylon studs art. 0601201
Lock and cylinder fixing screws

Regulations:

Certified according to European standard EN 15685:14
Security: grade 6 (1000 kg lateral push and 600 kg frontal push)
Security: grade 7 (using the 06436 series anti-drill plate)
Suitable for doors certified to EN1627:2011 up to resistance class WK/RC 4 (grade 6) WK/RC (grade 7)

Cisa lock

Dimensions
T	3mm
AND	30

Brand

Reference 1952630

EAN13 8015345998594
