€114.44 + taxes

€139.62 Tax included

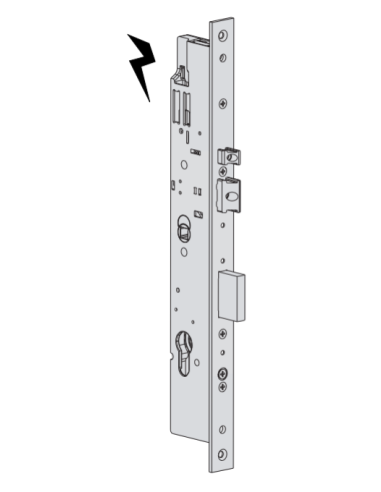

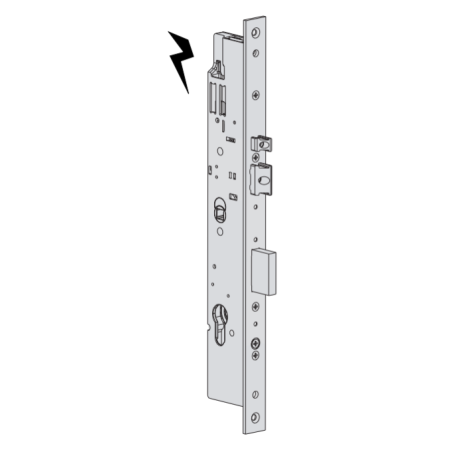

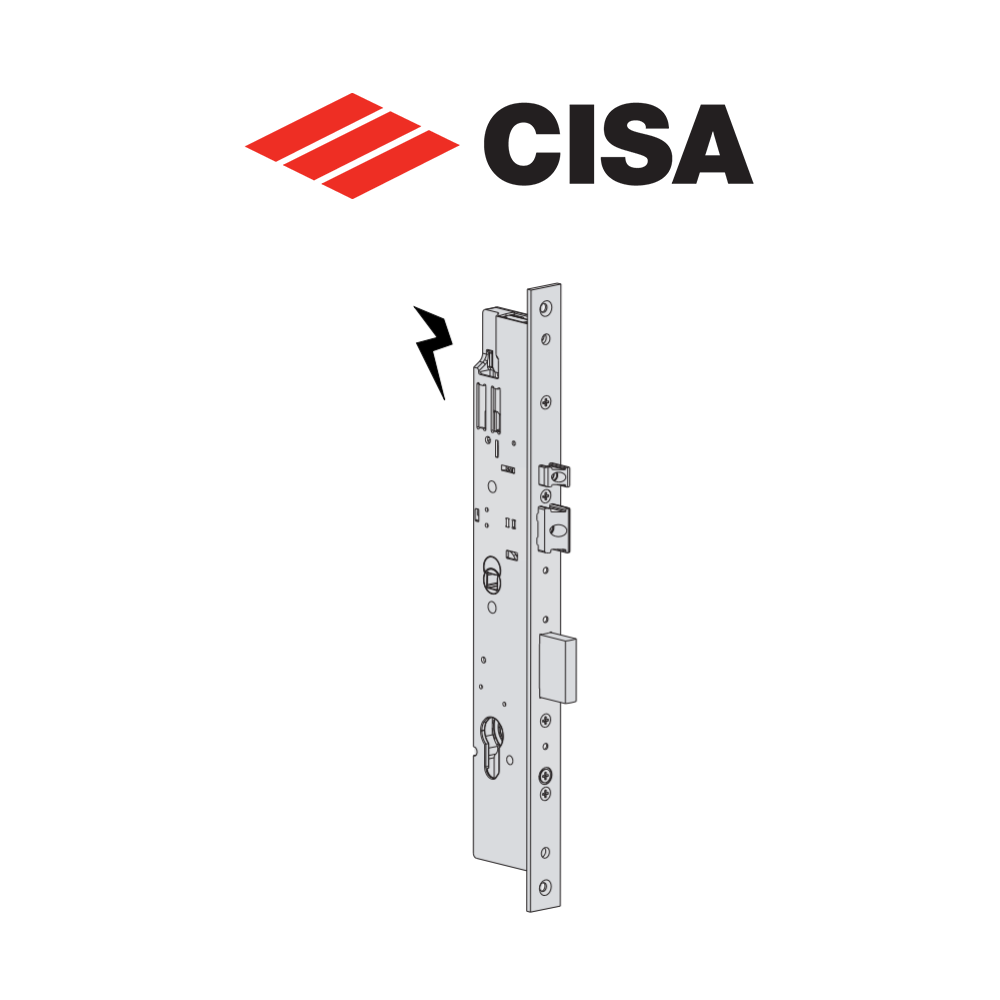

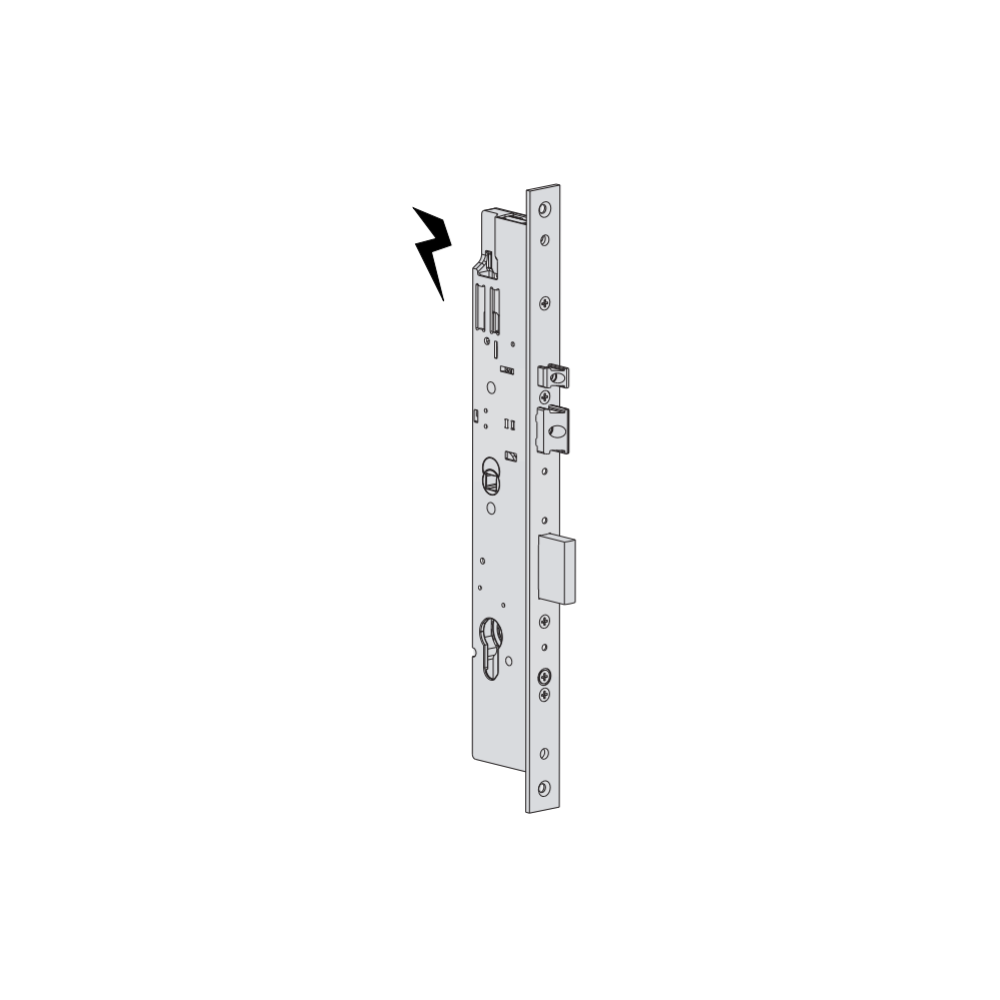

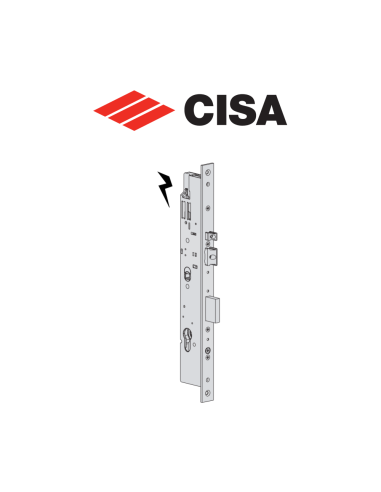

Electric lock art. 1922540 with Multitop Pro ambidextrous cylinder, mortise entry 40 for uprights, 2 throws, 85 mm centre distance, 22 mm front without cylinder.



Cisa Multitop Pro electric cylinder lock entry 40 series 19225-40


Electric lock art. 1922540 with Multitop Pro ambidextrous cylinder, mortise entry 40 for uprights, 2 throws, 85 mm centre distance, 22 mm front without cylinder.


Front 22 × 3 mm stainless steel
Deadbolt and latch
Adjustable self-locking latch and piston from 10.5 mm to 16.5 mm
Voltage 12V AC CE
Current consumption 3 1 A


Technical features:


Drive device via gear system
Box thickness 15 5 mm
Anti-phasing system
Die-cast metal box with zinc coating
Steel lid with zinc coating
Interchangeable latch with nickel-plated roller and bolt
Reversible latch or latch/piston
Provision for additional closures


Included:


Pair of nylon studs art. 0601201
Pair of nylon under-front spacers item 0614165
Threaded pins for fixing extensions
Lock and cylinder fixing screws


Regulations:


Certified according to European standard EN 12209:03
Security: grade 6 (1000 kg lateral push and 600 kg frontal push)
Suitable for doors certified to EN1627:2011 up to resistance class WK/RC 4


Cisa lock




Cisa lock




Dimensions
AND 40
"
1922540
8015345998464
