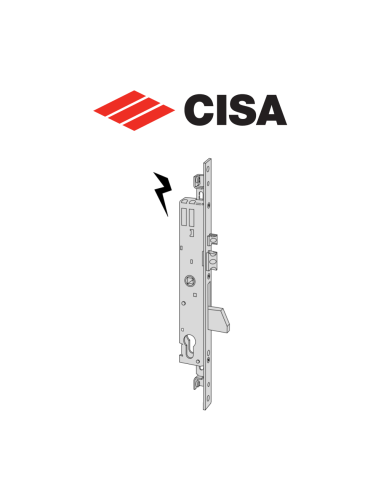

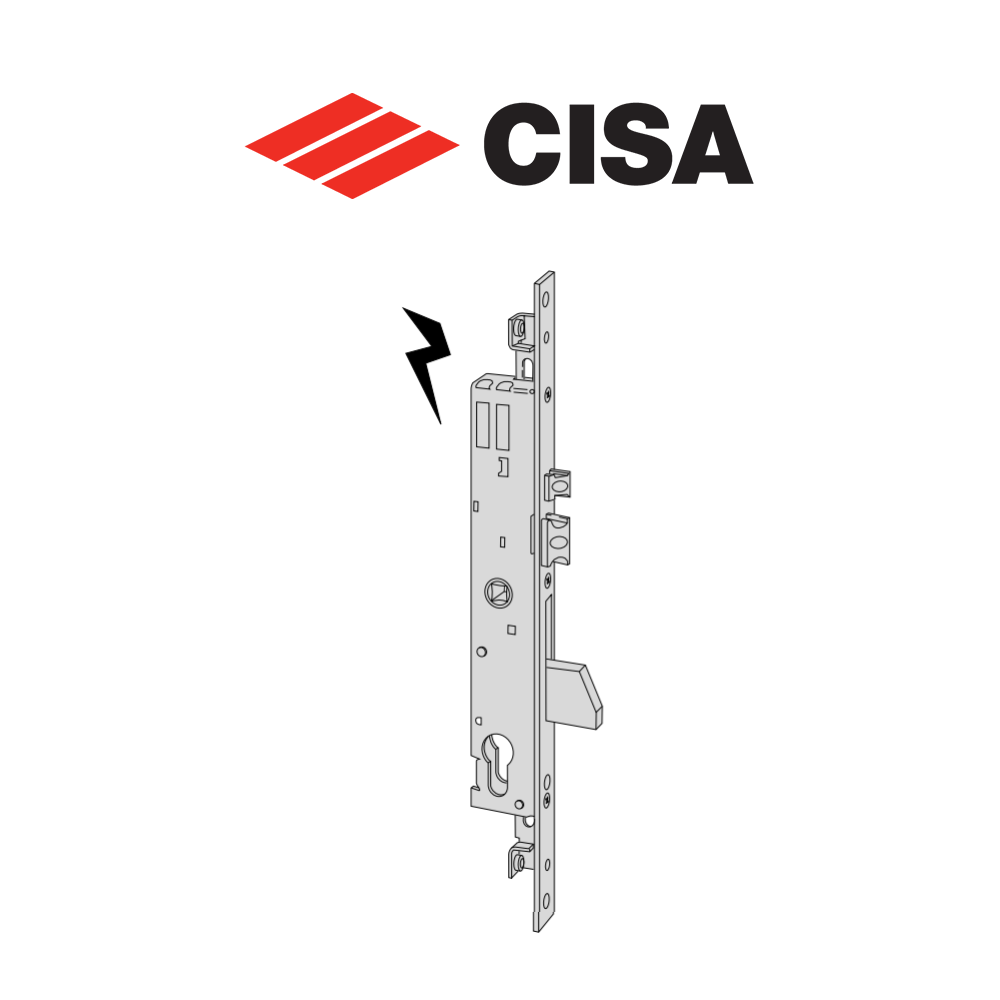

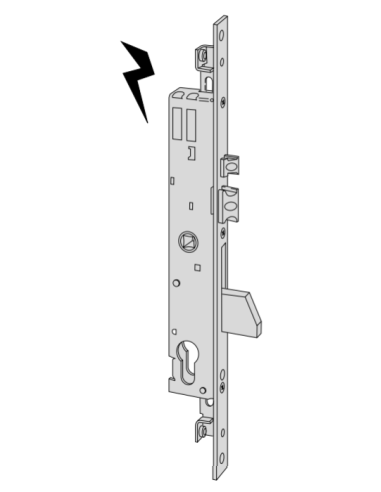

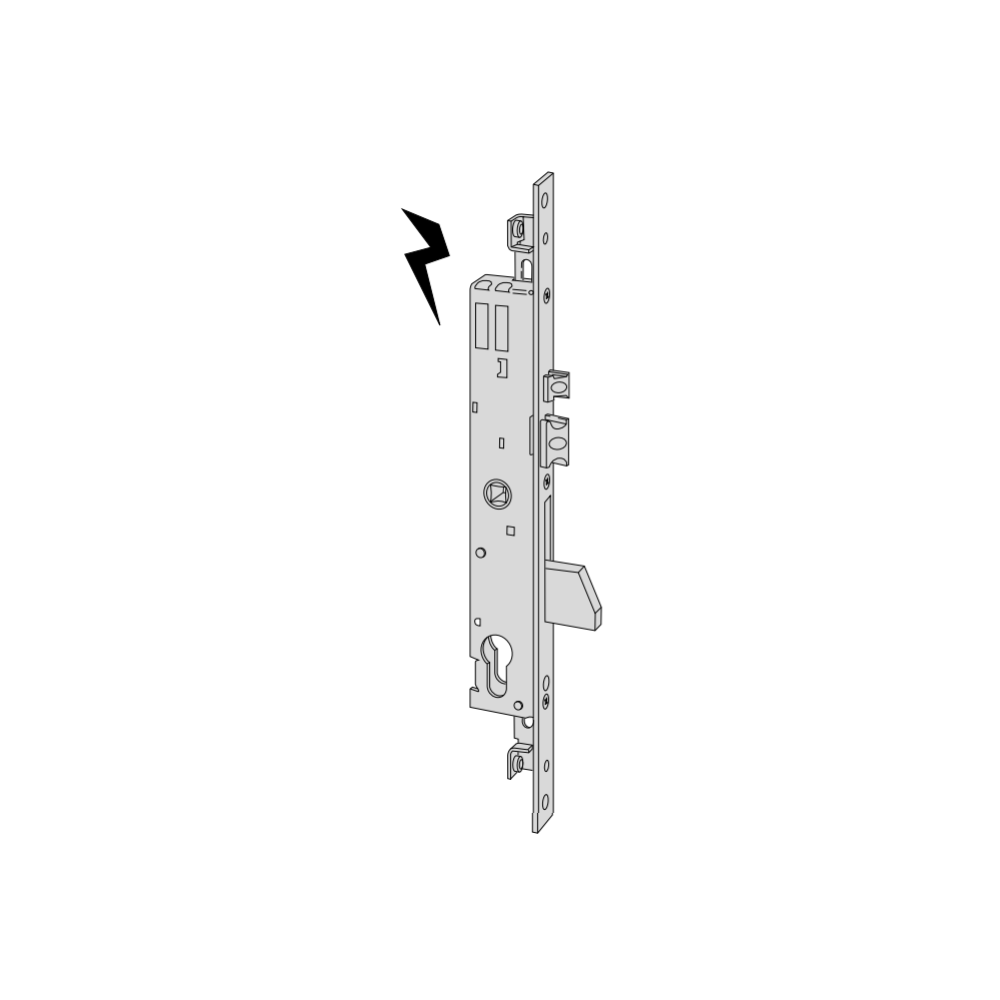

Electric lock art. 1622530 with ambidextrous tilting deadbolt to be inserted, entry 30 for uprights with 85 mm centre distance, 22 mm front without cylinder.



Cisa electric swing bolt lock entry 30 series 16225-30


Electric lock art. 1622530 with ambidextrous tilting deadbolt to be inserted, entry 30 for uprights with 85 mm centre distance, 22 mm front without cylinder.


Deadbolt and latch
Adjustable latch and piston from 10.5 mm to 16.5 mm
Provision for additional closures
Threaded pins for fixing extensions


Technical features:


Steel box with zinc coating
Stainless steel front
Nickel-plated roller bolt latch and hook
Latch or reversible latch/piston (where provided)
Voltage 12V AC CE
Current consumption 3 1 A


Included:


Pair of nylon studs art. 0601201
Pair of nylon under-front spacers item 0614165
Lock and cylinder fixing screws


Regulations:


Certified according to European standard EN 12209:03
Security: grade 3 (500 kg lateral push and 400 kg bottom push)
Suitable for doors certified to EN1627:2011 up to resistance class WK/RC 2


Cisa lock




Cisa lock




Dimensions
AND 30
"
1622530
8015345075233
