€39.46 + taxes

€48.14 Tax included

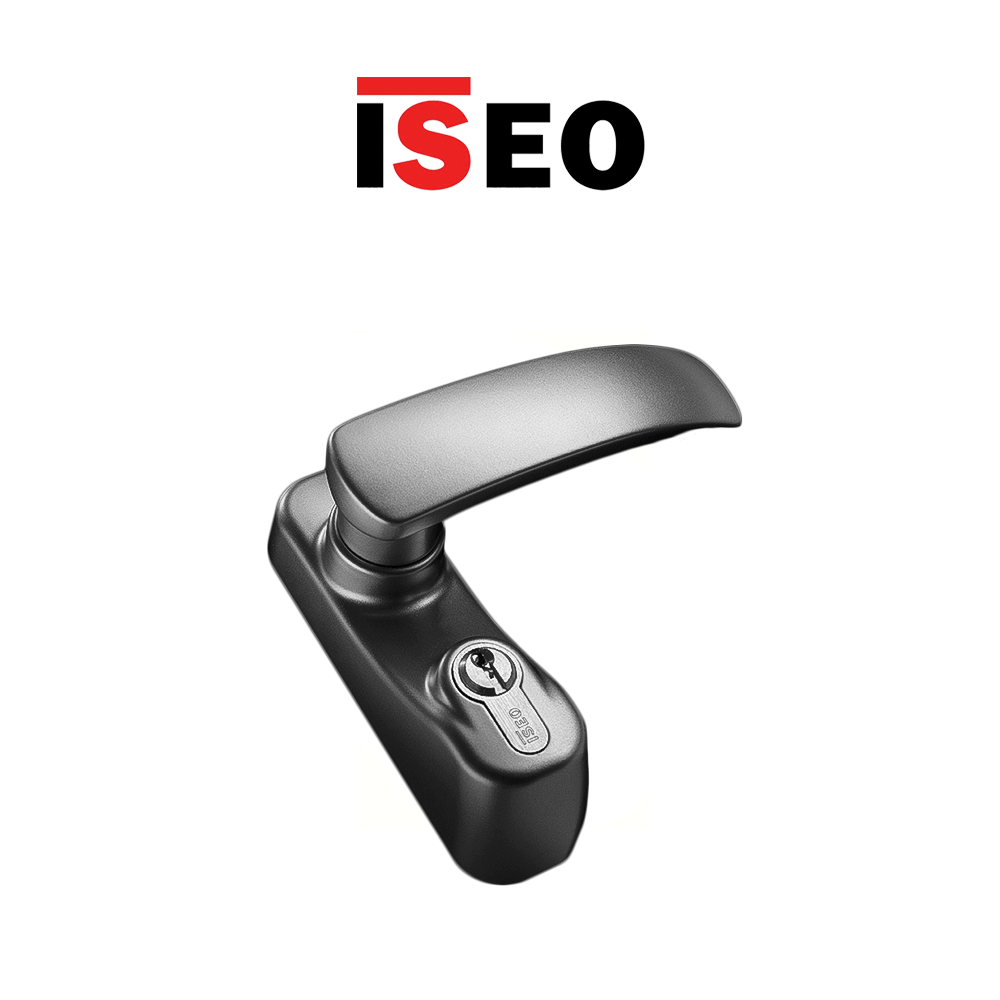

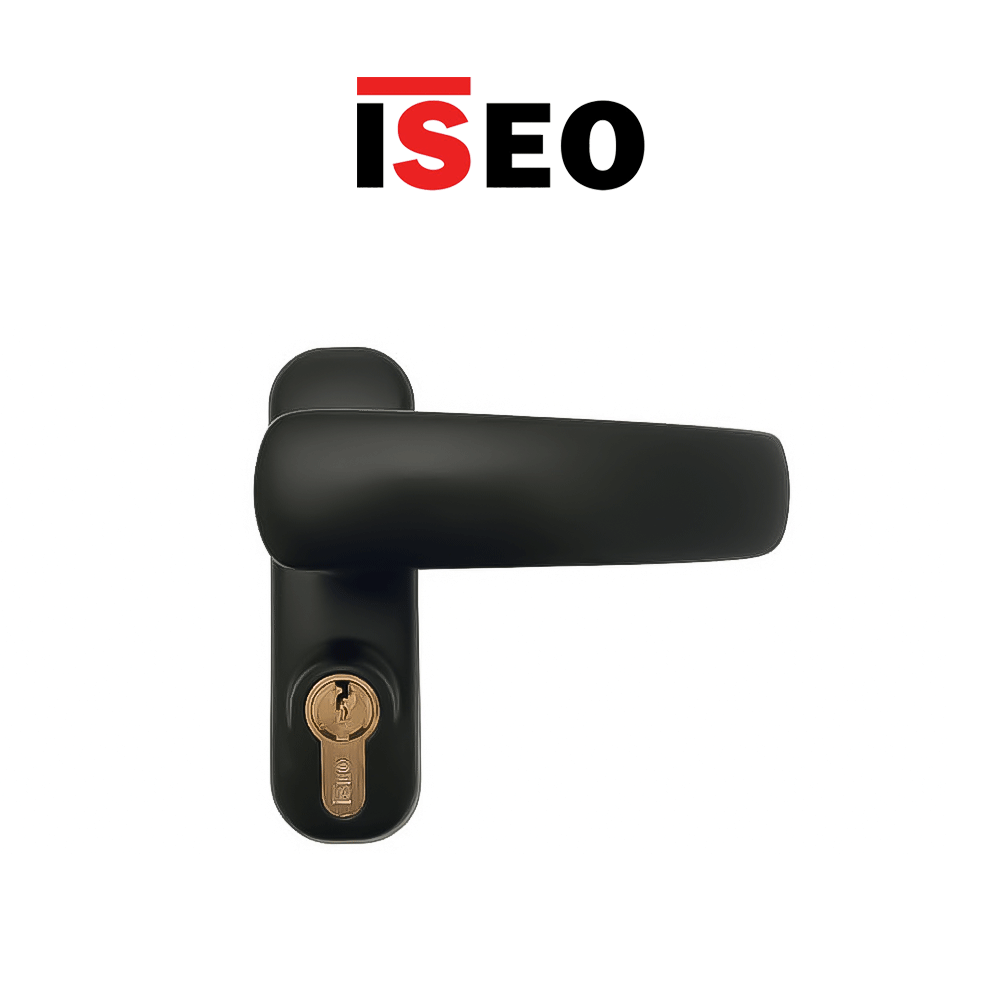

94021005 TRIM Iseo - Black external control for anti-panic devices to be applied


The external Trim controls by Iseo are designed in compliance with the EN 1125 and EN179 standards and can be combined with all ISEO anti-panic and emergency devices to be applied, in all configurations and locking points. In the design of the external controls, the design and aesthetics were not overlooked, enhanced and made even more pleasant by the versions in pvd-inox finish.

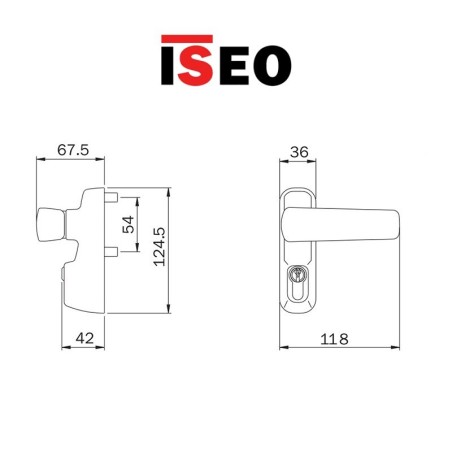

TECHNICAL DRAWING


94021005 TRIM Iseo


TECHNICAL FEATURES


Can be combined with all anti-panic and emergency devices to be applied to 1, 2 and 3 locking points Designed in compliance with EN 1125 and EN179 standards Reversible hand: can be installed on both right and left doors. Can be installed on single and double leaf doors Can be installed on any type of window frame (aluminium, PVC, wood, etc.). Easy to install using 2 screws passing through the door profile. Equipped with a European profile cylinder in the 40 mm size (30-10), which can be integrated with a master key system by simply replacing the cylinder. Painted version BLACK Version with anti-vandalism handle system. This reduces the risk of breakage due to accidental forcing or vandalism. Key extraction function only when command is disabled (9402* series only).

Catalog
Technical Data Sheet

94021005
