LIWIN L35 Slim Wi-Fi Comunello - Electromechanical chain actuator for top-hung and bottom-hung windows

LIWIN L35 Slim Wi-Fi Comunello - Electromechanical chain actuator for top-hung and bottom-hung windows

Name: LIWIN L35 Slim Wi-Fi Comunello - Electromechanical chain actuator for top-hung and bottom-hung windows
Brand: Comunello
SKU: LIWIN-L35-SLIM-WI-FI
Price: 99 EUR
Availability: InStock

€99.00 + taxes

€120.78 Tax included

Select power supply:

230V
24V

Select color:

Black

Black
White
Grey

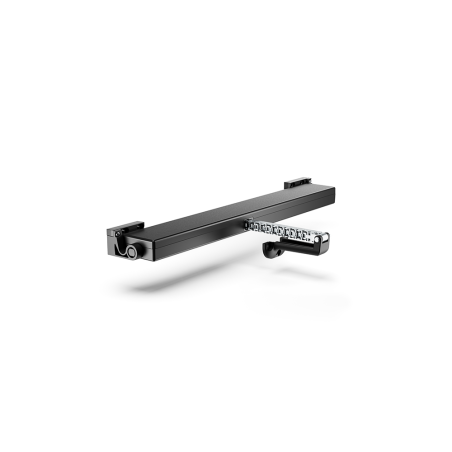

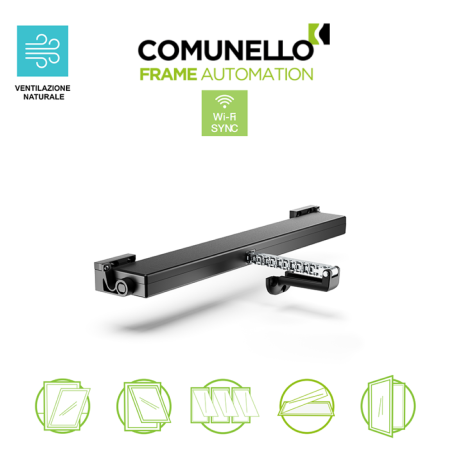

ELECTROMECHANICAL ACTUATOR model LIWIN L35 Slim Wi-Fi

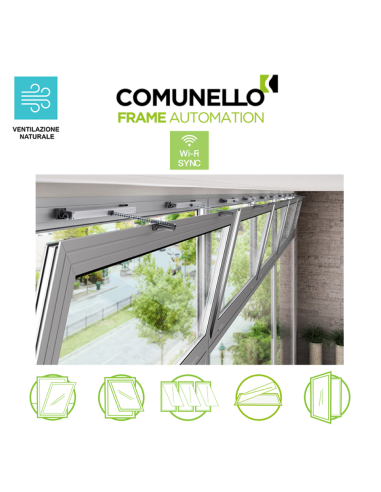

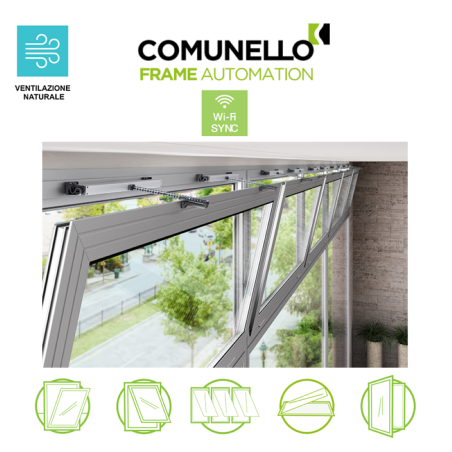

Trust the quality of Comunello for the management of your windows: thanks to its experience in the field of automation, this company has developed unique products such as the LIWIN L35 Slim Wi-Fi, a chain actuator motor for wooden, PVC, aluminum and steel windows. Suitable for vasistas, top-hung, casement, parallel opening, shed, skylights and domes, this innovative and practical model has revolutionized the movement of window frames.

Thanks to its overall small size, LIWIN L35 Slim Wi-Fi is particularly suitable for installations in small spaces.

The high quality and robustness of the double-link chain ensures maximum force transmission in both traction and push.

TECHNICAL DATA

FORCE

The LIWIN L35 Slim - Wi-Fi series actuators have a maximum push and pull force of 350N. Thanks to the synchronization function, a total maximum force of up to 1960N can be achieved.

QR Code SYNC

Synchronization of multiple actuators, Parameter adjustment, Recording and Diagnostics in real time through a simple QR Code scan.

TECHNOLOGY

The new Wi-Fi technology, in addition to providing the possibility of making very precise adjustments via the Mowin App, allows the synchronisation of up to 8 LIWIN L35 for the possible installation of multiple actuators in a single window or on systems where high force is required.

DIAGNOSTICS

The Mowin App allows both the recording of the latest maneuvers with any reported anomalies, and to perform real-time diagnostics to identify any malfunction errors. The actuator is also equipped with a LED capable of signaling if there are any anomalies.
