603/3/MOT Antipanic - Motorized panic bar with integrated bar
603/3/MOT Antipanic - Motorized panic bar with integrated bar
603/3/MOT Antipanic - Motorized panic bar with integrated bar
603/3/MOT Antipanic - Motorized panic bar with integrated bar

603/3/MOT Antipanic - Motorized panic bar with integrated bar

€328.57 + taxes

€400.86 Tax included
Select the finish:
    Black/Red
  • Black/Red
Select the width of the bar:
  • 1170 mm
  • 1300 mm

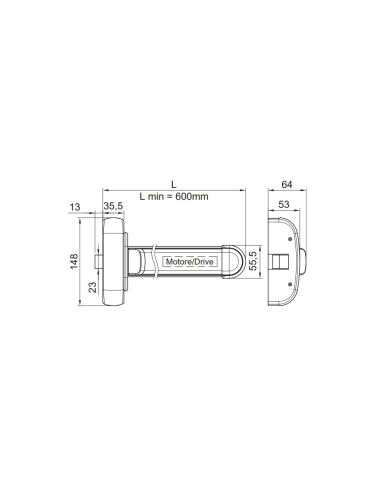

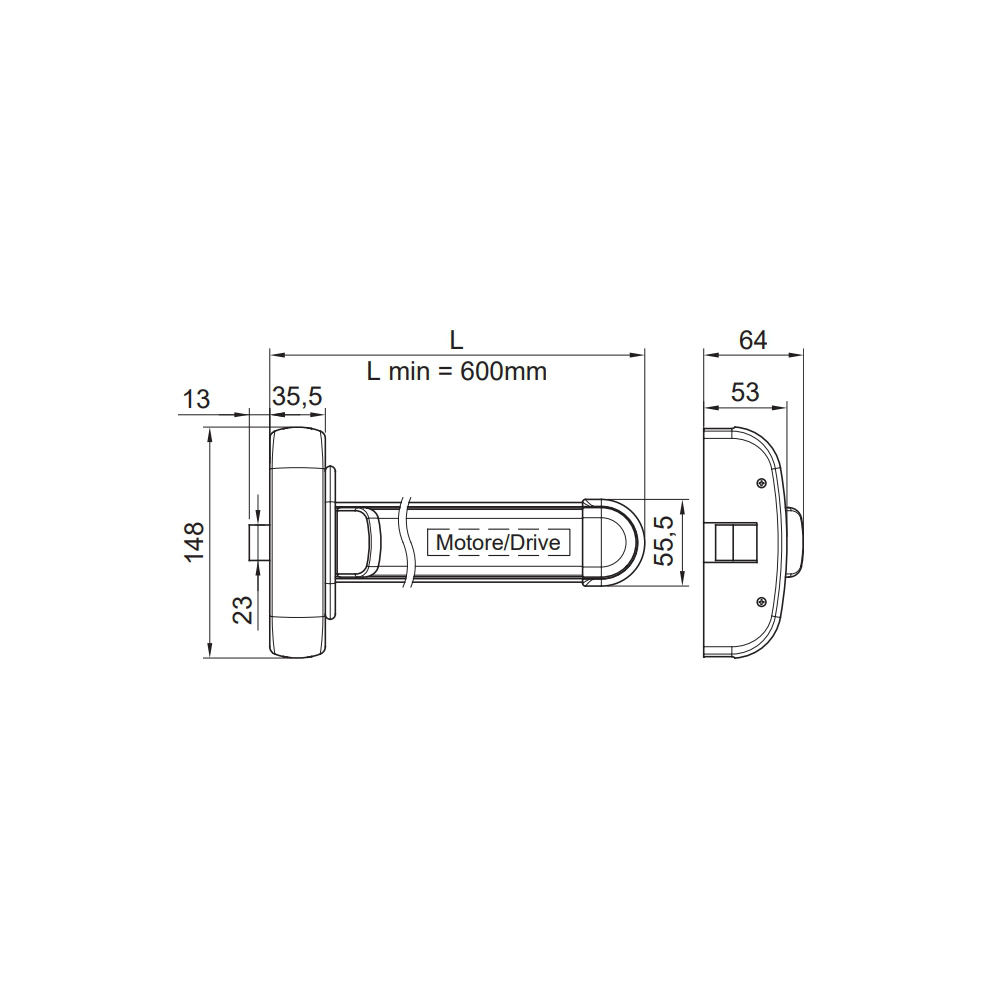

TECHNICAL DRAWING


Antipanic 603/3/MOT

AVAILABLE VARIANTS


TECHNICAL FEATURES


 Anti-panic handle with integrated push bar to be applied to 1-2-3 locking points

 With motorized and mechanical release

 Timed opening adjustable from 3 to 20 seconds

 Possibility of electric or mechanical day stop

 Can be cut up to 700 mm in length

 Possibility to manage and program openings using an external switch or timer

 Acoustic opening signal

 Reversible modular

 Painted steel headphones

 Aluminum casing and bar

 Panic bar push bar module series 600 motorized

 Power supply voltage: 12-20V AC - 1A, 12-30V DC - 1A

 Length: 1170 - 1300 mm

 Classification EN 1125:2008: 37701422BA
603/3NR/MOT
